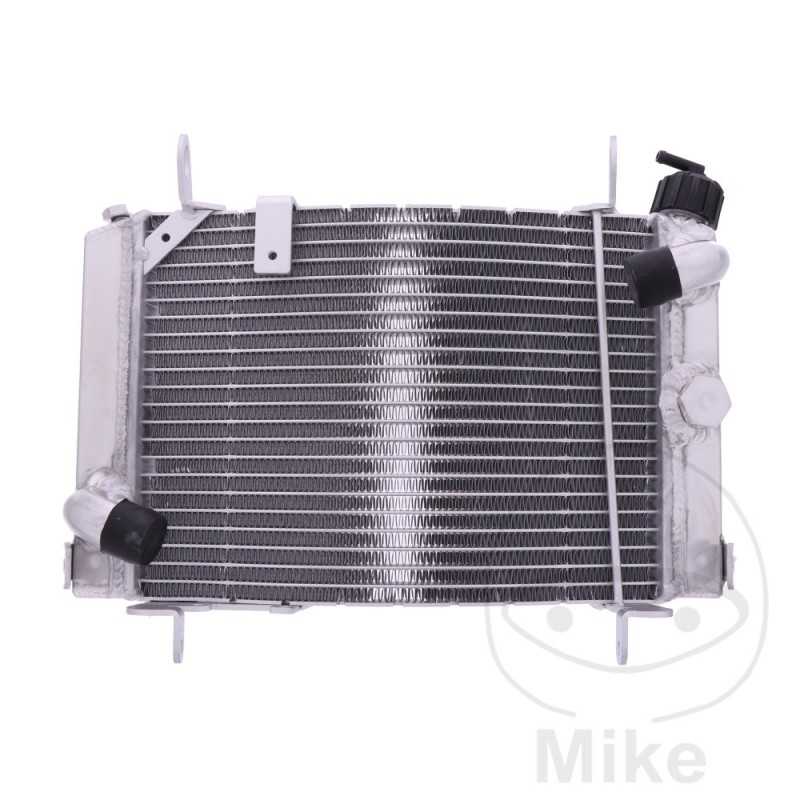

JMP Water radiator 776.03.63

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM Enduro 690 LC4 34 CV, 25 kw 1cil. - Bastidores: --- 2008-2010
KTM Enduro 690 LC4 63 CV, 46,3 kw 1cil. - Bastidores: --- 2008-2010
KTM Enduro 690 R LC4 34 CV, 25 kw 1cil. - Bastidores: --- 2009-2012
KTM Enduro 690 R LC4 41 CV, 30 kw 1cil. - Bastidores: --- 2013
KTM Enduro 690 R LC4 63 CV, 46,3 kw 1cil. - Bastidores: --- 2009-2011
KTM Enduro 690 R LC4 67 CV, 49 kw 1cil. - Bastidores: --- 2012-2013
KTM Enduro 690 R LC4 ABS 41 CV, 30 kw 1cil. - Bastidores: --- 2014-2017
KTM Enduro 690 R LC4 ABS 44 CV, 32 kw 1cil. - Bastidores: --- 2019
KTM Enduro 690 R LC4 ABS 67 CV, 49 kw 1cil. - Bastidores: --- 2014-2017
KTM Enduro 690 R LC4 ABS 75 CV, 55 kw 1cil. - Bastidores: --- 2019
KTM SMC 690 LC4 Supermoto 34 CV, 25 kw 1cil. - Bastidores: --- 2008-2011
KTM SMC 690 LC4 Supermoto 63 CV, 46,3 kw 1cil. - Bastidores: --- 2008-2011
KTM SMC 690 R LC4 Supermoto 34 CV, 25 kw 1cil. - Bastidores: --- 2012
KTM SMC 690 R LC4 Supermoto 41 CV, 30 kw 1cil. - Bastidores: --- 2013
KTM SMC 690 R LC4 Supermoto 67 CV, 49 kw 1cil. - Bastidores: --- 2012-2013
KTM SMC 690 R LC4 Supermoto ABS 41 CV, 30 kw 1cil. - Bastidores: --- 2014-2017
KTM SMC 690 R LC4 Supermoto ABS 44 CV, 32 kw 1cil. - Bastidores: --- 2019-2020
KTM SMC 690 R LC4 Supermoto ABS 67 CV, 49 kw 1cil. - Bastidores: --- 2014-2017
KTM SMC 690 R LC4 Supermoto ABS 75 CV, 55 kw 1cil. - Bastidores: --- 2019-2020
