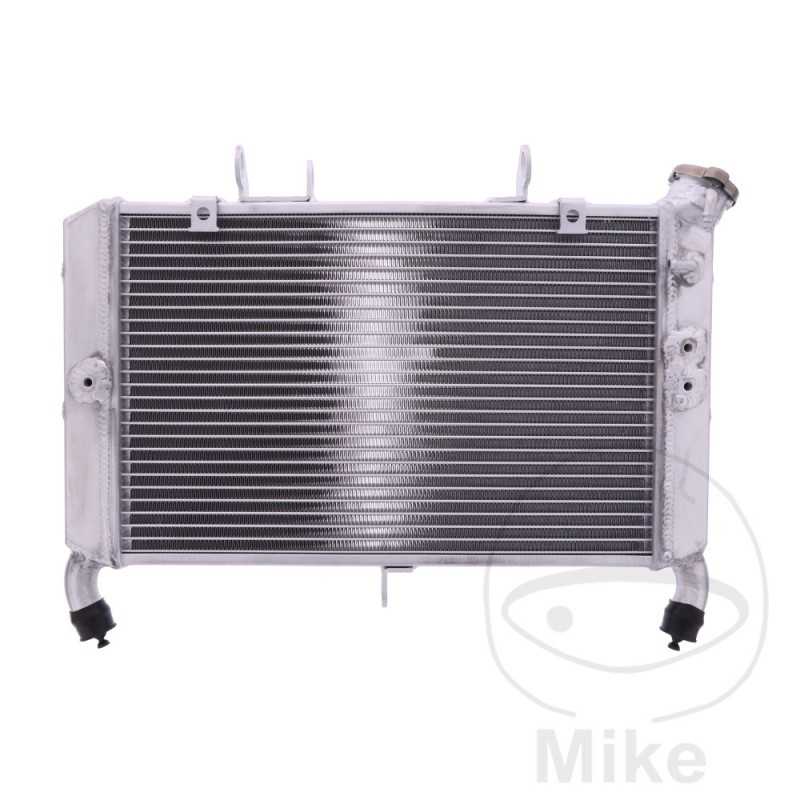

JMP Water radiator 776.03.51

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha MT09 850 A ABS 115 CV, 85 kw 3cil. RN435 BS21 Bastidores: RN435 henceforth00301-- 2017
Yamaha MT09 850 A ABS 115 CV, 85 kw 3cil. RN435 BS29 Bastidores: RN435 henceforth10870-- 2018
Yamaha MT09 850 A ABS 115 CV, 85 kw 3cil. RN435 BS2G Bastidores: RN435 henceforth18860-- 2019
Yamaha MT09 850 A ABS 115 CV, 85 kw 3cil. RN435 BS2T Bastidores: RN435 henceforth25459-- 2020
Yamaha MT09 850 SP A ABS 115 CV, 85 kw 3cil. RN43T B6C1 Bastidores: RN43T henceforth00301-- 2018-2020
Yamaha MXT 850 GT Niken ABS 115 CV, 85 kw 3cil. RN584 B5B1 Bastidores: RN584 henceforth00301-- 2019
Yamaha MXT 850 GT Niken ABS 115 CV, 85 kw 3cil. RN584 B5B9 Bastidores: RN584 henceforth01699-- 2020
Yamaha MXT 850 GT Niken ABS MXT850-D 115 CV, 85 kw 3cil. RN584 B5B9 Bastidores: RN584 henceforth01699-- 2021-2022
Yamaha MXT 850 Niken ABS 115 CV, 85 kw 3cil. RN581 BD51 Bastidores: RN581 henceforth00323-- 2018-2019
Yamaha MXT 850 Niken ABS 115 CV, 85 kw 3cil. RN581 BD5B Bastidores: RN581 henceforth02252-- 2020
Yamaha MXT 850 Niken ABS MTX850 115 CV, 85 kw 3cil. RN581 BD5B Bastidores: RN581 henceforth02252-- 2021-2022
Yamaha Tracer 900 850 GT MTT850D ABS 115 CV, 85 kw 3cil. RN575 B1J1 Bastidores: RN575 henceforth00301-- 2018
Yamaha Tracer 900 850 GT MTT850D ABS 115 CV, 85 kw 3cil. RN575 B1J8 Bastidores: RN575 henceforth06998-- 2019
Yamaha Tracer 900 850 GT MTT850-D ABS 115 CV, 85 kw 3cil. RN575 B1JD Bastidores: RN575 henceforth17353-- 2020
Yamaha Tracer 900 850 MT09TRA ABS 115 CV, 85 kw 3cil. RN29F 2SC1 Bastidores: RN29F henceforth00301-- 2015
Yamaha Tracer 900 850 MT09TRA ABS 115 CV, 85 kw 3cil. RN29F 2SC9 Bastidores: RN29F henceforth00360-- 2015
Yamaha Tracer 900 850 MT09TRA ABS 115 CV, 85 kw 3cil. RN29F 2SCC Bastidores: RN29F henceforth10727-- 2016
Yamaha Tracer 900 850 MT09TRA ABS 115 CV, 85 kw 3cil. RN438 2SCL Bastidores: RN438 henceforth00301-- 2017
Yamaha Tracer 900 850 MTT850 ABS 115 CV, 85 kw 3cil. RN571 B5C1 Bastidores: RN571 henceforth00301-- 2018
Yamaha Tracer 900 850 MTT850 ABS 115 CV, 85 kw 3cil. RN571 B5C9 Bastidores: RN571 henceforth06902-- 2019
Yamaha Tracer 900 850 MTT850 ABS 115 CV, 85 kw 3cil. RN571 B5CF Bastidores: RN571 henceforth10443-- 2020
Yamaha XSR 900 A Abarth ABS 115 CV, 85 kw 3cil. RN431 B90N Bastidores: RN431 henceforth08902-- 2017-2019
Yamaha XSR 900 A ABS 115 CV, 85 kw 3cil. RN431 B901 Bastidores: RN431 henceforth00301-- 2016-2017
Yamaha XSR 900 A ABS 115 CV, 85 kw 3cil. RN43P B90R Bastidores: RN43P henceforth00301-- 2018
Yamaha XSR 900 A ABS 115 CV, 85 kw 3cil. RN43P BAE1 Bastidores: RN43P henceforth02147-- 2019
Yamaha XSR 900 A ABS 115 CV, 85 kw 3cil. RN43P BAE8 Bastidores: RN43P henceforth03771-- 2020
Yamaha XSR 900 A ABS MTM850 115 CV, 85 kw 3cil. RN43P BAE8 Bastidores: RN43P henceforth03771-- 2021
Yamaha XSR 900 A Anniversary ABS 115 CV, 85 kw 3cil. RN431 B908 Bastidores: RN431 henceforth00401-- 2016
Yamaha XSR 900 A Black ABS 115 CV, 85 kw 3cil. RN43P BAED Bastidores: RN43P henceforth03611-- 2020
Yamaha XSR 900 A Black ABS MTM850 115 CV, 85 kw 3cil. RN43P BAED Bastidores: RN43P henceforth03611-- 2021
