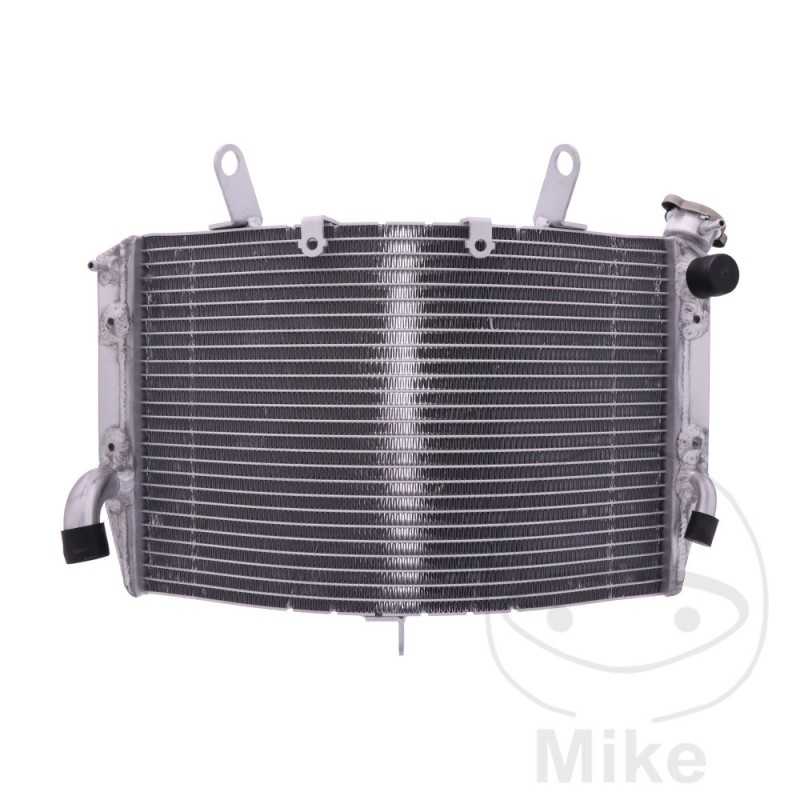

JMP Water radiator 776.03.50

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha YZF-R1 1000 172 CV, 126 kw 4cil. RN121 5VY1 Bastidores: RN121 henceforth00301-- 2004
Yamaha YZF-R1 1000 172 CV, 126 kw 4cil. RN121 5VY7 Bastidores: RN121 henceforth16418-- 2005
Yamaha YZF-R1 1000 175 CV, 129 kw 4cil. RN126 5VYE Bastidores: RN126 henceforth00301-- 2006
Yamaha YZF-R1 1000 175 CV, 129 kw 4cil. RN126 5VYR Bastidores: RN126 henceforth03661-- 2006
Yamaha YZF-R1 1000 SP 175 CV, 129 kw 4cil. RN129 4B11 Bastidores: RN129 henceforth00301-- 2006
