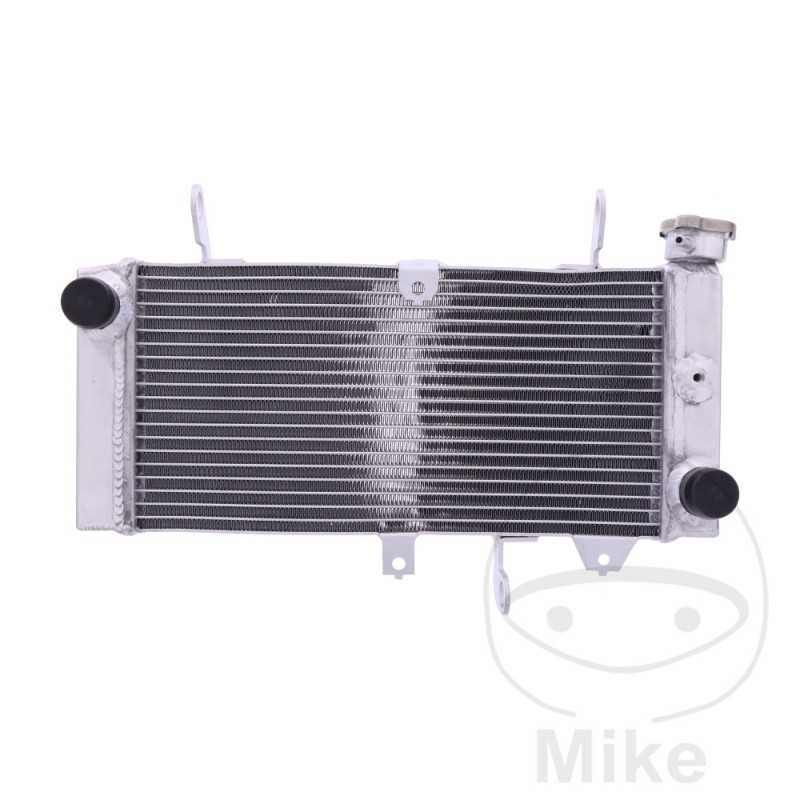

JMP Water radiator 776.03.47

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki SV 650 A ABS 73 CV, 54 kw 2cil. CX163B M2 Bastidores: CX163B-N7100001-CX163B-N7999999 2022
Suzuki SV 650 A ABS 73 CV, 54 kw 2cil. CX163C M1 Bastidores: CX163C-M7100001-CX163C-M7999999 2021
Suzuki SV 650 A ABS 76 CV, 56 kw 2cil. CX1236 L7 Bastidores: CX1236-H0100001-CX1236-H0199999 2016-2017
Suzuki SV 650 A ABS 76 CV, 56 kw 2cil. CX1236 L8 Bastidores: CX1236-J0100001-CX1236-J0199999 2018
Suzuki SV 650 A ABS 76 CV, 56 kw 2cil. CX123C L9 Bastidores: CX123C-K7100001-CX123C-K7199999 2019
Suzuki SV 650 A ABS 76 CV, 56 kw 2cil. CX123C M0 Bastidores: CX123C-L7100001-CX123C-L7199999 2020
Suzuki SV 650 AU ABS 48 CV, 35 kw 2cil. CX124C L9 Bastidores: CX124C-K7100001-CX124C-K7199999 2019
Suzuki SV 650 AU ABS 48 CV, 35 kw 2cil. CX124C M0 Bastidores: CX124C-L7100001-CX124C-L7199999 2020
Suzuki SV 650 AU ABS 48 CV, 35 kw 2cil. CX2436 L7 Bastidores: CX2436-H0100001-CX2436-H0199999 2016-2017
Suzuki SV 650 AU ABS 48 CV, 35 kw 2cil. CX2436 L8 Bastidores: CX2436-J0100001-CX2436-J0199999 2018
Suzuki SV 650 AU ABS 48 CV, 35 kw 2cil. CX273C M1 Bastidores: CX273C-M7100001-CX273C-M7999999 2021
Suzuki SV 650 AU ABS 48 CV, 35 kw 2cil. CX273C M2 Bastidores: CX273C-N7100001-CX273C-N7999999 2022
Suzuki SV 650 XA ABS 73 CV, 54 kw 2cil. - M2 Bastidores: --- 2022
Suzuki SV 650 XA ABS 73 CV, 54 kw 2cil. CX164C M1 Bastidores: CX164C-M7100001-CX164C-M7999999 2021
Suzuki SV 650 XA ABS 76 CV, 56 kw 2cil. CX1246 L8 Bastidores: CX1246-J0100001-CX1246-J0199999 2018
Suzuki SV 650 XA ABS 76 CV, 56 kw 2cil. CX124C L9 Bastidores: CX124C-K7100001-CX124C-K7199999 2019
Suzuki SV 650 XA ABS 76 CV, 56 kw 2cil. CX124C M0 Bastidores: CX124C-L7100001-CX124C-L7199999 2020
Suzuki SV 650 XAU ABS 48 CV, 35 kw 2cil. - M2 Bastidores: --- 2022
Suzuki SV 650 XAU ABS 48 CV, 35 kw 2cil. CX2446 L8 Bastidores: CX2446-J0100001-CX2446-J0199999 2018
Suzuki SV 650 XAU ABS 48 CV, 35 kw 2cil. CX244C L9 Bastidores: CX244C-K7100001-CX244C-K7199999 2019
Suzuki SV 650 XAU ABS 48 CV, 35 kw 2cil. CX244C M0 Bastidores: CX244C-L7100001-CX244C-L7199999 2020
Suzuki SV 650 XAU ABS 48 CV, 35 kw 2cil. CX274C M1 Bastidores: CX274C-M7100001-CX274C-M7999999 2021
