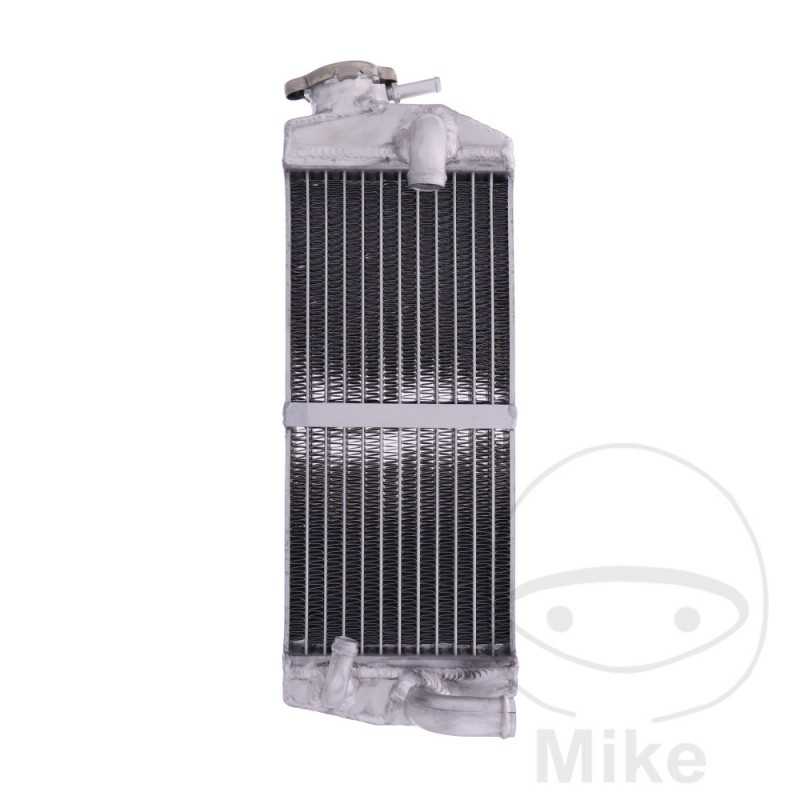

JMP Water radiator 776.03.04

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Beta RR 250 2T Enduro 1cil. ZD3E3100 Bastidores: ZD3E3100 henceforthG0601123-ZD3E3100 henceforthG0601218 2017
Beta RR 250 2T Enduro 1cil. ZD3E7023 Bastidores: ZD3E7023 henceforthH0100001-ZD3E7023-XH0100362 2017
Beta RR 250 2T Enduro 10,2 CV, 7,5 kw 1cil. ZD3E3043 Bastidores: ZD3E3043 henceforthF0620107-ZD3E3043-XF0620163 2015
Beta RR 250 2T Enduro 10,2 CV, 7,5 kw 1cil. ZD3E3043 Bastidores: ZD3E3043 henceforthG0620206-ZD3E3043-XG0620293 2016
Beta RR 250 2T Enduro 10,2 CV, 7,5 kw 1cil. ZD3E3100 Bastidores: ZD3E3100 henceforthE0600509-ZD3E3100 henceforthG0601219 2015
Beta RR 250 2T Enduro 10,2 CV, 7,5 kw 1cil. ZD3E3100 Bastidores: ZD3E3100 henceforthF0600762-ZD3E3100 henceforthG0601122 2016
Beta RR 250 2T Enduro 10,9 CV, 8 kw 1cil. ZD3E3 Bastidores: --- 2013-2014
Beta RR 250 2T Enduro Oilmix 1cil. ZD3E702C Bastidores: ZD3E702C henceforthJ0100375-ZD3E702C-XJ0100836 2018
Beta RR 250 2T Enduro Oilmix 1cil. ZD3E702C Bastidores: ZD3E702C henceforthK0100863-ZD3E702C-XK0101230 2019
Beta RR 250 2T Racing 1cil. ZD3E7023 Bastidores: ZD3E7023 henceforthH0150008-ZD3E7023-XH0150226 2017
Beta RR 250 2T Racing 1cil. ZD3E702C Bastidores: ZD3E702C henceforthJ0150242-ZD3E702C-XJ0150488 2018
Beta RR 250 2T Racing 1cil. ZD3E702C Bastidores: ZD3E702C henceforthK0150498-ZD3E702C-XK0150699 2019
Beta RR 250 2T Racing 10,2 CV, 7,5 kw 1cil. ZD3E3043 Bastidores: ZD3E3043 henceforthF0620155-ZD3E3043-XF0620194 2015
Beta RR 250 2T Racing 10,2 CV, 7,5 kw 1cil. ZD3E3043 Bastidores: ZD3E3043 henceforthG0620254-ZD3E3043-XG0620276 2016
Beta RR 250 2T Racing 10,2 CV, 7,5 kw 1cil. ZD3E3100 Bastidores: ZD3E3100 henceforthE0650096-ZD3E3100 henceforthF0650277 2015
Beta RR 250 2T Racing 10,2 CV, 7,5 kw 1cil. ZD3E3100 Bastidores: ZD3E3100 henceforthF0650278-ZD3E3100 henceforthG0650456 2016
Beta RR 250 2T Racing 10,9 CV, 8 kw 1cil. ZD3E3 Bastidores: --- 2014
Beta RR 300 2T Enduro 1cil. ZD3E3110 Bastidores: ZD3E3110 henceforthG0702905-ZD3E3110 henceforthG0703144 2017
Beta RR 300 2T Enduro 1cil. ZD3E7033 Bastidores: ZD3E7033 henceforthH0200002-ZD3E7033-XH0201416 2017
Beta RR 300 2T Enduro 12,2 CV, 9 kw 1cil. ZD3E3 Bastidores: --- 2013-2014
Beta RR 300 2T Enduro 12,2 CV, 9 kw 1cil. ZD3E3053 Bastidores: ZD3E3053 henceforthF0720349-ZD3E3053-XF0720746 2015
Beta RR 300 2T Enduro 12,2 CV, 9 kw 1cil. ZD3E3053 Bastidores: ZD3E3053 henceforthG0720823-ZD3E3053-XG0721221 2016
Beta RR 300 2T Enduro 12,2 CV, 9 kw 1cil. ZD3E3110 Bastidores: ZD3E3110 henceforthE0701301-ZD3E3110 henceforthF0702116 2015
Beta RR 300 2T Enduro 12,2 CV, 9 kw 1cil. ZD3E3110 Bastidores: ZD3E3110 henceforthF0702117-ZD3E3110 henceforthG0702904 2016
Beta RR 300 2T Enduro Holcombe Replica Oilmix 1cil. ZD3E703C Bastidores: ZD3E703C henceforthK0260014-ZD3E703C-XK0260201 2019
Beta RR 300 2T Enduro Oilmix 1cil. ZD3E703C Bastidores: ZD3E703C henceforthJ0201429-ZD3E703C-XJ0203172 2018
Beta RR 300 2T Enduro Oilmix 1cil. ZD3E703C Bastidores: ZD3E703C henceforthK0203179-ZD3E703C-XK0204694 2019
Beta RR 300 2T Racing 1cil. ZD3E7033 Bastidores: ZD3E7033 henceforthH0250009-ZD3E7033-XH0250972 2017
Beta RR 300 2T Racing 1cil. ZD3E703C Bastidores: ZD3E703C henceforthJ0250985-ZD3E703C-XJ0253487 2018
Beta RR 300 2T Racing 1cil. ZD3E703C Bastidores: ZD3E703C henceforthK0252043-ZD3E703C-XK0252826 2019
Beta RR 300 2T Racing 12,2 CV, 9 kw 1cil. ZD3E3 Bastidores: --- 2013-2014
Beta RR 300 2T Racing 12,2 CV, 9 kw 1cil. ZD3E3053 Bastidores: ZD3E3053 henceforthF0720464-ZD3E3053-XF0720813 2015
Beta RR 300 2T Racing 12,2 CV, 9 kw 1cil. ZD3E3053 Bastidores: ZD3E3053 henceforthG0720997-ZD3E3053-XG0721266 2016
Beta RR 300 2T Racing 12,2 CV, 9 kw 1cil. ZD3E3110 Bastidores: ZD3E3110 henceforthE0750309-ZD3E3110 henceforthF0750865 2015
Beta RR 300 2T Racing 12,2 CV, 9 kw 1cil. ZD3E3110 Bastidores: ZD3E3110 henceforthF0750866-ZD3E3110 henceforthG0751374 2016
