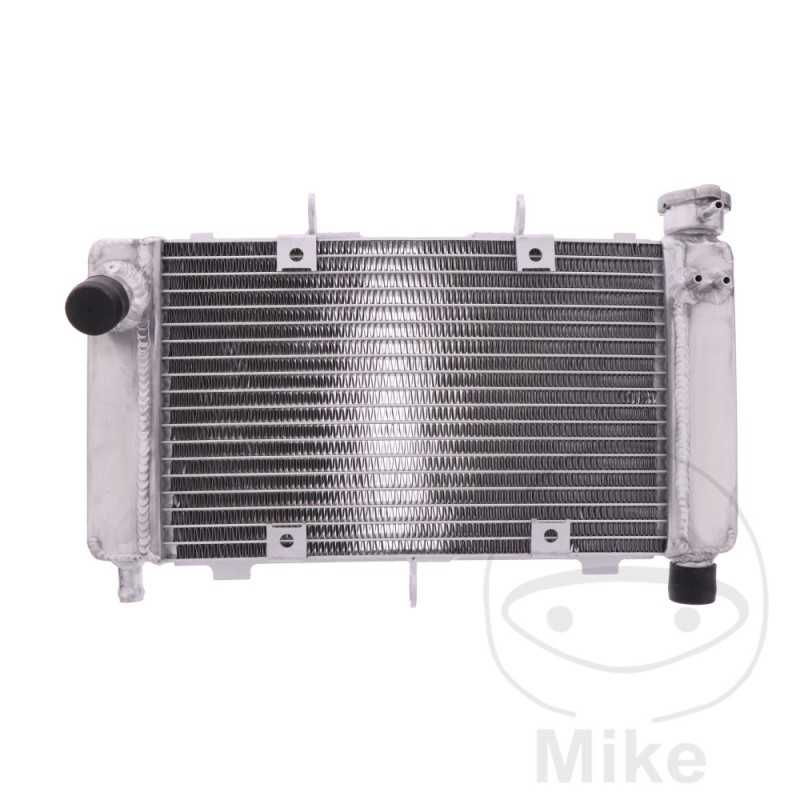

JMP Water radiator 776.02.77

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha FZ6 600 N 98 CV, 72 kw 4cil. RJ074 1B31 Bastidores: RJ074 henceforth00301-- 2004
Yamaha FZ6 600 N 98 CV, 72 kw 4cil. RJ074 1B33 Bastidores: RJ074 henceforth17490-- 2005
Yamaha FZ6 600 N 98 CV, 72 kw 4cil. RJ074 1B37 Bastidores: RJ074 henceforth33829-- 2006
Yamaha FZ6 600 N 98 CV, 72 kw 4cil. RJ074 1B3B Bastidores: RJ074 henceforth33649-- 2006
Yamaha FZ6 600 NS 98 CV, 72 kw 4cil. RJ074 1B35 Bastidores: RJ074 henceforth17345-- 2005
Yamaha FZ6 600 NS 98 CV, 72 kw 4cil. RJ074 1B39 Bastidores: RJ074 henceforth33749-- 2006
Yamaha FZ6 600 S Fazer 98 CV, 72 kw 4cil. RJ071 5VX1 Bastidores: RJ071 henceforth00301-- 2004
Yamaha FZ6 600 S Fazer 98 CV, 72 kw 4cil. RJ071 5VX6 Bastidores: RJ071 henceforth23824-- 2005
Yamaha FZ6 600 S Fazer 98 CV, 72 kw 4cil. RJ071 5VXB Bastidores: RJ071 henceforth47010-- 2006
Yamaha FZ6 600 SA Fazer ABS 98 CV, 72 kw 4cil. RJ076 4P51 Bastidores: RJ076 henceforth00301-- 2006
Yamaha FZ6 600 SA Fazer ABS 98 CV, 72 kw 4cil. RJ076 4P52 Bastidores: RJ076 henceforth00321-- 2006
