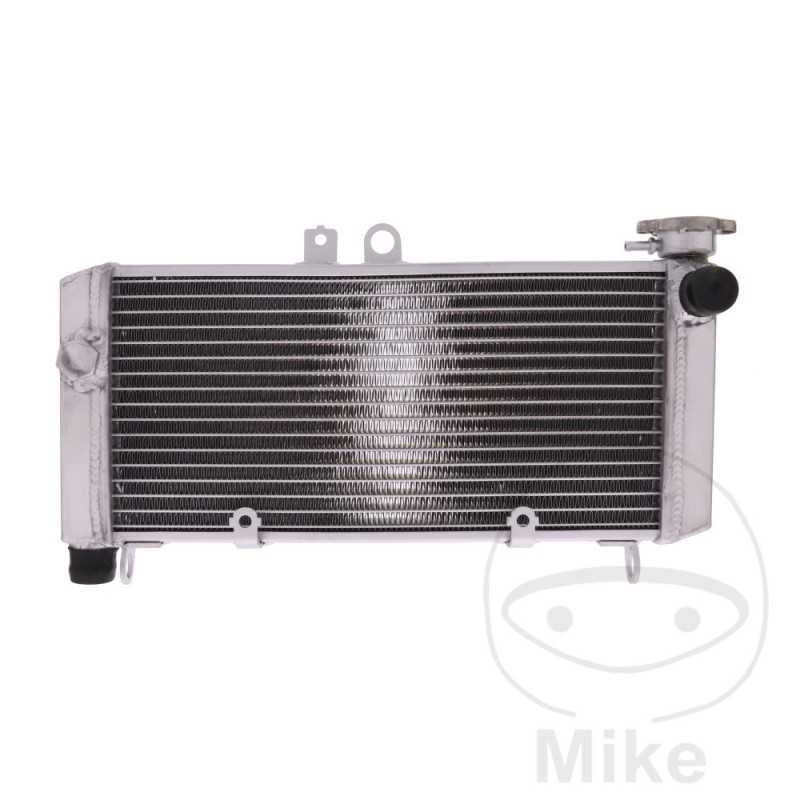

JMP Water radiator 776.02.68

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CBF 600 S 34 CV, 25 kw 4cil. PC38C 4 Bastidores: ZDC PC38C henceforth4F000001-ZDC PC38C henceforth4F099999 2004
Honda CBF 600 S 34 CV, 25 kw 4cil. PC38C 5 Bastidores: ZDC PC38C henceforth5F050001-- 2005
Honda CBF 600 S 34 CV, 25 kw 4cil. PC38C 6 Bastidores: ZDC PC38C henceforth6F080001-- 2006-2007
Honda CBF 600 S 78 CV, 57 kw 4cil. PC38A 4 Bastidores: ZDC PC38A henceforth4F000001-ZDC PC38A henceforth4F049999 2004
Honda CBF 600 S 78 CV, 57 kw 4cil. PC38A 5 Bastidores: ZDC PC38A henceforth5F050001-- 2005
Honda CBF 600 S 78 CV, 57 kw 4cil. PC38A 6 Bastidores: ZDC PC38A henceforth6F080001-- 2006-2007
Honda CBF 600 SA ABS 34 CV, 25 kw 4cil. PC38D 4 Bastidores: ZDC PC38D henceforth4F000001-ZDC PC38D henceforth4F099999 2004
Honda CBF 600 SA ABS 34 CV, 25 kw 4cil. PC38D 5 Bastidores: ZDC PC38D henceforth5F050001-- 2005
Honda CBF 600 SA ABS 34 CV, 25 kw 4cil. PC38D 6 Bastidores: ZDC PC38D henceforth6F080001-- 2006-2007
Honda CBF 600 SA ABS 78 CV, 57 kw 4cil. PC38B 4 Bastidores: ZDC PC38B henceforth4F000001-ZDC PC38B henceforth4F049999 2004
Honda CBF 600 SA ABS 78 CV, 57 kw 4cil. PC38B 5 Bastidores: ZDC PC38B henceforth5F050001-- 2005
Honda CBF 600 SA ABS 78 CV, 57 kw 4cil. PC38B 6 Bastidores: ZDC PC38B henceforth6F080001-- 2006-2007
