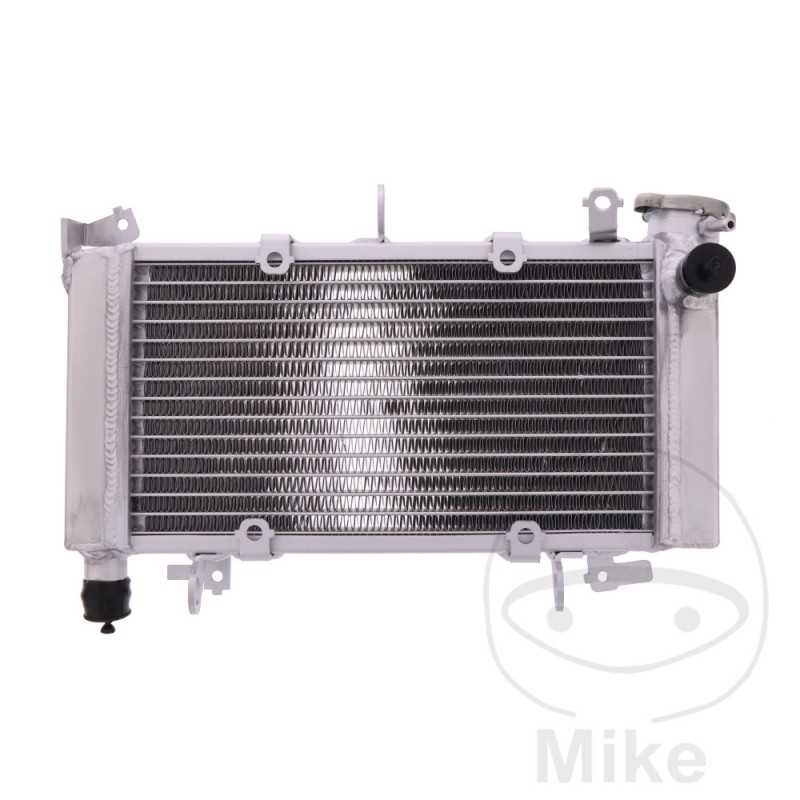

JMP Water radiator 776.02.66

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 500 F 48 CV, 35 kw 2cil. PC45A D Bastidores: MLH PC45A-D5000001-MLH PC45A-D5999999 2013
Honda CB 500 F 48 CV, 35 kw 2cil. PC45A E Bastidores: MLH PC45A-E5100001-MLH PC45A-E5199999 2014
Honda CB 500 F 48 CV, 35 kw 2cil. PC45A F Bastidores: MLH PC45A-F5200001-- 2015
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC45B D Bastidores: MLH PC45B-D5000001-MLH PC45B-D5999999 2013
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC45B E Bastidores: MLH PC45B-E5100001-MLH PC45B-E5199999 2014
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC45B F Bastidores: MLH PC45B-F5200001-- 2015
Honda CB 500 X 48 CV, 35 kw 2cil. PC46A F Bastidores: MLH PC46A-F5200001-- 2015
Honda CB 500 XA ABS 48 CV, 35 kw 2cil. PC46B D Bastidores: MLH PC46B-D5000001-MLH PC46B-D5099999 2013
Honda CB 500 XA ABS 48 CV, 35 kw 2cil. PC46B E Bastidores: MLH PC46B-E5100001-MLH PC46B-E5199999 2014
Honda CB 500 XA ABS 48 CV, 35 kw 2cil. PC46B F Bastidores: MLH PC46B-F5200001-- 2015
Honda CB 500 XA ABS 48 CV, 35 kw 2cil. PC46B G Bastidores: MLH PC46B-G5300001-MLH PC46B-G5399999 2016
