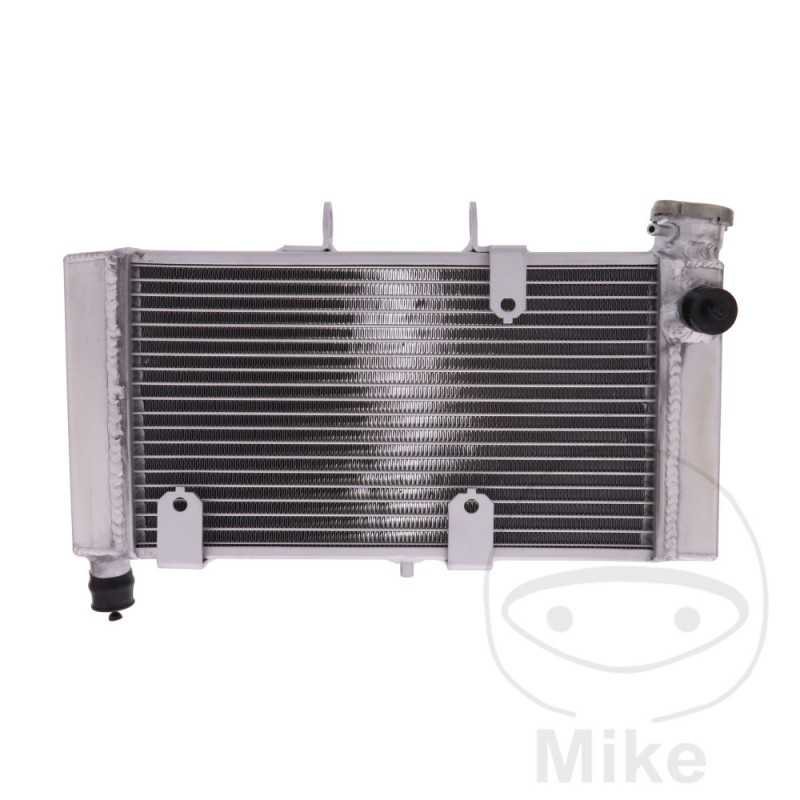

JMP Water radiator 776.02.64

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda NC 700 S 48 CV, 35 kw 2cil. RC61B C Bastidores: JH2 RC61B-CK000001-JH2 RC61B-CK099999 2012
Honda NC 700 S 48 CV, 35 kw 2cil. RC61B D Bastidores: JH2 RC61B-DK100001-- 2013-2014
Honda NC 700 SA ABS 48 CV, 35 kw 2cil. RC61C C Bastidores: JH2 RC61C-CK000001-JH2 RC61C-CK099999 2012
Honda NC 700 SA ABS 48 CV, 35 kw 2cil. RC61C D Bastidores: JH2 RC61C-DK100001-- 2013-2014
Honda NC 700 SA ABS 52 CV, 38 kw 2cil. RC61A C Bastidores: JH2 RC61A-CK000001-JH2 RC61A-CK099999 2012
Honda NC 700 SA ABS 52 CV, 38 kw 2cil. RC61A D Bastidores: JH2 RC61A-DK100001-- 2013-2014
Honda NC 700 SD DCT ABS 48 CV, 35 kw 2cil. RC61D C Bastidores: JH2 RC61D-CK000001-JH2 RC61D-CK099999 2012
Honda NC 700 SD DCT ABS 48 CV, 35 kw 2cil. RC61D D Bastidores: JH2 RC61D-DK100001-- 2013
Honda NC 700 SD DCT ABS 48 CV, 35 kw 2cil. RC61D E Bastidores: JH2 RC61D-EK200001-- 2014
Honda NC 700 X 48 CV, 35 kw 2cil. RC63C C Bastidores: JH2 RC63C-CK000001-JH2 RC63C-CK009999 2012
Honda NC 700 X 48 CV, 35 kw 2cil. RC63C D Bastidores: JH2 RC63C-DK100001-- 2013-2014
Honda NC 700 X 52 CV, 38 kw 2cil. RC63A C Bastidores: JH2 RC63A-CK500001-JH2 RC63A-CK509999 2012
Honda NC 700 X 52 CV, 38 kw 2cil. RC63A D Bastidores: JH2 RC63A-DK600001-- 2013-2014
Honda NC 700 XA ABS 48 CV, 35 kw 2cil. RC63E C Bastidores: JH2 RC63E-CK000001-JH2 RC63E-CK009999 2012
Honda NC 700 XA ABS 48 CV, 35 kw 2cil. RC63E D Bastidores: JH2 RC63E-DK100001-- 2013-2014
Honda NC 700 XA ABS 52 CV, 38 kw 2cil. RC63B C Bastidores: JH2 RC63B-CK500001-JH2 RC63B-CK509999 2012
Honda NC 700 XA ABS 52 CV, 38 kw 2cil. RC63B D Bastidores: JH2 RC63B-DK600001-- 2013-2014
Honda NC 700 XD DCT ABS 48 CV, 35 kw 2cil. RC63F D Bastidores: JH2 RC63F-DK000001-- 2013-2014
Honda NC 700 XD DCT ABS 52 CV, 38 kw 2cil. RC63D C Bastidores: JH2 RC63D-CK000001-JH2 RC63D-CK009999 2012
Honda NC 700 XD DCT ABS 52 CV, 38 kw 2cil. RC63D D Bastidores: JH2 RC63D-DK100001-- 2013-2014
Honda NC 750 SA ABS 48 CV, 35 kw 2cil. RC88C J Bastidores: JH2 RC88C-JK000001-- 2018
Honda NC 750 SA ABS 48 CV, 35 kw 2cil. RC88C K Bastidores: JH2 RC88C-KK100001-- 2019-2021
Honda NC 750 SA ABS 55 CV, 40,3 kw 2cil. RC70B E Bastidores: JH2 RC70B-EK000001-- 2014
Honda NC 750 SA ABS 55 CV, 40,3 kw 2cil. RC70B F Bastidores: JH2 RC70B-FK100001-- 2015
Honda NC 750 SA ABS 55 CV, 40,3 kw 2cil. RC88A G Bastidores: JH2 RC88A-GK000001-JH2 RC88A-GK099999 2016
Honda NC 750 SA ABS 55 CV, 40,3 kw 2cil. RC88A H Bastidores: JH2 RC88A-HK100001-- 2017
Honda NC 750 SA ABS 55 CV, 40,3 kw 2cil. RC88A J Bastidores: JH2 RC88A-JK200001-- 2018
Honda NC 750 SA ABS 55 CV, 40,3 kw 2cil. RC88A K Bastidores: JH2 RC88A-KK300001-- 2019-2021
Honda NC 750 SD DCT ABS 48 CV, 35 kw 2cil. RC88B K Bastidores: JH2 RC88D-KK100001-- 2021
Honda NC 750 SD DCT ABS 48 CV, 35 kw 2cil. RC88D J Bastidores: JH2 RC88D-JK000001-- 2018
Honda NC 750 SD DCT ABS 48 CV, 35 kw 2cil. RC88D K Bastidores: JH2 RC88D-KK100001-- 2019-2020
Honda NC 750 SD DCT ABS 55 CV, 40,3 kw 2cil. RC70C E Bastidores: JH2 RC70C-EK000001-- 2014-2015
Honda NC 750 SD DCT ABS 55 CV, 40,3 kw 2cil. RC70D E Bastidores: JH2 RC70D-EK000001-- 2014-2015
Honda NC 750 SD DCT ABS 55 CV, 40,3 kw 2cil. RC88B G Bastidores: JH2 RC88B-GK000001-JH2 RC88B-GK099999 2016
Honda NC 750 SD DCT ABS 55 CV, 40,3 kw 2cil. RC88B H Bastidores: JH2 RC88B-HK100001-- 2017
Honda NC 750 SD DCT ABS 55 CV, 40,5 kw 2cil. RC88B J Bastidores: JH2 RC88B-JK200001-- 2018
Honda NC 750 SD DCT ABS 55 CV, 40,5 kw 2cil. RC88B K Bastidores: JH2 RC88B-KK300001-- 2019-2021
Honda NC 750 XA ABS 48 CV 35 kw 2cil. RH09C M Bastidores: JH2 RH09C-MK000001-- 2021-2022
Honda NC 750 XA ABS 48 CV, 35 kw 2cil. RC90C J Bastidores: JH2 RC90C-JK000001-- 2018
Honda NC 750 XA ABS 48 CV, 35 kw 2cil. RC90C K Bastidores: JH2 RC90C-KK100001-JH2 RC90C-KK199999 2019
Honda NC 750 XA ABS 48 CV, 35 kw 2cil. RC90C L Bastidores: JH2 RC90C-LK200001-- 2020
Honda NC 750 XA ABS 55 CV, 40,3 kw 2cil. RC72B E Bastidores: JH2 RC72B-EK000001-- 2014-2015
Honda NC 750 XA ABS 55 CV, 40,3 kw 2cil. RC90A G Bastidores: JH2 RC90A-GK000001-JH2 RC90A-GK099999 2016
Honda NC 750 XA ABS 55 CV, 40,3 kw 2cil. RC90A H Bastidores: JH2 RC90A-HK100001-JH2 RC90A-HK199999 2017
Honda NC 750 XA ABS 55 CV, 40,5 kw 2cil. RC90A J Bastidores: JH2 RC90A-JK200001-- 2018
Honda NC 750 XA ABS 55 CV, 40,5 kw 2cil. RC90A K Bastidores: JH2 RC90A-KK300001-JH2 RC90A-KK399999 2019
Honda NC 750 XA ABS 55 CV, 40,5 kw 2cil. RC90A L Bastidores: JH2 RC90A-LK400001-- 2020
Honda NC 750 XA ABS 59 CV 43 kw 2cil. RH09A M Bastidores: JH2 RH09A-MK000001-- 2021-2022
Honda NC 750 XD DCT ABS 48 CV 35 kw 2cil. RH09D M Bastidores: JH2 RH09D-MK000001-- 2021-2022
Honda NC 750 XD DCT ABS 48 CV, 35 kw 2cil. RC90D J Bastidores: JH2 RC90D-JK000001-- 2018
Honda NC 750 XD DCT ABS 48 CV, 35 kw 2cil. RC90D K Bastidores: JH2 RC90D-KK100001-JH2 RC90D-KK199999 2019
Honda NC 750 XD DCT ABS 48 CV, 35 kw 2cil. RC90D L Bastidores: JH2 RC90D-LK200001-- 2020
Honda NC 750 XD DCT ABS 55 CV, 40,3 kw 2cil. RC72C E Bastidores: JH2 RC72C-EK000001-- 2014-2015
Honda NC 750 XD DCT ABS 55 CV, 40,3 kw 2cil. RC72D E Bastidores: JH2 RC72D-EK000001-- 2014-2015
Honda NC 750 XD DCT ABS 55 CV, 40,3 kw 2cil. RC90B G Bastidores: JH2 RC90B-GK000001-JH2 RC90B-GK099999 2016
Honda NC 750 XD DCT ABS 55 CV, 40,3 kw 2cil. RC90B H Bastidores: JH2 RC90B-HK100001-JH2 RC90B-HK199999 2017
Honda NC 750 XD DCT ABS 55 CV, 40,5 kw 2cil. RC90B J Bastidores: JH2 RC90B-JK200001-- 2018
Honda NC 750 XD DCT ABS 55 CV, 40,5 kw 2cil. RC90B K Bastidores: JH2 RC90B-KK300001-JH2 RC90B-KK399999 2019
Honda NC 750 XD DCT ABS 55 CV, 40,5 kw 2cil. RC90B L Bastidores: JH2 RC90B-LK400001-- 2020
Honda NC 750 XD DCT ABS 59 CV 43 kw 2cil. RH09B M Bastidores: JH2 RH09B-MK000001-- 2021-2022
