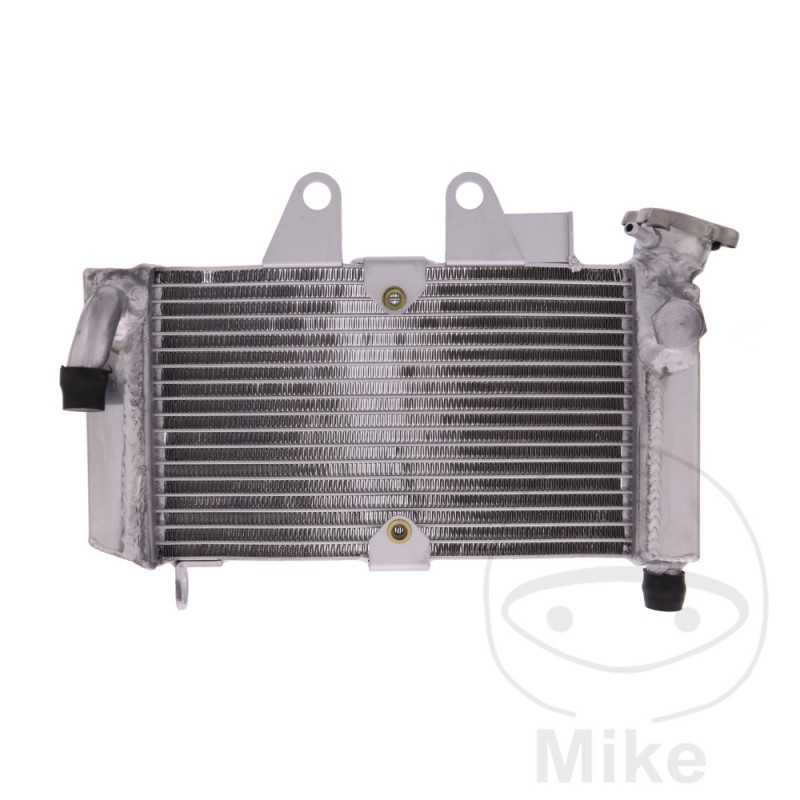

JMP Water radiator 776.02.56

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda XL 125 V Varadero 15 CV, 11 kw 2cil. JC32A 1 Bastidores: VTM JC32A henceforth1E300001-VTM JC32A henceforth1E303901 2001
Honda XL 125 V Varadero 15 CV, 11 kw 2cil. JC32A 2 Bastidores: VTM JC32A henceforth2E300001-VTM JC32A henceforth2E399999 2002
Honda XL 125 V Varadero 15 CV, 11 kw 2cil. JC32A 3 Bastidores: VTM JC32A henceforth3E300001-VTM JC32A henceforth3E399999 2003
Honda XL 125 V Varadero 15 CV, 11 kw 2cil. JC32A 4 Bastidores: VTM JC32A henceforth4E030001-VTM JC32A henceforth4E099999 2004
Honda XL 125 V Varadero 15 CV, 11 kw 2cil. JC32A 5 Bastidores: VTM JC32A henceforth5E260001-VTM JC32A henceforth5E999999 2005
Honda XL 125 V Varadero 15 CV, 11 kw 2cil. JC32A 6 Bastidores: VTM JC32A henceforth6E270001-VTM JC32A henceforth6E999999 2006
Honda XL 125 V Varadero 80 Km/h 15 CV, 11 kw 2cil. JC32A 2 Bastidores: VTM JC32A henceforth2E000001-VTM JC32A henceforth2E009999 2002
Honda XL 125 V Varadero 80 Km/h 15 CV, 11 kw 2cil. JC32A 4 Bastidores: VTM JC32A henceforth4E030001-VTM JC32A henceforth4E099999 2004
Honda XL 125 V Varadero 80 Km/h 15 CV, 11 kw 2cil. JC32A 5 Bastidores: VTM JC32A henceforth5E260001-VTM JC32A henceforth5E999999 2005
Honda XL 125 V Varadero 80 Km/h 15 CV, 11 kw 2cil. JC32A 6 Bastidores: VTM JC32A henceforth6E270001-VTMJ C32A henceforth6E999999 2006
Honda XL 125 V Varadero 80 Km/h 15 CV, 11 kw 2cil. JC32C 1 Bastidores: VTM JC32C henceforth1E000001-VTM JC32C 01E099999 2001
Honda XL 125 V Varadero 80 Km/h 15 CV, 11 kw 2cil. JC32C 3 Bastidores: VTM JC32C henceforth3E000001-VTM JC32C henceforth3E099999 2003
