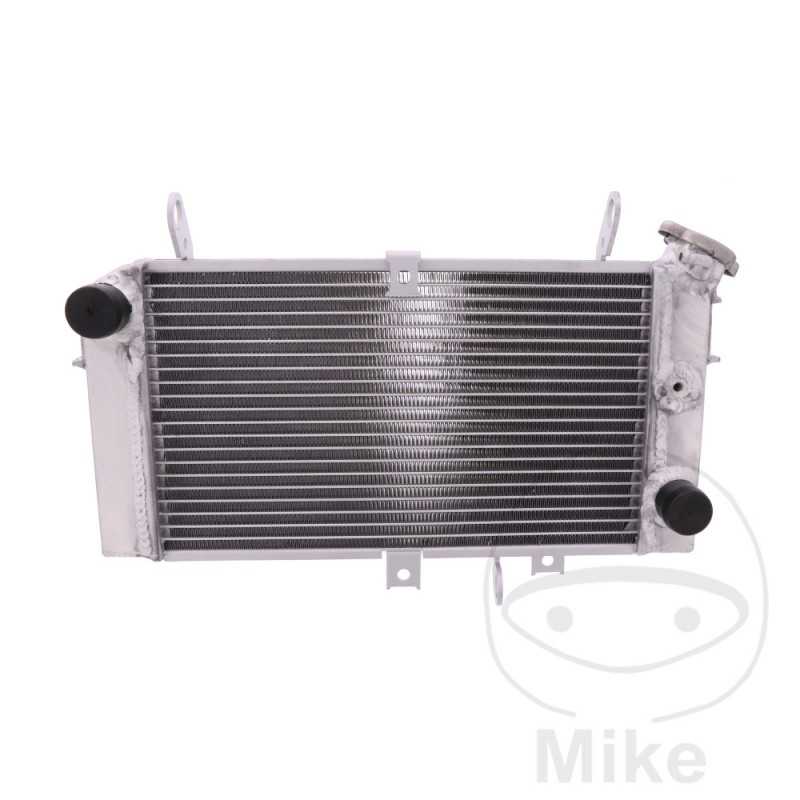

JMP Water radiator 776.02.55

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki SFV 650 A Gladius ABS 72 CV, 53 kw 2cil. WVCX1121 L1 Bastidores: CX1121 henceforth0103708-CX1121 henceforth0106215 2011
Suzuki SFV 650 A Gladius ABS 72 CV, 53 kw 2cil. WVCX1121 L2 Bastidores: CX1121 henceforth0106216-CX1121 henceforth0107863 2012
Suzuki SFV 650 A Gladius ABS 72 CV, 53 kw 2cil. WVCX1121 L3 Bastidores: CX1121 henceforth0107864-CX1121 henceforth0110077 2013
Suzuki SFV 650 A Gladius ABS 72 CV, 53 kw 2cil. WVCX1121 L4 Bastidores: CX1121 henceforth0110078-CX1121 henceforth0110099 2014
Suzuki SFV 650 A Gladius ABS 72 CV, 53 kw 2cil. WVCX1121 L5 Bastidores: CX1121 henceforth0110100-- 2015-2016
Suzuki SFV 650 A Gladius ABS 72 CV, 53 kw 2cil. WVCX1122 K9 Bastidores: CX1122 henceforth0100001-CX1122 henceforth0101932 2009
Suzuki SFV 650 A Gladius ABS 72 CV, 53 kw 2cil. WVCX1122 L0 Bastidores: CX1122 henceforth0101933-- 2010
Suzuki SFV 650 AUE Gladius ABS 48 CV, 35 kw 2cil. WVCX2121 L3 Bastidores: CX2121 henceforth0100295-CX2121 henceforth0100425 2013
Suzuki SFV 650 AUE Gladius ABS 48 CV, 35 kw 2cil. WVCX2121 L4 Bastidores: CX2121 henceforth0100426-CX2121 henceforth0100430 2014
Suzuki SFV 650 AUE Gladius ABS 48 CV, 35 kw 2cil. WVCX2121 L5 Bastidores: CX2121 henceforth0100431-- 2015-2016
Suzuki SFV 650 Gladius 72 CV, 53 kw 2cil. WVCX1111 K9 Bastidores: CX1111 henceforth0100001-CX1111 henceforth0107132 2009
Suzuki SFV 650 Gladius 72 CV, 53 kw 2cil. WVCX1111 L0 Bastidores: CX1111 henceforth0107133-CX1111 henceforth0108641 2010
Suzuki SFV 650 Gladius 72 CV, 53 kw 2cil. WVCX1111 L1 Bastidores: CX1111 henceforth0108642-CX1111 henceforth0110838 2011
Suzuki SFV 650 Gladius 72 CV, 53 kw 2cil. WVCX1111 L2 Bastidores: CX1111 henceforth0110839-CX1111 henceforth0112027 2012
Suzuki SFV 650 Gladius 72 CV, 53 kw 2cil. WVCX1111 L3 Bastidores: CX1111 henceforth0112028-CX1111 henceforth0113265 2013
Suzuki SFV 650 Gladius 72 CV, 53 kw 2cil. WVCX1111 L4 Bastidores: CX1111 henceforth0113266-CX1111 henceforth0114655 2014
Suzuki SFV 650 Gladius 72 CV, 53 kw 2cil. WVCX1111 L5 Bastidores: CX1111 henceforth0114656-- 2015-2016
Suzuki SFV 650 U Gladius 34 CV, 25 kw 2cil. WVCX2111 K9 Bastidores: CX2111 henceforth0100001-CX2111 henceforth0102965 2009
Suzuki SFV 650 U Gladius 34 CV, 25 kw 2cil. WVCX2111 L0 Bastidores: CX2111 henceforth0102966-CX2111 henceforth0104622 2010
Suzuki SFV 650 U Gladius 34 CV, 25 kw 2cil. WVCX2111 L1 Bastidores: CX2111 henceforth0104623-- 2011
Suzuki SFV 650 U Gladius 34 CV, 25 kw 2cil. WVCX2111 L2 Bastidores: CX2111 henceforth0104623-- 2012
Suzuki SFV 650 U Gladius 48 CV, 35 kw 2cil. WVCX2111 L3 Bastidores: CX2111 henceforth0104623-- 2013
Suzuki SFV 650 U Gladius 48 CV, 35 kw 2cil. WVCX2111 L4 Bastidores: CX2111 henceforth0104623-- 2014
Suzuki SFV 650 U Gladius 48 CV, 35 kw 2cil. WVCX2111 L5 Bastidores: CX2111 henceforth0104623-- 2015-2016
Suzuki SFV 650 UA Gladius ABS 34 CV, 25 kw 2cil. WVCX2121 K9 Bastidores: CX2121 henceforth0100001-CX2121 henceforth0100060 2009
Suzuki SFV 650 UA Gladius ABS 34 CV, 25 kw 2cil. WVCX2121 L0 Bastidores: CX2121 henceforth0100061-CX2121 henceforth0100180 2010
Suzuki SFV 650 UA Gladius ABS 34 CV, 25 kw 2cil. WVCX2121 L1 Bastidores: CX2121 henceforth0100181-CX2121 henceforth0100280 2011
Suzuki SFV 650 UA Gladius ABS 34 CV, 25 kw 2cil. WVCX2121 L2 Bastidores: CX2121 henceforth0100281-CX2121 henceforth0100294 2012
