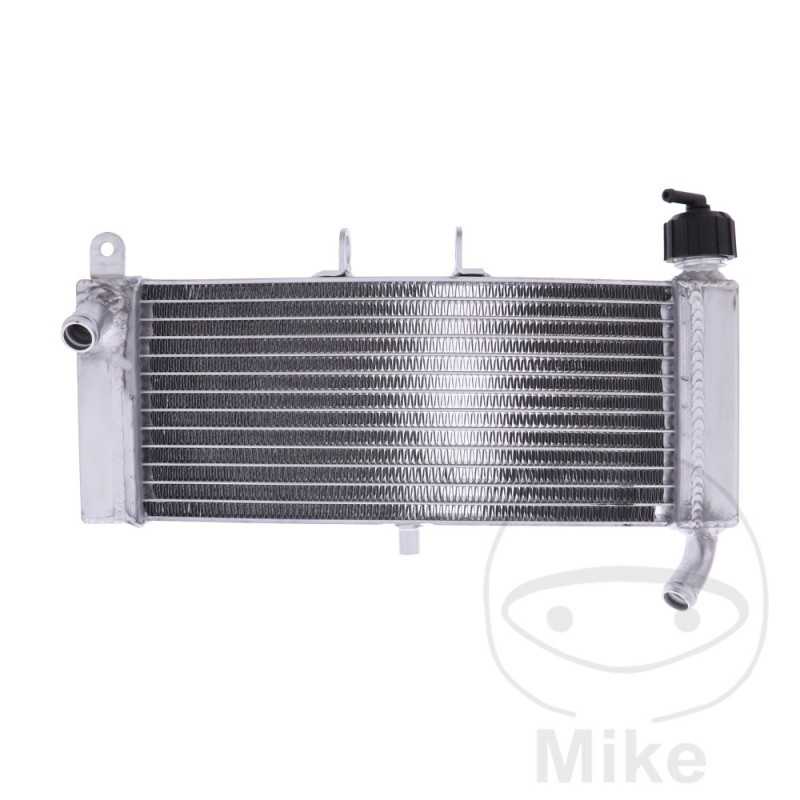

JMP Water radiator 776.02.48

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia RS 125 4T ABS 15 CV, 11 kw 1cil. KC000 Bastidores: --- 2017-2020
Aprilia RS 125 4T ABS Euro4 15 CV, 11 kw 1cil. KC000 Bastidores: --- 2021
Aprilia RS 125 4T ABS Euro5 15 CV, 11 kw 1cil. XAA00 Bastidores: --- 2021-2022
Aprilia RS 125 4T Replica ABS 15 CV, 11 kw 1cil. KC000 Bastidores: --- 2017-2020
Aprilia RS 125 4T Replica ABS Euro4 15 CV, 11 kw 1cil. KC000 Bastidores: --- 2021
Aprilia RS 125 GP 4T Replica ABS Euro5 15 CV, 11 kw 1cil. XAA00 Bastidores: --- 2021-2022
Aprilia RS4 125 4T 15 CV, 11 kw 1cil. TW000 Bastidores: --- 2011-2016
Aprilia RS4 125 4T Replica 15 CV, 11 kw 1cil. TW000 Bastidores: --- 2011-2016
Aprilia RS4 50 /Replica 5,4/2,7 CV, 4/2 kw 1cil. TK000 Bastidores: --- 2011-2013
Aprilia RS4 50 /Replica euro2 5,4/2,7 CV, 4/2 kw 1cil. TK000/VX000 Bastidores: --- 2014-2018
Aprilia RS4 50 euro4 3 CV, 2,2 kw 1cil. KRA00 Bastidores: --- 2018-2019
Aprilia RS4 50 Euro4 3 CV, 2,2 kw 1cil. KRA00 Bastidores: --- 2020-2021
Aprilia Tuono 125 4T ABS 15 CV, 11 kw 1cil. KCA00 Bastidores: --- 2017-2020
Aprilia Tuono 125 4T ABS Euro4 15 CV, 11 kw 1cil. KCA00 Bastidores: --- 2021
Aprilia Tuono 125 4T ABS Euro5 15 CV, 11 kw 1cil. XAB00 Bastidores: --- 2021-2022
Derbi GPR 50 Racing 2,9 CV, 2,1 kw 1cil. RF1A1A Bastidores: --- 2010-2012
Derbi GPR 50 Racing 8,5 CV, 6,25 kw 1cil. PVXA00 Bastidores: --- 2013-2016
