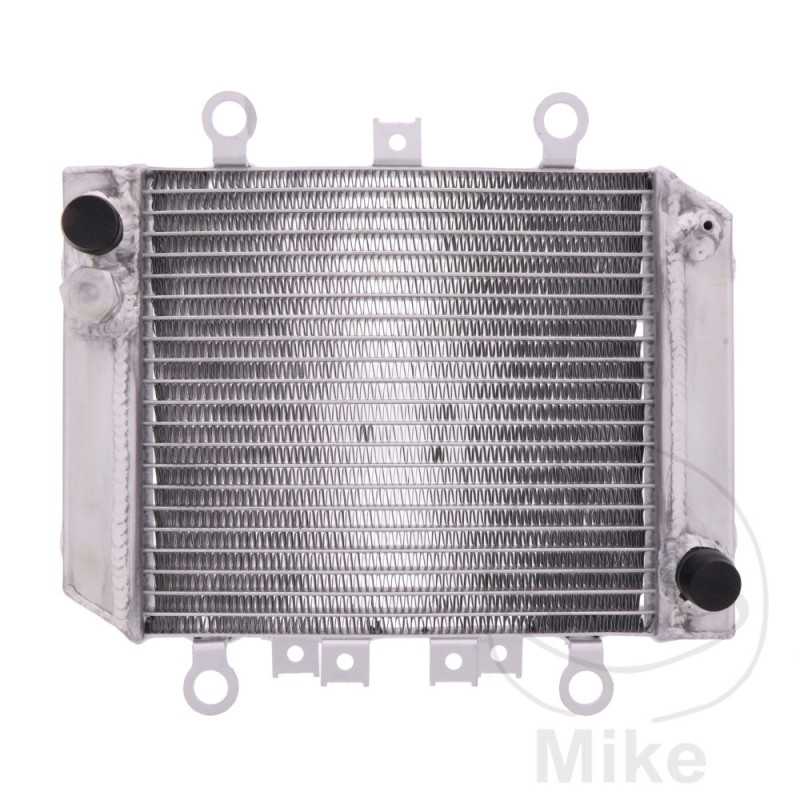

JMP Water radiator 776.02.04

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki ER 500 A Twister 34 CV, 25 kw 2cil. ER500AAA 1 Bastidores: ER500AAA henceforth00001-ER500AAA henceforth15000 1997
Kawasaki ER 500 A Twister 34 CV, 25 kw 2cil. ER500AAA 2 Bastidores: ER500AAA henceforth15001-ER500AAA henceforth28000 1998
Kawasaki ER 500 A Twister 34 CV, 25 kw 2cil. ER500AAA 3 Bastidores: ER500AAA henceforth28001-ER500AAA henceforth41000 1999
Kawasaki ER 500 A Twister 34 CV, 25 kw 2cil. ER500AAA 4 Bastidores: ER500AAA henceforth41001-ER500AAA-999999 2000
Kawasaki ER 500 B Twister 50 CV, 37 kw 2cil. ER500ABA 1 Bastidores: ER500ABA henceforth00001-ER500ABA henceforth15000 1997
Kawasaki ER 500 B Twister 50 CV, 37 kw 2cil. ER500ABA 2 Bastidores: ER500ABA henceforth15001-ER500ABA henceforth28000 1998
Kawasaki ER 500 B Twister 50 CV, 37 kw 2cil. ER500ABA 3 Bastidores: ER500ABA henceforth28001-ER500ABA henceforth41000 1999
Kawasaki ER 500 B Twister 50 CV, 37 kw 2cil. ER500ABA 4 Bastidores: ER500ABA henceforth41001-ER500ABA-999999 2000
Kawasaki ER 500 C Twister 34 CV, 25 kw 2cil. ER500AC 5P Bastidores: ER500ACA henceforth82001-- 2005-2006
Kawasaki ER 500 C Twister 34 CV, 25 kw 2cil. ER500ACA 1 Bastidores: ER500ACA henceforth51001-ER500ACA henceforth67000 2001-2002
Kawasaki ER 500 C Twister 34 CV, 25 kw 2cil. ER500ACA 3 Bastidores: ER500ACA henceforth67001-ER500ACA henceforth72000 2003
Kawasaki ER 500 C Twister 34 CV, 25 kw 2cil. ER500ACA 4P Bastidores: ER500ACA henceforth72001-ER500ACA henceforth82000 2004
Kawasaki ER 500 D Twister 50 CV, 37 kw 2cil. ER500ADA 1 Bastidores: ER500ADA henceforth51001-ER500ADA-999999 2001-2006
