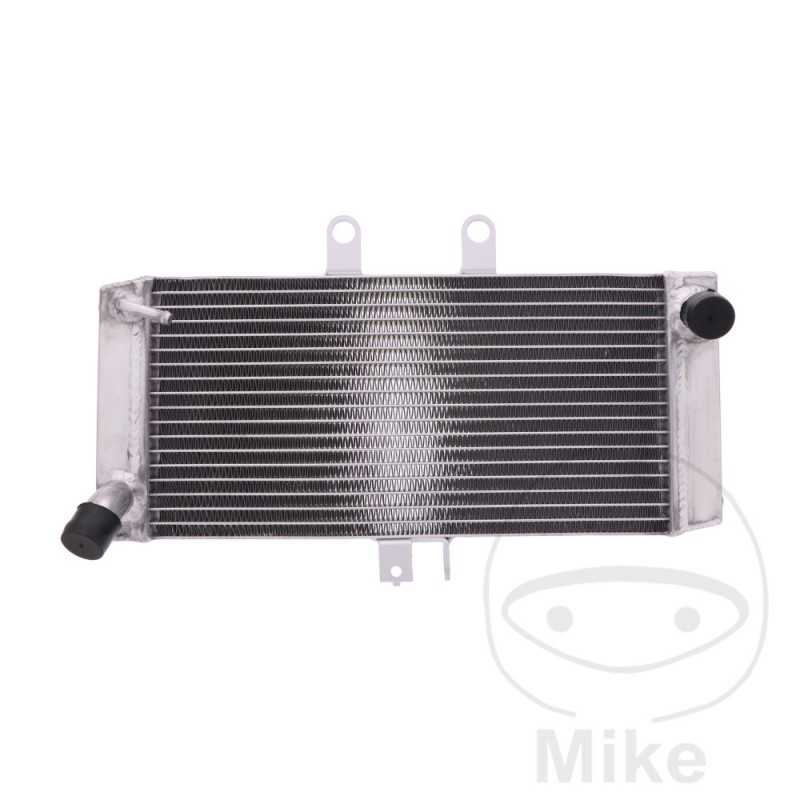

JMP Water radiator 776.01.97

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSF 650 A Bandit ABS 86 CV, 63 kw 4cil. WVCJ1241 K7 Bastidores: CJ1241 henceforth0100001-CJ1241 henceforth0100963 2007
Suzuki GSF 650 A Bandit ABS 86 CV, 63 kw 4cil. WVCJ1241 K8 Bastidores: CJ1241 henceforth0100964-- 2008
Suzuki GSF 650 A Bandit ABS 86 CV, 63 kw 4cil. WVCZ1241 K9 Bastidores: CZ1241 henceforth0100001-CZ1241 henceforth0100475 2009
Suzuki GSF 650 A Bandit ABS 86 CV, 63 kw 4cil. WVCZ1241 L0 Bastidores: CZ1241 henceforth0100476-CZ1241 henceforth0101087 2010
Suzuki GSF 650 A Bandit ABS 86 CV, 63 kw 4cil. WVCZ1241 L1 Bastidores: CZ1241 henceforth0101088-CZ1241 henceforth0101148 2011
Suzuki GSF 650 A Bandit ABS 86 CV, 63 kw 4cil. WVCZ1241 L2 Bastidores: --- 2012-2013
Suzuki GSF 650 Bandit 86 CV, 63 kw 4cil. WVCJ1221 K7 Bastidores: CJ1221 henceforth0100001-CJ1221 henceforth0103081 2007
Suzuki GSF 650 Bandit 86 CV, 63 kw 4cil. WVCJ1221 K8 Bastidores: CJ1221 henceforth0103082-- 2008
Suzuki GSF 650 Bandit 86 CV, 63 kw 4cil. WVCZ1231 K9 Bastidores: CZ1231 henceforth0100001-CZ1231 henceforth0100495 2009
Suzuki GSF 650 Bandit 86 CV, 63 kw 4cil. WVCZ1231 L0 Bastidores: CZ1231 henceforth0100496-CZ1231 henceforth0100923 2010
Suzuki GSF 650 Bandit 86 CV, 63 kw 4cil. WVCZ1231 L1 Bastidores: CZ1231 henceforth0100924-CZ1231 henceforth0101401 2011
Suzuki GSF 650 Bandit 86 CV, 63 kw 4cil. WVCZ1231 L2 Bastidores: CZ1231 henceforth0101402-- 2012-2013
Suzuki GSF 650 S Bandit 86 CV, 63 kw 4cil. WVCJ1111 K7 Bastidores: CJ1111 henceforth0100001-CJ1111 henceforth0101803 2007
Suzuki GSF 650 S Bandit 86 CV, 63 kw 4cil. WVCJ1111 K8 Bastidores: CJ1111 henceforth0101804-- 2008
Suzuki GSF 650 S Bandit 86 CV, 63 kw 4cil. WVCZ1111 K9 Bastidores: CZ1111 henceforth0100001-CZ1111 henceforth0100163 2009
Suzuki GSF 650 S Bandit 86 CV, 63 kw 4cil. WVCZ1111 L0 Bastidores: CZ1111 henceforth0100164-CZ1111 henceforth0100230 2010
Suzuki GSF 650 S Bandit 86 CV, 63 kw 4cil. WVCZ1111 L1 Bastidores: CZ1111 henceforth0100231-CZ1111 henceforth0100392 2011
Suzuki GSF 650 S Bandit 86 CV, 63 kw 4cil. WVCZ1111 L2 Bastidores: CZ1111 henceforth0100393-- 2012-2014
Suzuki GSF 650 SA Bandit ABS 86 CV, 63 kw 4cil. WVCJ1131 K7 Bastidores: CJ1131 henceforth0100001-CJ1131 henceforth0102612 2007
Suzuki GSF 650 SA Bandit ABS 86 CV, 63 kw 4cil. WVCJ1131 K8 Bastidores: CJ1131 henceforth0102613-- 2008
Suzuki GSF 650 SA Bandit ABS 86 CV, 63 kw 4cil. WVCZ1121 K9 Bastidores: CZ1121 henceforth0100001-CZ1121 henceforth0101586 2009
Suzuki GSF 650 SA Bandit ABS 86 CV, 63 kw 4cil. WVCZ1121 L0 Bastidores: CZ1121 henceforth0101587-CZ1121 henceforth0102647 2010
Suzuki GSF 650 SA Bandit ABS 86 CV, 63 kw 4cil. WVCZ1121 L1 Bastidores: CZ1121 henceforth0102648-CZ1121 henceforth0103241 2011
Suzuki GSF 650 SA Bandit ABS 86 CV, 63 kw 4cil. WVCZ1121 L2 Bastidores: CZ1121 henceforth0103242-- 2012-2016
Suzuki GSF 650 SU Bandit 34 CV, 25 kw 4cil. WVCJ2111 K7 Bastidores: CJ2111 henceforth0100001-CJ2111 henceforth0101864 2007
Suzuki GSF 650 SU Bandit 34 CV, 25 kw 4cil. WVCJ2111 K8 Bastidores: CJ2111 henceforth0101865-- 2008
Suzuki GSF 650 SU Bandit 34 CV, 25 kw 4cil. WVCZ2111 K9 Bastidores: CZ2111 henceforth0100001-CZ2111 henceforth0100400 2009
Suzuki GSF 650 SU Bandit 34 CV, 25 kw 4cil. WVCZ2111 L0 Bastidores: CZ2111 henceforth0100401-CZ2111 henceforth0100710 2010
Suzuki GSF 650 SU Bandit 34 CV, 25 kw 4cil. WVCZ2111 L1 Bastidores: CZ2111 henceforth0100711-- 2011
Suzuki GSF 650 SUA Bandit ABS 34 CV, 25 kw 4cil. WVCJ2131 K7 Bastidores: CJ2131 henceforth0100001-CJ2131 henceforth0100524 2007
Suzuki GSF 650 SUA Bandit ABS 34 CV, 25 kw 4cil. WVCJ2131 K8 Bastidores: CJ2131 henceforth0100525-- 2008
Suzuki GSF 650 SUA Bandit ABS 34 CV, 25 kw 4cil. WVCZ2121 K9 Bastidores: CZ2121 henceforth0100001-CZ2121 henceforth0100231 2009
Suzuki GSF 650 SUA Bandit ABS 34 CV, 25 kw 4cil. WVCZ2121 L0 Bastidores: CZ2121 henceforth0100232-CZ2121 henceforth0100381 2010
Suzuki GSF 650 SUA Bandit ABS 34 CV, 25 kw 4cil. WVCZ2121 L1 Bastidores: CZ2121 henceforth0100382-CZ2121 henceforth0100396 2011
Suzuki GSF 650 SUA Bandit ABS 34 CV, 25 kw 4cil. WVCZ2121 L2 Bastidores: CZ2121 henceforth0100397-- 2012-2016
Suzuki GSF 650 U Bandit 34 CV, 25 kw 4cil. WVCJ2121 K7 Bastidores: CJ2121 henceforth0100001-CJ2121 henceforth0103895 2007
Suzuki GSF 650 U Bandit 34 CV, 25 kw 4cil. WVCJ2121 K8 Bastidores: CJ2121 henceforth0103896-- 2008
Suzuki GSF 650 U Bandit 34 CV, 25 kw 4cil. WVCZ2131 K9 Bastidores: CZ2131 henceforth0100001-CZ2131 henceforth0101716 2009
Suzuki GSF 650 U Bandit 34 CV, 25 kw 4cil. WVCZ2131 L0 Bastidores: CZ2131 henceforth0101717-CZ2131 henceforth0102898 2010
Suzuki GSF 650 U Bandit 34 CV, 25 kw 4cil. WVCZ2131 L1 Bastidores: CZ2131 henceforth0102899-- 2011
Suzuki GSF 650 UA Bandit ABS 34 CV, 25 kw 4cil. WVCJ2141 K7 Bastidores: CJ2141 henceforth0100001-CJ2141 henceforth0100034 2007
Suzuki GSF 650 UA Bandit ABS 34 CV, 25 kw 4cil. WVCJ2141 K8 Bastidores: CJ2141 henceforth0100035-- 2008
Suzuki GSF 650 UA Bandit ABS 34 CV, 25 kw 4cil. WVCZ2141 K9 Bastidores: CZ2141 henceforth0100001-CZ2141 henceforth0100006 2009
Suzuki GSF 650 UA Bandit ABS 34 CV, 25 kw 4cil. WVCZ2141 L0 Bastidores: CZ2141 henceforth0100007-- 2010-2011
