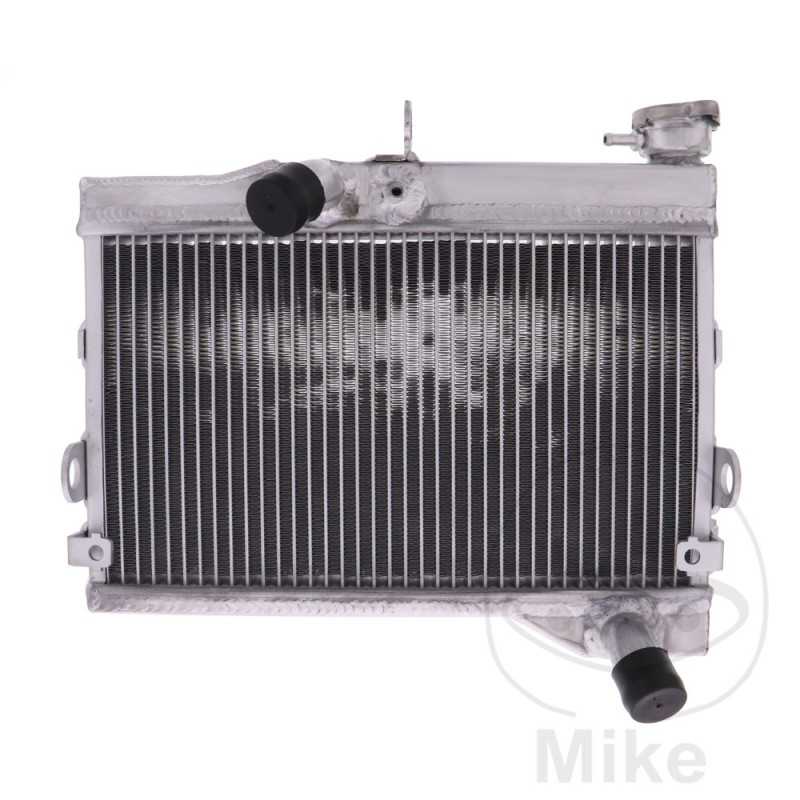

JMP Water radiator 776.01.95

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha MT07 700 48 CV, 35 kw 2cil. RM047 1WS2 Bastidores: RM047 henceforth00301-- 2014
Yamaha MT07 700 48 CV, 35 kw 2cil. RM047 1WS8 Bastidores: RM047 henceforth00399-- 2014
Yamaha MT07 700 48 CV, 35 kw 2cil. RM047 1WS9 Bastidores: RM047 henceforth00321-- 2014
Yamaha MT07 700 48 CV, 35 kw 2cil. RM047 1WSC Bastidores: RM047 henceforth01568-- 2015
Yamaha MT07 700 48 CV, 35 kw 2cil. RM047 1WSJ Bastidores: RM047 henceforth01898-- 2016
Yamaha MT07 700 74,8 CV, 55 kw 2cil. RM041 1WS1 Bastidores: RM041 henceforth00301-- 2014
Yamaha MT07 700 74,8 CV, 55 kw 2cil. RM041 1WS6 Bastidores: RM041 henceforth00336-- 2014
Yamaha MT07 700 74,8 CV, 55 kw 2cil. RM041 1WS7 Bastidores: RM041 henceforth00406-- 2014
Yamaha MT07 700 74,8 CV, 55 kw 2cil. RM041 1WSB Bastidores: RM041 henceforth08736-- 2015
Yamaha MT07 700 74,8 CV, 55 kw 2cil. RM041 1WSH Bastidores: RM041 henceforth12729-- 2016
Yamaha MT07 700 A ABS 48 CV, 35 kw 2cil. RM048 1XB2 Bastidores: RM048 henceforth00301-- 2014
Yamaha MT07 700 A ABS 48 CV, 35 kw 2cil. RM048 1XB7 Bastidores: RM048 henceforth00401-- 2014
Yamaha MT07 700 A ABS 48 CV, 35 kw 2cil. RM048 1XB8 Bastidores: RM048 henceforth00371-- 2014
Yamaha MT07 700 A ABS 48 CV, 35 kw 2cil. RM048 1XBB Bastidores: RM048 henceforth02393-- 2015
Yamaha MT07 700 A ABS 48 CV, 35 kw 2cil. RM048 1XBJ Bastidores: RM048 henceforth03275-- 2016
Yamaha MT07 700 A ABS 48 CV, 35 kw 2cil. RM181 BU23 Bastidores: RM181 henceforth00301-- 2017
Yamaha MT07 700 A ABS 74,8 CV, 55 kw 2cil. RM042 1XB1 Bastidores: RM042 henceforth00301-- 2014
Yamaha MT07 700 A ABS 74,8 CV, 55 kw 2cil. RM042 1XB5 Bastidores: RM042 henceforth00401-- 2014
Yamaha MT07 700 A ABS 74,8 CV, 55 kw 2cil. RM042 1XB6 Bastidores: RM042 henceforth00431-- 2014
Yamaha MT07 700 A ABS 74,8 CV, 55 kw 2cil. RM042 1XBA Bastidores: RM042 henceforth12174-- 2015
Yamaha MT07 700 A ABS 74,8 CV, 55 kw 2cil. RM042 1XBH Bastidores: RM042 henceforth21344-- 2016
Yamaha MT07 700 A ABS 74,8 CV, 55 kw 2cil. RM171 BU21 Bastidores: RM171 henceforth00301-- 2017
Yamaha MT07 700 A Moto Cage ABS 48 CV, 35 kw 2cil. RM048 1XBE Bastidores: RM048 henceforth02376-- 2014-2017
Yamaha MT07 700 A Moto Cage ABS 74,8 CV, 55 kw 2cil. - 1XB9 Bastidores: --- 2014-2017
Yamaha MT07 700 Moto Cage 48 CV, 35 kw 2cil. - 1WSG Bastidores: --- 2014-2016
Yamaha MT07 700 Moto Cage 74,8 CV, 55 kw 2cil. RM041 1WSA Bastidores: RM041 henceforth07386-- 2014-2016
Yamaha Tracer 700 ABS MTT690-A 74,8 CV, 55 kw 2cil. RM141 BC61 Bastidores: RM141 henceforth00080-- 2016-2017
Yamaha Tracer 700 ABS MTT690-A 74,8 CV, 55 kw 2cil. RM141 BC64 Bastidores: RM141 henceforth25103-- 2018
Yamaha Tracer 700 ABS MTT690-A 74,8 CV, 55 kw 2cil. RM142 B0K1 Bastidores: RM142 henceforth00090-- 2018
Yamaha Tracer 700 ABS MTT690-A 74,8 CV, 55 kw 2cil. RM144 B0K2 Bastidores: RM144 henceforth00301-- 2019
Yamaha Tracer 700 ABS MTT690-U 48 CV, 35 kw 2cil. RM151 BC62 Bastidores: RM151 henceforth00107-- 2016-2017
Yamaha Tracer 700 ABS MTT690-U 48 CV, 35 kw 2cil. RM151 BC65 Bastidores: RM151 henceforth05171-- 2018
Yamaha Tracer 700 ABS MTT690-U 48 CV, 35 kw 2cil. RM152 B1K1 Bastidores: RM152 henceforth00163-- 2018
Yamaha Tracer 700 ABS MTT690-U 48 CV, 35 kw 2cil. RM154 B1K2 Bastidores: RM154 henceforth00141-- 2019
Yamaha XSR 700 ABS 74,8 CV, 55 kw 2cil. RM111 B341 Bastidores: RM111 henceforth00070-- 2016
Yamaha XSR 700 ABS MTM690U 48 CV, 35 kw 2cil. RM121 B342 Bastidores: RM121 henceforth00101-- 2016
Yamaha XSR 700 Anniversary ABS 74,8 CV, 55 kw 2cil. RM111 B344 Bastidores: RM111 henceforth00099-- 2016
Yamaha XSR 700 Anniversary ABS MTM690-U 48 CV, 35 kw 2cil. RM121 B345 Bastidores: RM121 henceforth00182-- 2016
