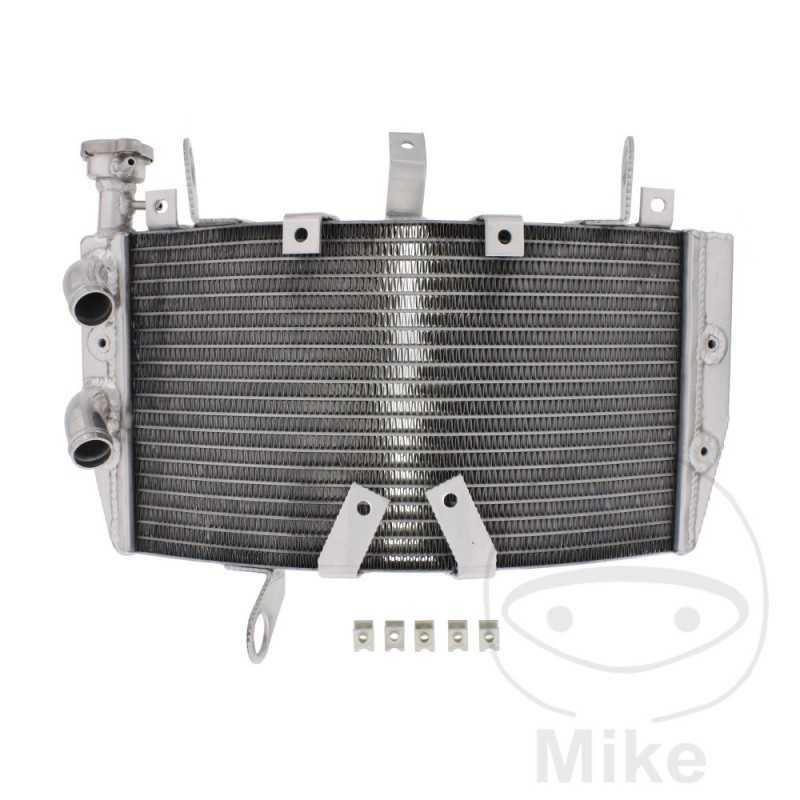

JMP Water radiator 776.01.79

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Ducati Monster 1200 25 th Anniversario ABS 147 CV, 108 kw 2cil. MA02AA/W9/MB01FA Bastidores: --- 2019-2020
Ducati Monster 1200 25 th Anniversario ABS 147 CV, 108 kw 2cil. MACFW0/1/2/3/4/5/6/7/8/9/X Bastidores: --- 2019-2020
Ducati Monster 1200 ABS 135 CV, 99 kw 2cil. M600AA/M601AA Bastidores: --- 2014
Ducati Monster 1200 ABS 135 CV, 99 kw 2cil. M601AA Bastidores: --- 2015
Ducati Monster 1200 ABS 135 CV, 99 kw 2cil. M601AA/M602FA Bastidores: --- 2016
Ducati Monster 1200 ABS 147 CV, 108 kw 2cil. MA02AA Bastidores: --- 2020-2021
Ducati Monster 1200 ABS 147 CV, 108 kw 2cil. MA02AA/MA02W1/MB01FA Bastidores: --- 2018
Ducati Monster 1200 ABS 147 CV, 108 kw 2cil. MA02AA/MB01FA Bastidores: --- 2017
Ducati Monster 1200 ABS 147 CV, 108 kw 2cil. MA02AA/W3/MB01FA Bastidores: --- 2019
Ducati Monster 1200 R ABS 152 CV, 112 kw 2cil. MA00AA/MA01JA Bastidores: --- 2019
Ducati Monster 1200 R ABS 152 CV, 112 kw 2cil. MA00AA/MA01JA/MB00FA Bastidores: --- 2017-2018
Ducati Monster 1200 R ABS 160 CV, 118 kw 2cil. MA00AA/MA01JA/MB00FA Bastidores: --- 2016
Ducati Monster 1200 S ABS 145 CV, 106,6 kw 2cil. M600AA/M602FA/M603JA Bastidores: --- 2014-2016
Ducati Monster 1200 S ABS 147 CV, 108 kw 2cil. MA02AA/MB01FA Bastidores: --- 2017-2018
Ducati Monster 1200 S ABS 147 CV, 108 kw 2cil. MA02AA/MB01FA Bastidores: --- 2020-2021
Ducati Monster 1200 S ABS 147 CV, 108 kw 2cil. MA02AA/W0/2/5/6/MB01FA Bastidores: --- 2019
Ducati Monster 1200 S Stripes ABS 145 CV, 106,6 kw 2cil. M600AA/M602FA/M603JA Bastidores: --- 2015-2016
Ducati Monster 821 ABS 109 CV, 80 kw 2cil. MG35AA/MC00AA Bastidores: --- 2017
Ducati Monster 821 ABS 109 CV, 80 kw 2cil. MH00AA/MK35AA/MH00S1/4 Bastidores: --- 2018
Ducati Monster 821 ABS 109 CV, 80 kw 2cil. MH00AA/MK35AA/MK00ES/MH02ES Bastidores: --- 2021
Ducati Monster 821 ABS 109 CV, 80 kw 2cil. MH00AA/S3/S4/S6/S9/SX/MH02ES/MK00ES/MK35AA Bastidores: --- 2019
Ducati Monster 821 ABS 109 CV, 80 kw 2cil. MH00AA/S6/S8/MH02ES/MK00ES/MK35AA Bastidores: --- 2020
Ducati Monster 821 ABS 112 CV, 82 kw 2cil. M604AA/M605JA Bastidores: --- 2014-2016
Ducati Monster 821 ABS 48 CV, 35 kw 2cil. M701AA/M700FA Bastidores: --- 2014-2016
Ducati Monster 821 ABS 48 CV, 35 kw 2cil. MH00AA/MK35AA/MK00ES/MH02ES Bastidores: --- 2021
Ducati Monster 821 Dark ABS 109 CV, 80 kw 2cil. MH02ES/MK00ES Bastidores: --- 2020-2021
Ducati Monster 821 Dark ABS 112 CV, 82 kw 2cil. M604AA/M605JA Bastidores: --- 2014-2016
Ducati Monster 821 Dark ABS 48 CV, 35 kw 2cil. M701AA/M700FA Bastidores: --- 2014-2016
Ducati Monster 821 Stealth ABS 109 CV, 80 kw 2cil. MH00AA/MH02ES/MK00ES/MK35AA Bastidores: --- 2020
Ducati Monster 821 Stealth ABS 109 CV, 80 kw 2cil. MH00AA/MK35AA/MH02ES Bastidores: --- 2021
Ducati Monster 821 Stealth ABS 109 CV, 80 kw 2cil. MH00AA/S5/S9/MH02ES/MK00ES/MK35AA Bastidores: --- 2019
Ducati Monster 821 Stealth ABS 48 CV, 35 kw 2cil. MH00AA/MK35AA/MH02ES Bastidores: --- 2021
Ducati Monster 821 Stripe ABS 109 CV, 80 kw 2cil. MG35AA/MC00AA Bastidores: --- 2017
Ducati Monster 821 Stripe ABS 112 CV, 82 kw 2cil. M604AA/M605JA Bastidores: --- 2014-2016
Ducati Monster 821 Stripe ABS 48 CV, 35 kw 2cil. M701AA/M700FA Bastidores: --- 2014-2016
Ducati Supersport 939 ABS 110 CV, 81 kw 2cil. VA00AA/VA01JA Bastidores: --- 2017
Ducati Supersport 939 ABS 110 CV, 81 kw 2cil. VA00AA/VA01JA/VC35AA Bastidores: --- 2018
Ducati Supersport 939 S ABS 110 CV, 81 kw 2cil. VA00AA/VA01JA Bastidores: --- 2017
Ducati Supersport 939 S ABS 110 CV, 81 kw 2cil. VA00AA/VA01JA/VC35AA Bastidores: --- 2018
Ducati Supersport 950 ABS 110 CV, 81 kw 2cil. 1V00AA/3V35AA Bastidores: --- 2021-2022
Ducati Supersport 950 ABS 110 CV, 81 kw 2cil. VA00AA/VA1JA/VC35AA Bastidores: --- 2019
Ducati Supersport 950 ABS 110 CV, 81 kw 2cil. VA00AA/VC35AA Bastidores: --- 2020
Ducati Supersport 950 ABS 48 CV, 35 kw 2cil. 1V00AA/3V35AA Bastidores: --- 2022
Ducati Supersport 950 S ABS 110 CV, 81 kw 2cil. 1V00AA/3V35AA Bastidores: --- 2021
Ducati Supersport 950 S ABS 110 CV, 81 kw 2cil. 1V00AA/S9/3V35AA Bastidores: --- 2022
Ducati Supersport 950 S ABS 110 CV, 81 kw 2cil. VA00AA/S2/S3/VA1JA/VC35AA Bastidores: --- 2019
Ducati Supersport 950 S ABS 110 CV, 81 kw 2cil. VA00AA/S3/VA01JA/VC35AA Bastidores: --- 2020
Ducati Supersport 950 S ABS 48 CV, 35 kw 2cil. 1V00AA/S9/3V35AA Bastidores: --- 2022
