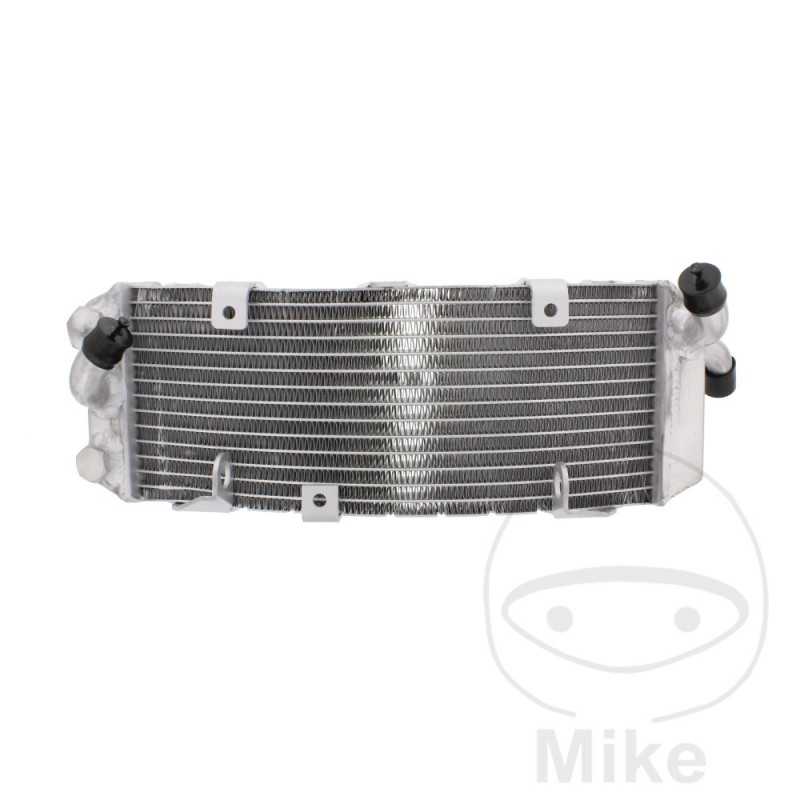

JMP Water radiator 776.01.73

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha XP 500 A Tmax ABS 44 CV, 33 kw 2cil. SJ034 5VU5 Bastidores: SJ034 henceforth00301-- 2005
Yamaha XP 500 A Tmax ABS 44 CV, 33 kw 2cil. SJ034 5VUB Bastidores: SJ034 henceforth03723-- 2006
Yamaha XP 500 A Tmax ABS 44 CV, 33 kw 2cil. SJ052 15B2 Bastidores: SJ052 henceforth00421-- 2007
Yamaha XP 500 A Tmax ABS 44 CV, 33 kw 2cil. SJ052 15B5 Bastidores: SJ052 henceforth01843-- 2007
Yamaha XP 500 TMax 44 CV, 33 kw 2cil. SJ031 5VU1 Bastidores: SJ031 henceforth00301-- 2004
Yamaha XP 500 TMax 44 CV, 33 kw 2cil. SJ031 5VU6 Bastidores: SJ031 henceforth13587-- 2005
Yamaha XP 500 TMax 44 CV, 33 kw 2cil. SJ031 5VUA Bastidores: SJ031 henceforth27001-- 2006
Yamaha XP 500 TMax 44 CV, 33 kw 2cil. SJ051 15B1 Bastidores: SJ051 henceforth00981-- 2007
Yamaha XP 500 TMax Black Max 44 CV, 33 kw 2cil. SJ031 5VU8 Bastidores: SJ031 henceforth26341-- 2006
Yamaha XP 500 TMax Black Max 44 CV, 33 kw 2cil. SJ051 15B4 Bastidores: SJ051 henceforth03496-- 2007
