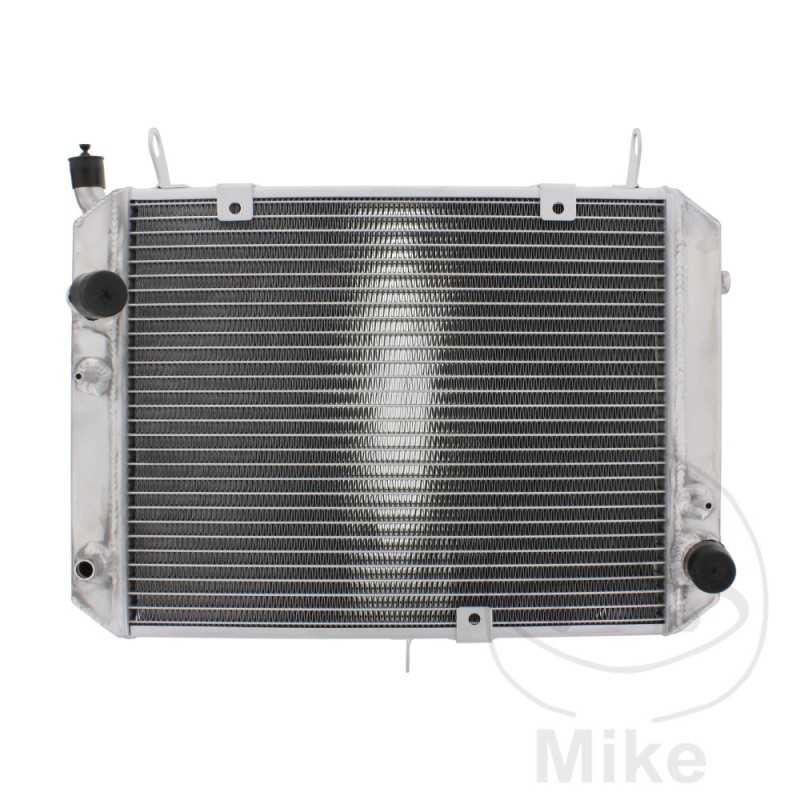

JMP Water radiator 776.01.61

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha FJR 1300 143,5 CV, 105,5 kw 4cil. RP081 5JWA Bastidores: RP081 henceforth00301-- 2003
Yamaha FJR 1300 143,5 CV, 105,5 kw 4cil. RP111 5JWG Bastidores: RP111 henceforth00301-- 2004
Yamaha FJR 1300 143,5 CV, 105,5 kw 4cil. RP111 5JWN Bastidores: RP111 henceforth00510-- 2005
Yamaha FJR 1300 145 CV, 106 kw 4cil. RP041 5JW1 Bastidores: RP041 henceforth00301-- 2001
Yamaha FJR 1300 145 CV, 106 kw 4cil. RP041 5JW4 Bastidores: RP041 henceforth08701-- 2002
Yamaha FJR 1300 A ABS 143,5 CV, 105,5 kw 4cil. RP085 5VS1 Bastidores: RP085 henceforth00301-- 2003
Yamaha FJR 1300 A ABS 143,5 CV, 105,5 kw 4cil. RP115 5VS7 Bastidores: RP115 henceforth00301-- 2004
Yamaha FJR 1300 A ABS 143,5 CV, 105,5 kw 4cil. RP115 5VSD Bastidores: RP115 henceforth05392-- 2005
Yamaha FJR 1300 A ABS 143,5 CV, 105,5 kw 4cil. RP115 5VSG Bastidores: RP115 henceforth08292-- 2005
