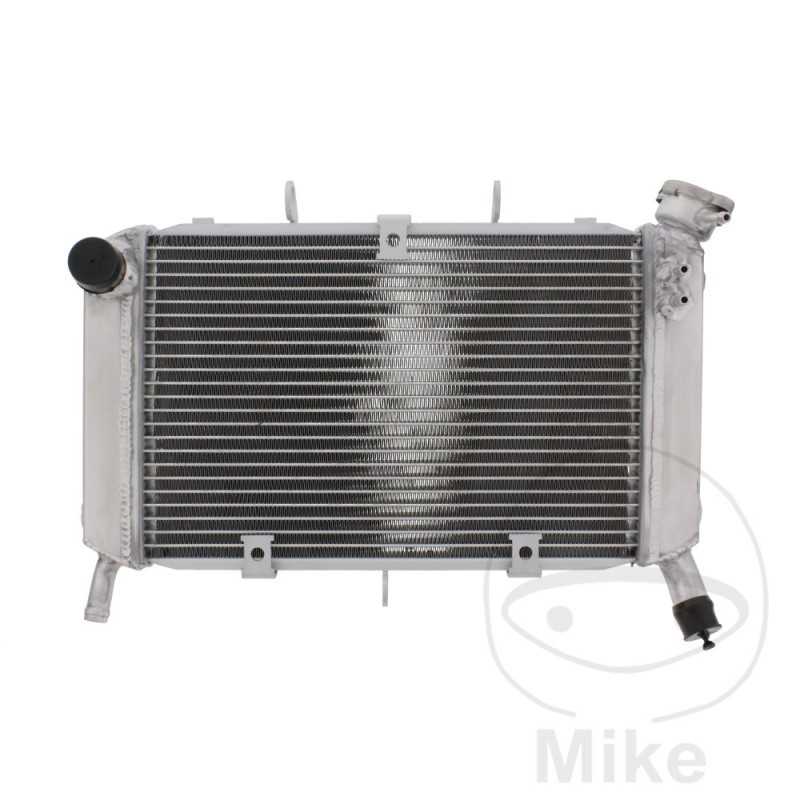

JMP Water radiator 776.01.56

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha FZ6 600 N 78 CV, 57 kw 4cil. RJ145 1B3D Bastidores: RJ145 henceforth00301-- 2007
Yamaha FZ6 600 NA ABS 78 CV, 57 kw 4cil. RJ14B 5S31 Bastidores: RJ14B henceforth00301-- 2007-2008
Yamaha FZ6 600 S Fazer 78 CV, 57 kw 4cil. RJ141 5VXL Bastidores: RJ141 henceforth00301-- 2007-2008
Yamaha FZ6 600 SA Fazer ABS 78 CV, 57 kw 4cil. RJ148 4P53 Bastidores: RJ148 henceforth00301-- 2007-2008
Yamaha FZ6 S2 600 NAHG ABS 98 CV, 72 kw 4cil. RJ14D 5S41 Bastidores: RJ14D henceforth00301-- 2007
Yamaha FZ6 S2 600 NAHG ABS 98 CV, 72 kw 4cil. RJ14D 5S42 Bastidores: RJ14D henceforth00771-- 2008
Yamaha FZ6 S2 600 NAHG ABS 98 CV, 72 kw 4cil. RJ14D 5S43 Bastidores: RJ14D henceforth01637-- 2009-2010
Yamaha FZ6 S2 600 NAHG ABS 98 CV, 72 kw 4cil. RJ14D 5S44 Bastidores: RJ14D henceforth02084-- 2009-2010
Yamaha FZ6 S2 600 NHG 98 CV, 72 kw 4cil. RJ146 5S51 Bastidores: RJ146 henceforth01535-- 2007
Yamaha FZ6 S2 600 NHG 98 CV, 72 kw 4cil. RJ146 5S53 Bastidores: RJ146 henceforth09785-- 2008
Yamaha FZ6 S2 600 NHG 98 CV, 72 kw 4cil. RJ146 5S55 Bastidores: RJ146 henceforth21397-- 2009-2010
Yamaha FZ6 S2 600 NHG 98 CV, 72 kw 4cil. RJ146 5S57 Bastidores: RJ146 henceforth22624-- 2009-2010
Yamaha FZ6 S2 600 SAHG Fazer ABS 98 CV, 72 kw 4cil. RJ149 5S21 Bastidores: RJ149 henceforth01041-- 2007
Yamaha FZ6 S2 600 SAHG Fazer ABS 98 CV, 72 kw 4cil. RJ149 5S22 Bastidores: RJ149 henceforth03681-- 2008
Yamaha FZ6 S2 600 SAHG Fazer ABS 98 CV, 72 kw 4cil. RJ149 5S23 Bastidores: RJ149 henceforth07842-- 2009-2010
Yamaha FZ6 S2 600 SHG Fazer 98 CV, 72 kw 4cil. RJ142 4S81 Bastidores: RJ142 henceforth00301-- 2007
Yamaha FZ6 S2 600 SHG Fazer 98 CV, 72 kw 4cil. RJ142 4S86 Bastidores: RJ142 henceforth09416-- 2008
Yamaha FZ6 S2 600 SHG Fazer 98 CV, 72 kw 4cil. RJ142 4S8B Bastidores: RJ142 henceforth17397-- 2009
