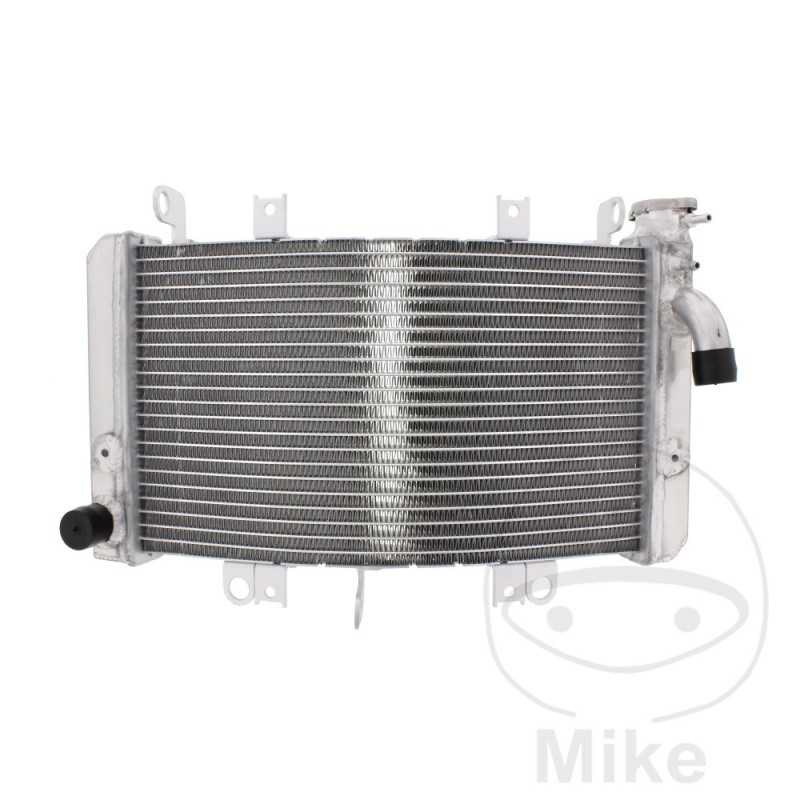

JMP Water radiator 776.01.55

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSX 1300 R Hayabusa 197 CV, 145 kw 4cil. WVCK1111 K8 Bastidores: CK1111 henceforth0100001-CK1111 henceforth0105310 2008
Suzuki GSX 1300 R Hayabusa 197 CV, 145 kw 4cil. WVCK1111 K9 Bastidores: CK1111 henceforth0105311-CK1111 henceforth0107274 2009
Suzuki GSX 1300 R Hayabusa 197 CV, 145 kw 4cil. WVCK1111 L0 Bastidores: CK1111 henceforth0107275-CK1111 henceforth0108349 2010
Suzuki GSX 1300 R Hayabusa 197 CV, 145 kw 4cil. WVCK1111 L1 Bastidores: CK1111 henceforth0108350-CK1111 henceforth0110090 2011
Suzuki GSX 1300 R Hayabusa 197 CV, 145 kw 4cil. WVCK1111 L2 Bastidores: CK1111 henceforth0110091-- 2012
Suzuki GSX 1300 RA Hayabusa ABS 197 CV, 145 kw 4cil. WVCK1116 L3 Bastidores: CK1116 henceforth0100001-CK1116 henceforth0101371 2013
Suzuki GSX 1300 RA Hayabusa ABS 197 CV, 145 kw 4cil. WVCK1116 L6 Bastidores: CK1116-G0100001-CK1116-G0109999 2016
Suzuki GSX 1300 RA Hayabusa ABS 197 CV, 145 kw 4cil. WVCK1116 L7 Bastidores: CK1116-H0100001-CK1116-H0109999 2017-2018
Suzuki GSX 1300 RAUF Hayabusa ABS 106 CV, 78 kw 4cil. WVCK2116 L3 Bastidores: CK2116 henceforth0100001-CK2116 henceforth0100169 2013
Suzuki GSX 1300 RAUF Hayabusa ABS 106 CV, 78 kw 4cil. WVCK2116 L6 Bastidores: CK2116-G0100001-CK2116-G0109999 2016
Suzuki GSX 1300 RAZ Hayabusa ABS 197 CV, 145 kw 4cil. WVCK1116 L4 Bastidores: CK1116 henceforth0101795-- 2014-2016
Suzuki GSX 1300 RAZUF Hayabusa ABS 106 CV, 78 kw 4cil. WVCK2116 L4 Bastidores: CK2116 henceforth0100170-- 2014-2016
Suzuki GSX 1300 RU2 Hayabusa 106 CV, 78 kw 4cil. WVCK2111 K8 Bastidores: CK2111 henceforth0100001-- 2008
Suzuki GSX 1300 RUF Hayabusa 106 CV, 78 kw 4cil. WVCK2111 K9 Bastidores: CK2111 henceforth0101525-CK2111 henceforth0102226 2009
Suzuki GSX 1300 RUF Hayabusa 106 CV, 78 kw 4cil. WVCK2111 L0 Bastidores: CK2111 henceforth0102227-CK2111 henceforth0102784 2010
Suzuki GSX 1300 RUF Hayabusa 106 CV, 78 kw 4cil. WVCK2111 L1 Bastidores: CK2111 henceforth0102785-CK2111 henceforth0103106 2011
Suzuki GSX 1300 RUF Hayabusa 106 CV, 78 kw 4cil. WVCK2111 L2 Bastidores: CK2111 henceforth0103107-- 2012
