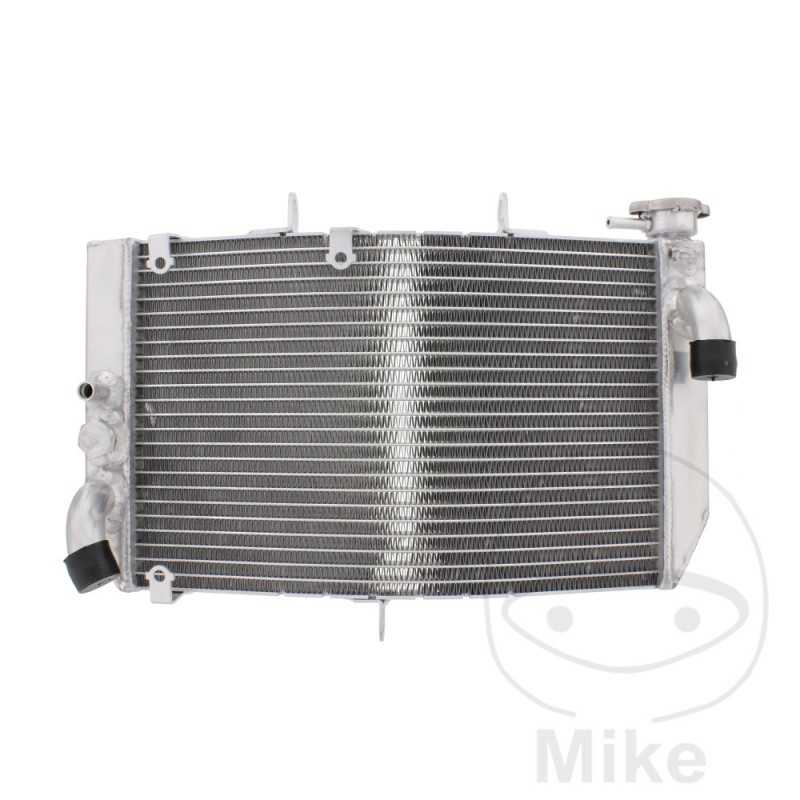

JMP Water radiator 776.01.42

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CBR 600 F 109 CV, 80 kw 4cil. PC35F 1 Bastidores: JH2 PC35F-1M200001-JH2 PC35F-1M299999 2001
Honda CBR 600 F 109 CV, 80 kw 4cil. PC35F 2 Bastidores: JH2 PC35F-2M300001-JH2 PC35F-2M399999 2002
Honda CBR 600 F 109 CV, 80 kw 4cil. PC35F 3 Bastidores: JH2 PC35F-3M400001-JH2 PC35F-3M499999 2003
Honda CBR 600 F 109 CV, 80 kw 4cil. PC35F 4 Bastidores: JH2 PC35F-4M500001-- 2004
Honda CBR 600 F 34 CV, 25 kw 4cil. PC35D 1 Bastidores: JH2 PC35D-1M200001-JH2 PC35D-1M299999 2001
Honda CBR 600 F 34 CV, 25 kw 4cil. PC35D 2 Bastidores: JH2 PC35D-2M300001-JH2 PC35D-2M399999 2002
Honda CBR 600 F 34 CV, 25 kw 4cil. PC35D 3 Bastidores: JH2 PC35D-3M400001-JH2 PC35D-3M499999 2003
Honda CBR 600 FR Rossi 109 CV, 80 kw 4cil. PC35H 1 Bastidores: JH2 PC35H-1M250001-JH2 PC35H-1M299999 2001
Honda CBR 600 FR Rossi 109 CV, 80 kw 4cil. PC35H 2 Bastidores: JH2 PC35H-2M310001-JH2 PC35H-2M319999 2002
Honda CBR 600 FS Sport 109 CV, 80 kw 4cil. PC35H 1 Bastidores: JH2 PC35H-1M200001-JH2 PC35H-1M249999 2001
Honda CBR 600 FS Sport 109 CV, 80 kw 4cil. PC35H 2 Bastidores: JH2 PC35H-2M300001-JH2 PC35H-2M309999 2002
