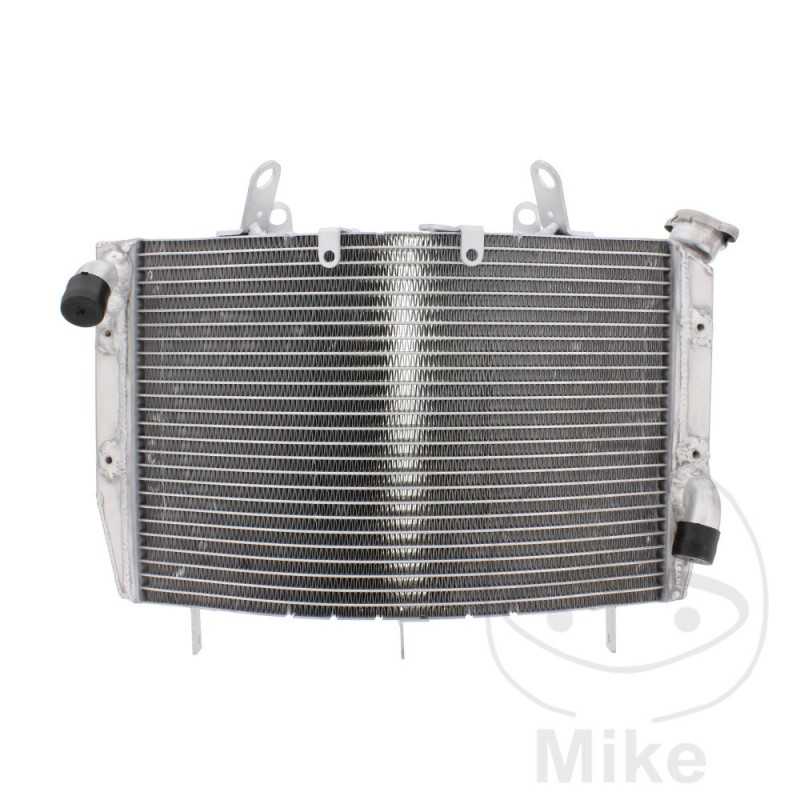

JMP Water radiator 776.01.34

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 13SL Bastidores: RJ155 henceforth00301-- 2010
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 13SV Bastidores: RJ155 henceforth02714-- 2011
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 1JSG Bastidores: RJ155 henceforth04386-- 2012
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 1JSU Bastidores: RJ155 henceforth05856-- 2013
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 2CX4 Bastidores: RJ155 henceforth07120-- 2014
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 2CXB Bastidores: RJ155 henceforth07100-- 2014
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 2CXE Bastidores: RJ155 henceforth08279-- 2015
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 2CXM Bastidores: RJ155 henceforth09069-- 2016-2017
Yamaha YZF-R6 600 129 CV, 95 kw 4cil. RJ151 13S1 Bastidores: RJ151 henceforth00301-- 2008
Yamaha YZF-R6 600 129 CV, 95 kw 4cil. RJ151 13SB Bastidores: RJ151 henceforth13030-- 2009
Yamaha YZF-R6 600 Anniversary 123,8 CV, 91 kw 4cil. RJ155 1JSL Bastidores: RJ155 henceforth04983-- 2012-2013
