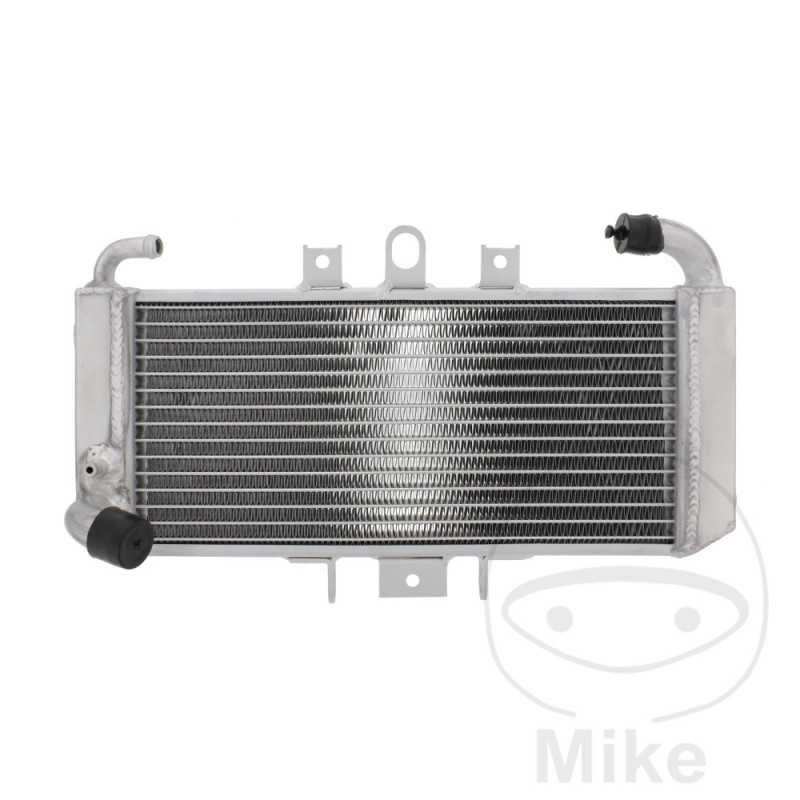

JMP Water radiator 776.01.30

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha FZS 600 H Fazer 95 CV, 70 kw 4cil. RJ021 5DM1 Bastidores: RJ021 henceforth00301-- 1998
Yamaha FZS 600 H Fazer 95 CV, 70 kw 4cil. RJ021 5DM4 Bastidores: RJ021 henceforth11417-- 1999
Yamaha FZS 600 H Fazer 95 CV, 70 kw 4cil. RJ021 5DM7 Bastidores: RJ021 henceforth38401-- 2000
Yamaha FZS 600 H Fazer 95 CV, 70 kw 4cil. RJ021 5DMC Bastidores: RJ021 henceforth62352-- 2001
Yamaha FZS 600 H Fazer 95 CV, 70 kw 4cil. RJ025 5RT1 Bastidores: RJ025 henceforth00301-- 2002
Yamaha FZS 600 H Fazer 95 CV, 70 kw 4cil. RJ025 5RT4 Bastidores: RJ025 henceforth14404-- 2003
Yamaha FZS 600 N Fazer 34 CV, 25 kw 4cil. RJ022 5DM2 Bastidores: RJ022 henceforth00301-- 1998
Yamaha FZS 600 N Fazer 34 CV, 25 kw 4cil. RJ022 5DM5 Bastidores: --- 1999
Yamaha FZS 600 N Fazer 34 CV, 25 kw 4cil. RJ022 5DMD Bastidores: --- 2001
Yamaha FZS 600 N Fazer 34 CV, 25 kw 4cil. RJ025 5RT2 Bastidores: --- 2002
Yamaha FZS 600 N Fazer 34 CV, 25 kw 4cil. RJ025 5RT5 Bastidores: --- 2003
Yamaha FZS 600 N Fazer 34 CV,25 kw 4cil. RJ022 5DM8 Bastidores: RJ022 henceforth01501-- 2000
Yamaha FZS 600 SH Fazer 95 CV, 70 kw 4cil. RJ021 5DMA Bastidores: RJ021 henceforth48105-- 2000
Yamaha FZS 600 SH Fazer 95 CV, 70 kw 4cil. RJ021 5DMF Bastidores: RJ021 henceforth64676-- 2001
Yamaha FZS 600 SN Fazer 34 CV, 25 kw 4cil. RJ022 5DMB Bastidores: RJ022 henceforth01542-- 2000
Yamaha FZS 600 SN Fazer 34 CV, 25 kw 4cil. RJ022 5DMG Bastidores: --- 2001
