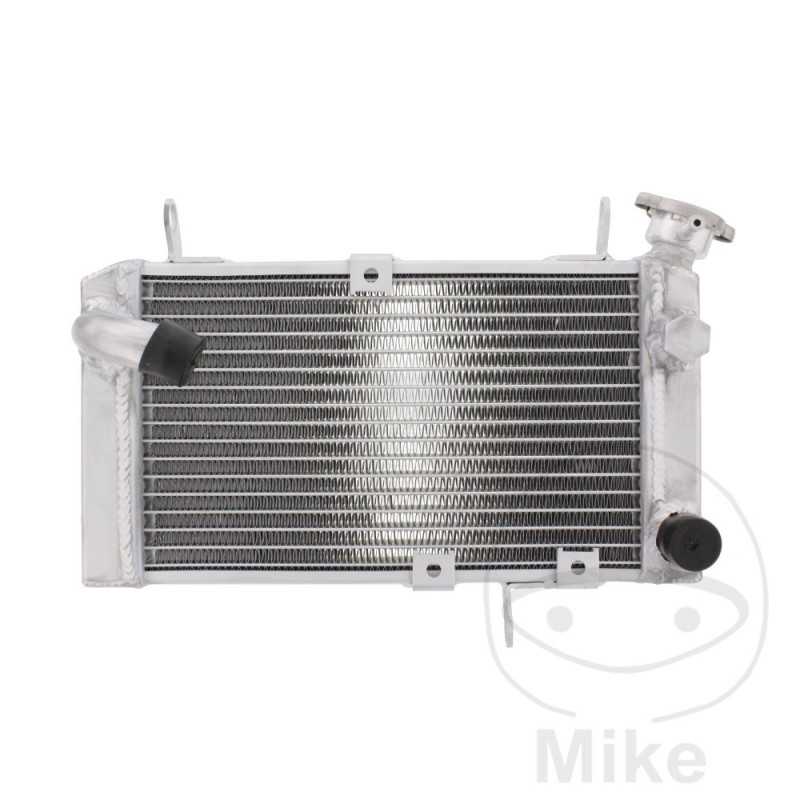

JMP Water radiator 776.01.26

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki SV 650 71 CV, 52 kw 2cil. AV1331 K1 Bastidores: AV1331 henceforth0112706-AV1331 henceforth0121036 2001
Suzuki SV 650 71 CV, 52 kw 2cil. AV1331 K2 Bastidores: AV1331 henceforth0121037-- 2002
Suzuki SV 650 71 CV, 52 kw 2cil. AV1331 X Bastidores: AV1331 henceforth0100001-AV1331 henceforth0105060 1999
Suzuki SV 650 71 CV, 52 kw 2cil. AV1331 Y Bastidores: AV1331 henceforth0105061-AV1331 henceforth0105150 2000
Suzuki SV 650 71 CV, 52 kw 2cil. AV1331 Y Bastidores: AV1331 henceforth0105333-AV1331 henceforth0112705 2000
Suzuki SV 650 S 71 CV, 52 kw 2cil. AV1111 K1 Bastidores: AV1111 henceforth0115905-AV1111 henceforth0124698 2001
Suzuki SV 650 S 71 CV, 52 kw 2cil. AV1111 K2 Bastidores: AV1111 henceforth0124699-- 2002
Suzuki SV 650 S 71 CV, 52 kw 2cil. AV1111 X Bastidores: AV1111 henceforth0100001-AV1111 henceforth0105442 1999
Suzuki SV 650 S 71 CV, 52 kw 2cil. AV1111 Y Bastidores: AV1111 henceforth0105443-AV1111 henceforth0105562 2000
Suzuki SV 650 S 71 CV, 52 kw 2cil. AV1111 Y Bastidores: AV1111 henceforth0105934-AV1111 henceforth0115904 2000
Suzuki SV 650 SU 34 CV, 25 kw 2cil. AV2111 K1 Bastidores: AV2111 henceforth0100843-AV2111 henceforth0101026 2001
Suzuki SV 650 SU 34 CV, 25 kw 2cil. AV2111 K2 Bastidores: AV2111 henceforth0101027-- 2002
Suzuki SV 650 SU 34 CV, 25 kw 2cil. AV2111 X Bastidores: AV2111 henceforth0100001-AV2111 henceforth0100387 1999
Suzuki SV 650 SU 34 CV, 25 kw 2cil. AV2111 Y Bastidores: AV2111 henceforth0100388-AV2111 henceforth0100842 2000
Suzuki SV 650 U 34 CV, 25 kw 2cil. AV2231 K1 Bastidores: AV2231 henceforth0100668-AV2231 henceforth0100822 2001
Suzuki SV 650 U 34 CV, 25 kw 2cil. AV2231 K2 Bastidores: AV2231 henceforth0100823-- 2002
Suzuki SV 650 U 34 CV, 25 kw 2cil. AV2231 X Bastidores: AV2231 henceforth0100001-AV2231 henceforth0100369 1999
Suzuki SV 650 U 34 CV, 25 kw 2cil. AV2231 Y Bastidores: AV2231 henceforth0100370-AV2231 henceforth0100667 2000
