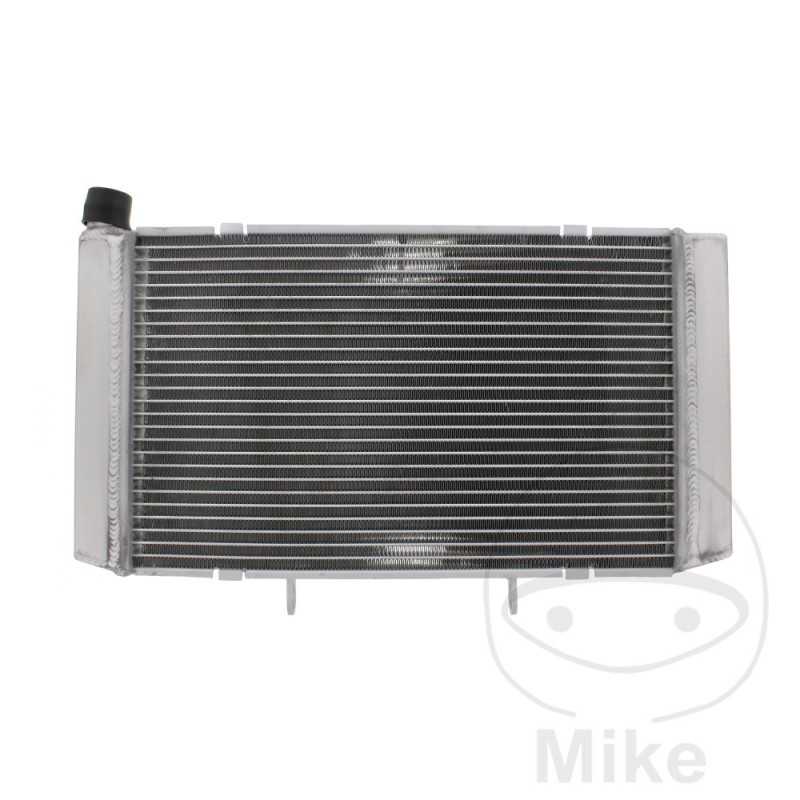

JMP Water radiator 776.01.24

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 600 F Hornet 102 CV, 75 kw 4cil. - D Bastidores: --- 2013-2015
Honda CB 600 F Hornet 102 CV, 75 kw 4cil. PC41A 7 Bastidores: ZDC PC41A henceforth7F000001-ZDC PC41A henceforth7F099999 2007
Honda CB 600 F Hornet 102 CV, 75 kw 4cil. PC41A 8 Bastidores: ZDC PC41A henceforth8F050001-ZDC PC41A henceforth8F999999 2008
Honda CB 600 F Hornet 102 CV, 75 kw 4cil. PC41A 9 Bastidores: ZDC PC41A henceforth9F075001-- 2009
Honda CB 600 F Hornet 102 CV, 75 kw 4cil. PC41A A Bastidores: ZDC PC41A henceforthAF090001-ZDC PC41A henceforthAF099999 2010
Honda CB 600 F Hornet 102 CV, 75 kw 4cil. PC41E B Bastidores: ZDC PC41E henceforthBF100001-ZDC PC41E henceforthBF199999 2011
Honda CB 600 F Hornet 102 CV, 75 kw 4cil. PC41E C Bastidores: ZDC PC41E henceforthCF115001-ZDC PC41E henceforthCF199999 2012
Honda CB 600 F Hornet 34 CV, 25 kw 4cil. PC41B 7 Bastidores: ZDC PC41B henceforth7F000001-ZDC PC41B henceforth7F099999 2007
Honda CB 600 F Hornet 34 CV, 25 kw 4cil. PC41B 8 Bastidores: ZDC PC41B henceforth8F050001-ZDC PC41B henceforth8F099999 2008
Honda CB 600 F Hornet 34 CV, 25 kw 4cil. PC41B 9 Bastidores: ZDC PC41B henceforth9F075001-- 2009
Honda CB 600 F Hornet 34 CV, 25 kw 4cil. PC41B A Bastidores: ZDC PC41B henceforthAF090001-ZDC PC41B henceforthAF099999 2010
Honda CB 600 FA Hornet ABS 102 CV, 75 kw 4cil. - D Bastidores: --- 2013-2015
Honda CB 600 FA Hornet ABS 102 CV, 75 kw 4cil. PC41C 7 Bastidores: ZDC PC41C henceforth7F000001-ZDC PC41C henceforth7F099999 2007
Honda CB 600 FA Hornet ABS 102 CV, 75 kw 4cil. PC41C 8 Bastidores: ZDC PC41C henceforth8F050001-ZDC PC41C henceforth8F999999 2008
Honda CB 600 FA Hornet ABS 102 CV, 75 kw 4cil. PC41C 9 Bastidores: ZDC PC41C henceforth9F075001-- 2009
Honda CB 600 FA Hornet ABS 102 CV, 75 kw 4cil. PC41C A Bastidores: ZDC PC41C henceforthAF090001-ZDC PC41C0-AF099999 2010
Honda CB 600 FA Hornet ABS 102 CV, 75 kw 4cil. PC41F B Bastidores: ZDC PC41F henceforthBF100001-ZDC PC41F henceforthBF199999 2011
Honda CB 600 FA Hornet ABS 102 CV, 75 kw 4cil. PC41F C Bastidores: ZDC PC41F henceforthCF115001-- 2012
Honda CB 600 FA Hornet ABS 34 CV, 25 kw 4cil. - D Bastidores: --- 2013-2015
Honda CB 600 FA Hornet ABS 34 CV, 25 kw 4cil. PC41D 7 Bastidores: ZDC PC41D henceforth7F000001-ZDC PC41D henceforth7F099999 2007
Honda CB 600 FA Hornet ABS 34 CV, 25 kw 4cil. PC41D 8 Bastidores: ZDC PC41D henceforth8F050001-ZDC PC41D henceforth8F999999 2008
Honda CB 600 FA Hornet ABS 34 CV, 25 kw 4cil. PC41D 9 Bastidores: ZDC PC41D henceforth9F075001-- 2009
Honda CB 600 FA Hornet ABS 34 CV, 25 kw 4cil. PC41D A Bastidores: ZDC PC41D henceforthAF090001-ZDC PC41D henceforthAF099999 2010
Honda CB 600 FA Hornet ABS 34 CV, 25 kw 4cil. PC41H B Bastidores: ZDC PC41H henceforthBF100001-ZDC PC41H henceforthBF199999 2011
Honda CB 600 FA Hornet ABS 34 CV, 25 kw 4cil. PC41H C Bastidores: ZDC PC41H henceforthCF115001-- 2012
Honda CBF 600 N 34 CV, 25 kw 4cil. PC43G 8 Bastidores: ZDC PC43G henceforth8F000001-- 2008
Honda CBF 600 N 34 CV, 25 kw 4cil. PC43G 9 Bastidores: ZDC PC43G henceforth9F030001-- 2009
Honda CBF 600 N 34 CV, 25 kw 4cil. PC43G A Bastidores: ZDC PC43G henceforthAF040001-- 2010
Honda CBF 600 N 78 CV, 57 kw 4cil. PC43E 8 Bastidores: ZDC PC43E henceforth8F000001-- 2008
Honda CBF 600 N 78 CV, 57 kw 4cil. PC43E 9 Bastidores: ZDC PC43E henceforth9F030001-- 2009
Honda CBF 600 N 78 CV, 57 kw 4cil. PC43E A Bastidores: ZDC PC43E henceforthAF040001-- 2010
Honda CBF 600 NA ABS 34 CV, 25 kw 4cil. PC43H 8 Bastidores: ZDC PC43H henceforth8F000001-- 2008
Honda CBF 600 NA ABS 34 CV, 25 kw 4cil. PC43H 9 Bastidores: ZDC PC43H henceforth9F030001-- 2009
Honda CBF 600 NA ABS 34 CV, 25 kw 4cil. PC43H A Bastidores: ZDC PC43H henceforthAF040001-- 2010-2012
Honda CBF 600 NA ABS 78 CV, 57 kw 4cil. PC43F 8 Bastidores: ZDC PC43F henceforth8F000001-- 2008
Honda CBF 600 NA ABS 78 CV, 57 kw 4cil. PC43F 9 Bastidores: ZDC PC43F henceforth9F030001-- 2009
Honda CBF 600 NA ABS 78 CV, 57 kw 4cil. PC43F A Bastidores: ZDC PC43F henceforthAF040001-- 2010-2013
Honda CBF 600 S 34 CV, 25 kw 4cil. PC43C 8 Bastidores: ZDC PC43C henceforth8F000001-- 2008
Honda CBF 600 S 34 CV, 25 kw 4cil. PC43C 9 Bastidores: ZDC PC43C henceforth9F030001-- 2009
Honda CBF 600 S 34 CV, 25 kw 4cil. PC43C A Bastidores: ZDC PC43C henceforthAF040001-- 2010
Honda CBF 600 S 78 CV, 57 kw 4cil. PC43A 8 Bastidores: ZDC PC43A henceforth8F000001-- 2008
Honda CBF 600 S 78 CV, 57 kw 4cil. PC43A 9 Bastidores: ZDC PC43A henceforth9F030001-- 2009
Honda CBF 600 S 78 CV, 57 kw 4cil. PC43A A Bastidores: ZDC PC43A henceforthAF040001-- 2010
Honda CBF 600 SA ABS 34 CV, 25 kw 4cil. PC43D 8 Bastidores: ZDC PC43D henceforth8F000001-- 2008
Honda CBF 600 SA ABS 34 CV, 25 kw 4cil. PC43D 9 Bastidores: ZDC PC43D henceforth9F030001-- 2009
Honda CBF 600 SA ABS 34 CV, 25 kw 4cil. PC43D A Bastidores: ZDC PC43D henceforthAF040001-- 2010-2013
Honda CBF 600 SA ABS 78 CV, 57 kw 4cil. PC43B 8 Bastidores: ZDC PC43B henceforth8F000001-- 2008
Honda CBF 600 SA ABS 78 CV, 57 kw 4cil. PC43B 9 Bastidores: ZDC PC43B henceforth9F030001-- 2009
Honda CBF 600 SA ABS 78 CV, 57 kw 4cil. PC43B A Bastidores: ZDC PC43B henceforthAF040001-- 2010-2013
