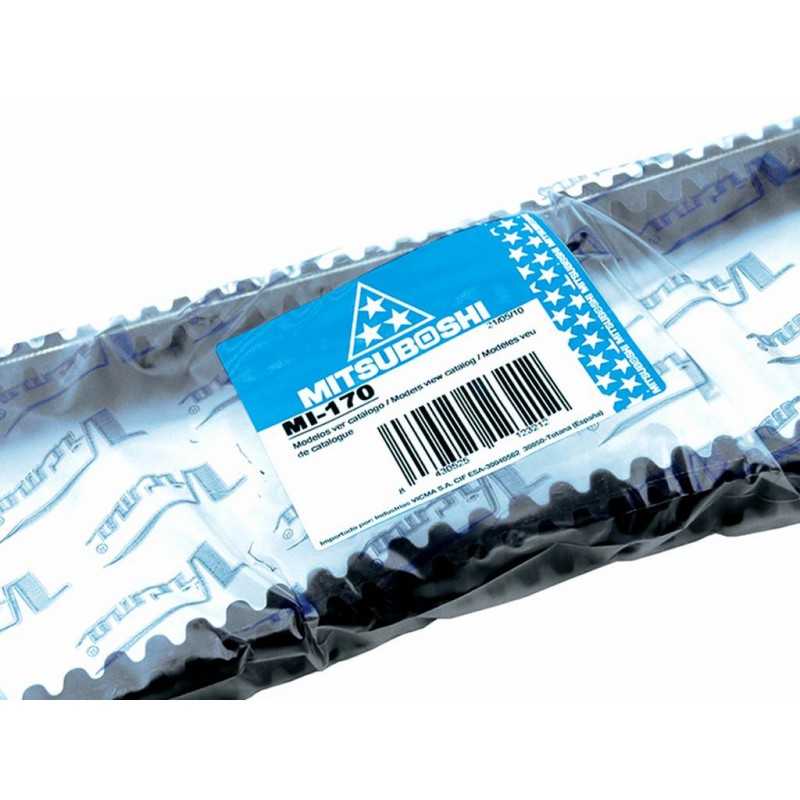

MITSUBOSHI BELT, DRIVE, TRANSMISSION MI060

MITSUBOSHI Belting, Ltd. "Belts that transmit power" is the motto of this Japanese colossus, a producer of belts since 1919, faithfully committed to their development.

Your product is positioned at the highest range, whether they are traditional, reinforced or double toothed belts.

Reliability and quality make manufacturers such as Yamaha, Suzuki and Piaggio choose Mitsuboshi as their original equipment supplier.

The traditional trapezoidal belt and the double-toothed belt are made of thread and rubber, reinforced with an ARAMID FIBER insert.

The fiber is mixed with the rubber, along the length of the belt, to contribute to a correct transmission of power and at the same time increase resistance to overheating and abrasion.

The serration reduces the stress caused by tensile flexing and heat build-up. The lateral cut allows an excellent seating of the belt on the transmission pulley.

The braiding is particularly resistant to eventual loads at certain points of the belt. Its interlocking reinforcement on the inside and outside of the belt increases the traction stability of the vehicle.

Thanks to an optimal contact surface, and unprecedented adhesion, Mitsuboshi belts guarantee power transmission efficiency that translates into ACCELERATION, RESPONSE and SILENCE.
LENGTH (MM): 871
WIDTH (MM): 23
HEIGHT (MM): 11.4
ÁNGULO ( ° ): 28
OEM REFERENCES: 4871702090
5DS1764100
5DS176410000
5NSE7641100
5XME764100
71700900
8550130
R16140631A0
COMPOSITION: ARAMIDE
STRAP QUALITY: STANDARD


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:
COMPATIBLE WITH APRILIA LEONARDO 250 250 1999-2001
COMPATIBLE WITH APRILIA LEONARDO 250 ST 250 2001
COMPATIBLE WITH APRILIA LEONARDO 300 300 2002-2005
COMPATIBLE WITH APRILIA SR 125 125 1999-2001
COMPATIBLE WITH APRILIA SR 150 150 1999-2001
COMPATIBLE WITH BENELLI VELVET 125 125 1999-2003
COMPATIBLE WITH BENELLI VELVET 125 TOURING 125 2002-2006
COMPATIBLE WITH BENELLI VELVET 150 150 1999-2003
COMPATIBLE WITH BENELLI VELVET 150 TOURING 150 2002-2007
COMPATIBLE WITH BENELLI VELVET 250 250 1999-2001
COMPATIBLE WITH BENELLI VELVET 250 4T LC 250 1999-2001
COMPATIBLE WITH BENELLI VELVET 250 TOURING 250 1999-2006
COMPATIBLE WITH ITALJET JUPITER 125 125 2001-2003
COMPATIBLE WITH ITALJET JUPITER 150 150 2001-2003
COMPATIBLE WITH ITALJET JUPITER 250 250 2001-2003
COMPATIBLE WITH ITALJET MILLENIUM 125 125 2000-2003
COMPATIBLE WITH ITALJET MILLENIUM 150 150 2000-2003
COMPATIBLE WITH MALAGUTI MADISON 125 125 1999-2004
COMPATIBLE WITH MALAGUTI MADISON R 125 125 2002-2004
COMPATIBLE WITH MALAGUTI MADISON S 250 250 1999-2003
COMPATIBLE WITH MALAGUTI MADISON T 150 150 1999-2003
COMPATIBLE WITH MALAGUTI PASSWORD 250 250 2005-2008
COMPATIBLE WITH MALAGUTI PHANTOM 125 MAX 125 2003
COMPATIBLE WITH MALAGUTI PHANTOM 150 MAX 125 2003-2004
COMPATIBLE WITH MBK SKYLINER 250 250 2000-2002
COMPATIBLE WITH YAMAHA MAJESTY 250 (SG04) 250 2000-2003
COMPATIBLE WITH YAMAHA MAJESTY 250 250 1998-1999
COMPATIBLE WITH YAMAHA MAJESTY 250 ABS (SG02) 250 1998-2000
COMPATIBLE WITH YAMAHA MAJESTY 250 ABS (SG04) 250 2001-2003
