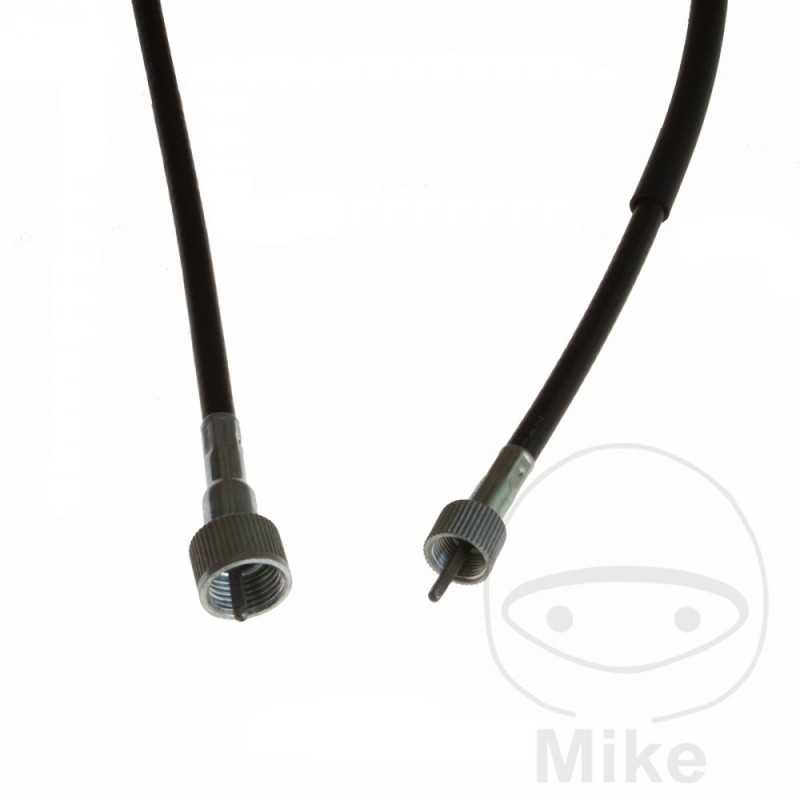

rev counter cable 734.01.77

Our trains and axles are predominantly manufactured in Europe

Smooth operation is enhanced with special oils, greases or coatings. For trains it is usually a high quality silicone oil used to reduce hand forces. This oil is permanently lubricated and does not dry out. Waves glide on a long-lasting calcium grease.

To increase our ability to deliver and decrease your inventory,

we have a merger for speedometer and tachometer shafts

certain lengths in increments of max. 4.5 cm made. the

means that some waves are up to 4.5 cm longer than the original wave.

Your advantage: With just a few waves you cover the entire program.
TYPE OF CONNECTION 1: A
1 INTERNAL CABLE CONNECTION: SQUARE 2.6 MM
CONNECTION 1 MEASURES: M12 MM
CONNECTION 1 SPECIALTIES: NO SPECIALTY
TYPE OF CONNECTION 2: A
CONNECTION 2 INNER CABLE: SQUARE 2.6 MM
CONNECTION 2 SIZES: M16 MM
CONNECTION 2 SPECIALTIES: NO SPECIALTY
LENGTH: 863MM
INTERNAL CABLE LENGTH: 900 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha RD 250 27 CV, 20 kw 2cil. 1A2 1N9 Bastidores: 1A2-300101-1A2-310000 1977
Yamaha RD 250 27 CV, 20 kw 2cil. 1A2 2R8 Bastidores: 1A2-220101-1A2-240000 1978
Yamaha RD 250 27 CV, 20 kw 2cil. 1A2 2R8 Bastidores: 1A2-430101-1A2-450000 1979
Yamaha RD 250 30 CV, 22 kw 2cil. 1A2 1N9 Bastidores: 1A2-300101-1A2-310000 1977
Yamaha RD 250 30 CV, 22 kw 2cil. 1A2 2R8 Bastidores: 1A2-220101-1A2-240000 1978
Yamaha RD 250 30 CV, 22 kw 2cil. 1A2 2R8 Bastidores: 1A2-430101-1A2-450000 1979
Yamaha RD 250 30/27 CV, 22/20 kw 2cil. 1A2 1A2 Bastidores: 1A2 henceforth00101-1A2-100000 1976
Yamaha RD 250 32/27 CV, 24/20 kw 2cil. 522 522 Bastidores: 522 henceforth00102-522-100000 1975
Yamaha RD 250 LC 27 CV, 20 kw 2cil. 4L1 4L1 Bastidores: 4L1 henceforth00101-4L1-100000 1980
Yamaha RD 250 LC 27 CV, 20 kw 2cil. 4L1 4L1 Bastidores: 4L1-300101-4L1-400000 1981
Yamaha RD 250 LC 27 CV, 20 kw 2cil. 4L1 4L2 Bastidores: 4L1-400101-4L1-500000 1981
Yamaha RD 250 LC 27 CV, 20 kw 2cil. 4L1 4L2 Bastidores: 4L1-530101-4L1-550000 1982-1983
Yamaha RD 250 LC 38 CV, 28 kw 2cil. 4L1 4L1 Bastidores: 4L1 henceforth00101-4L1-100000 1980
Yamaha RD 250 LC 38 CV, 28 kw 2cil. 4L1 4L1 Bastidores: 4L1-300101-4L1-400000 1981
Yamaha RD 250 LC 38 CV, 28 kw 2cil. 4L1 4L2 Bastidores: 4L1-400101-4L1-500000 1981
Yamaha RD 250 LC 38 CV, 28 kw 2cil. 4L1 4L2 Bastidores: 4L1-530101-4L1-550000 1982-1983
Yamaha RD 350 LC 46 CV, 34 kw 2cil. 4L0 4L0 Bastidores: 4L0-200101-4L0-250000 1982-1983
Yamaha RD 350 LC 49 CV, 36 kw 2cil. 4L0 4L0 Bastidores: 4L0 henceforth00101-4L0-100000 1980
Yamaha RD 350 LC 49 CV, 36 kw 2cil. 4L0 4L0 Bastidores: 4L0-100101-4L0-200000 1981
Yamaha XS 650 50 CV, 37 kw 2cil. 447 1U3 Bastidores: 447-450101-447-455000 1980
Yamaha XS 650 50 CV, 37 kw 2cil. 447 1U3 Bastidores: 447-460101-447-470000 1981-1983
Yamaha XS 650 50 CV, 37 kw 2cil. 447 1U3 Bastidores: 447-600101-- 1977-1978
Yamaha XS 650 50 CV, 37 kw 2cil. 447 1U3 Bastidores: 447-855101-447-860000 1979
Yamaha XS 650 50 CV, 37 kw 2cil. 447 447 Bastidores: 447-100101-- 1975-1976
Yamaha XS 650 SE Special 48 CV, 35 kw 2cil. 3L1 5E6 Bastidores: 3L1 henceforth40101-3L1 henceforth50000 1981-1983
Yamaha XS 650 SE US Custom 48 CV, 35 kw 2cil. 3L1 4G7 Bastidores: 3L1 henceforth20101-3L1 henceforth04000 1980
