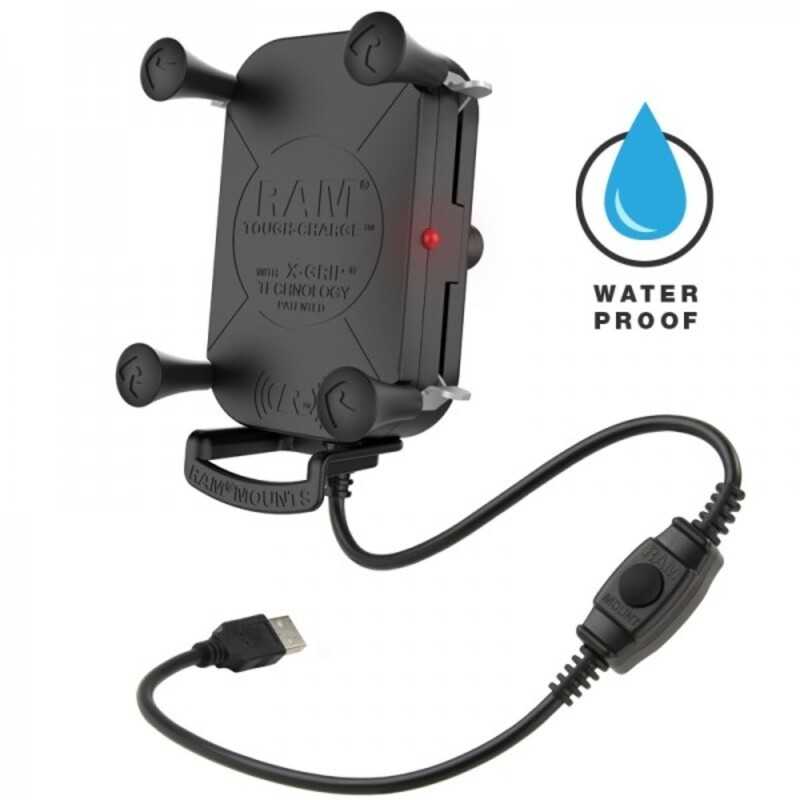

RAM Universal wireless charging stand X-GRIP WP WL 1104147

The RAM® Tough-Charge™ with X-Grip® Technology is the first patented universal waterproof wireless charging mount for phones. Engineered with RAM® X-Grip® spring technology, this mount features an X-shaped design that expands and contracts to secure almost any phone, while taking advantage of Qi wireless charging—on compatible phones. Its four arms have rubber-coated caps to keep the phone firmly in place, and its open design leaves the buttons and switches on the sides of the phone accessible. To place your device, simply squeeze the arms on one side of the base and put your phone inside before releasing the arms. This Qi wireless charging stand will take care of charging your phone, no matter what position you put it in. And for added security and peace of mind, a mounting bracket recommended for outdoor use is included. In addition, it has a support leg with which you can achieve the desired position, or directly remove it. This RAM Tough-Charge™ Wireless Charging Kit with X-Grip® Technology includes a Type B Diamond Base, which features a 1” rubber ball, perfect for attaching to the Type B Dual Ball RAM® Arm that you choose The Type A male pigtail has a built-in switch that allows the wireless charging module to be turned off when not in use. For in-vehicle charging, connect the connector to the included 1.2m extension cable.





INCLUDED MATERIAL:


(1) anchor bracket


(1) tube of glue for rubber caps


(1) support leg


(1) kickstand cover


(1) silicone sleeve for a waterproof USB connection


(1) 1.2 meter USB extension cable


(4) small flanges


(2) large flanges





SUPPORT MEASURES:


Width range: 60.3 to 76.2?mm


Depth range: 22.2mm max.





BALL/BALL JOINT MEASUREMENTS:


Type B, 2.54? cm in diameter (commonly used for loads from 0 to 2 kg).





Materials:


high strength compound


STAINLESS STEEL





PACKAGING TYPE:


Box





FEEDING:


Input:5?V, 2?A; 9?V, 1.67?A


Output: 5?W / 7.5?W / 10?W


Conversion Yield: 85?% max.


Maximum sheath thickness: 6?mm


Operating frequency: 110-205?kHz


Product Standard: WPC v.1.2.4


Qi-compatible


Compatible with QC2.0/QC3.0 power supplies





APPROVALS


Complies with FCC, IC, CE, e-Mark, WEEE, RCM and RoHS regulations.





WEIGHT:


0.54?kg





WARRANTY:


1 year warranty





ADDITIONAL INFORMATION:


Case size may affect compatibility. Not compatible with phone cases that contain metal. This mount will not charge phones without built-in wireless charging, such as the Apple iPhone 7 or Samsung Galaxy S5.





iPhone 12 products support a new proprietary wireless charging standard, which is not supported by this product. User experience may be affected by what is considered slower charging due to higher power consumption of iPhone 12 in certain use cases.
