SPRINGS, CLUTCH

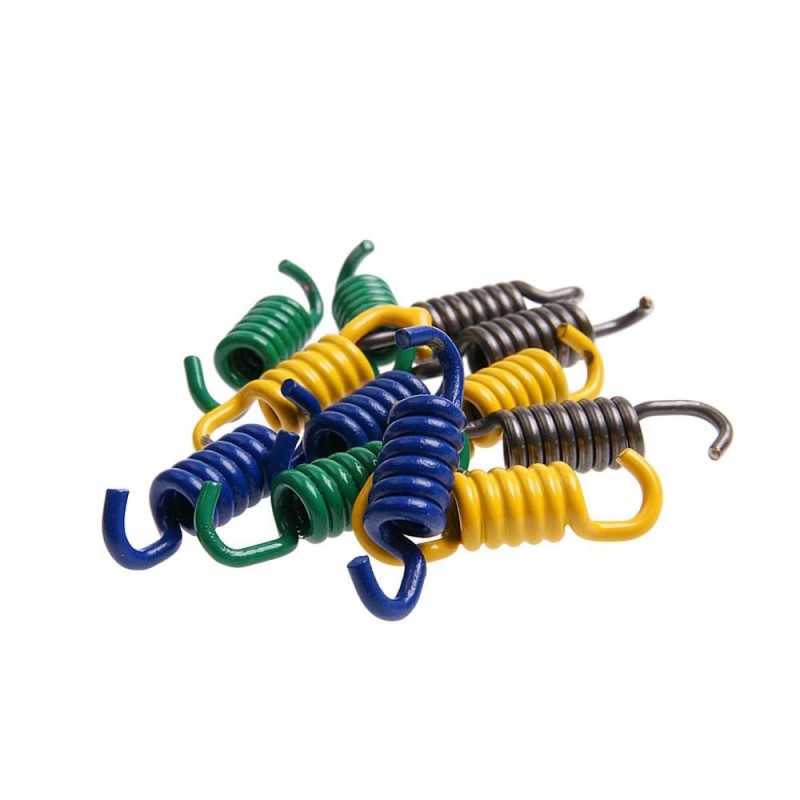

Set of contrast springs for Polini variators
Code: 245.030
Polini has created contrast springs for the rear mobile half-pulley to adapt them to the additional load due to elaborate engines that deliver more power and torque. Polini contrast springs prevent belt slippage and consequent premature wear by applying a variable additional load of 10% for Maxiscooters and 7% (White spring) or 15% (Blue spring) for 50 scooters. in any case, mount this type of springs only if strictly necessary, the best performance will in fact always be obtained using the spring which, with less load, allows optimal power transmission.
Features:
Spring color: Grey
Diameter: 1,7
Engagement at speed: 4000
Increase: 20
Spring color: Green
Diameter: 1,8
Engagement at speed: 5000
Increase: 35
Spring color: Yellow
Diameter: 1,9
Engagement at speed: 6000
Increase: 50
Spring color: Blue
Diameter: 2
Engagement at speed: 7000
Increase: 100


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
DERBI ATLANTIS 02, BULLET, CITY, TWO CHIC 50 Piaggio
DERBI ATLANTIS 50 4T Piaggio 2V
DERBI GP1 50 2001-2003
DERBI GP1 50 EURO2, OPEN, RACE dal 2005->
MALAGUTI CENTRO 50 4T 4 Valvole
MALAGUTI CIAK 50 4T 4 Valvole
CAGIVA CITY 50
PIAGGIO DIESIS
PIAGGIO EXTREM
PIAGGIO EXTREM LC
PIAGGIO FLY 50 2T
PIAGGIO FLY 50 4T 2V
PIAGGIO FLY 50 4T 4V Dal 2012
PIAGGIO FREE
PIAGGIO LIBERTY 50 2T
PIAGGIO LIBERTY 50 4T iGET 3V ie E3 (C541M) 16/17
PIAGGIO LIBERTY 50 4T iGET 3V ie E4 (CA11M) dal 2018
PIAGGIO MC2 50 (1998)
PIAGGIO NRG MC3 H2O
PIAGGIO NRG MC3 PURE JET
PIAGGIO NRG Power DD
PIAGGIO NRG, NTT, MC2
PIAGGIO QUARTZ
PIAGGIO TYPHOON 50 (2001-2010)
PIAGGIO TYPHOON 50 E2 dal 2011->
PIAGGIO ZIP 50 2T AIR
PIAGG
