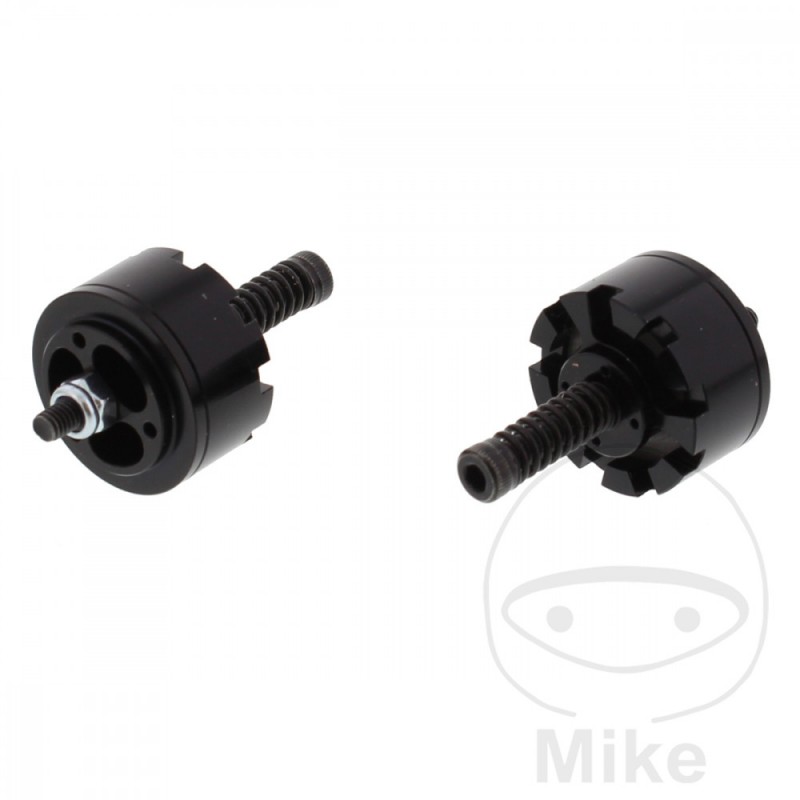

YSS SUSPENSION fork valve 265 7730504

Outer diameter 26.5mm

Fork Piston Bore Diameter: 19.5mm

Overall valve height: 14mm

YSS fork valving turns a conventional fork into a controlled feel with better road contact. CAD developed and hardened from extremely light 6061 T6 aluminum with 65 Rockwell.

Finely adjustable and usable for almost all fork diameters.

A sophisticated valve hole system changes the flow of oil in the fork in such a way that road contact and feedback is much more direct.

This gives the driver a sense of security and a feel for the road surface.

Area of Use: On-road, off-road, racing and touring applications.

The fork valves are prepared for the corresponding fork diameter.

Subsequent fine adjustment can be made by the amount of oil or other oil viscosity.

Operating principle:

The YSS fork valve is inserted between the piston rod and the fork spring. For this it is important to know in advance the inside diameter of the dip tube and the hole in the piston rod.

Fine adjustment of the fork valve is possible with little effort after installation:

The fork bridge should be released, the fork oil drained and the fork valve lifted up.

The adjustment screw can be re-tightened or loosened in 2-turn steps with an Allen key.

Remember to first turn the top screw and then tighten the bottom stop nut.


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CB 750 F BOL D´OR 79 CV, 58 KW 4CIL. RC04 A BASTIDORES: RC04-2116243-RC04-2125120 1980
COMPATIBLE WITHKAWASAKI GPZ 500 S 60/50/27 CV, 44/37/20 KW 2CIL. EX500A A1 BASTIDORES: EX500A henceforth00001-EX500A henceforth10500 1987
COMPATIBLE WITHKAWASAKI GPZ 550 A UNI TRAK 65 CV, 48 KW 4CIL. ZX550A 1 BASTIDORES: ZX550A henceforth00001-ZX550A henceforth09400 1984
COMPATIBLE WITHKAWASAKI GPZ 550 A UNI TRAK 65 CV, 48 KW 4CIL. ZX550A 2 BASTIDORES: ZX550A henceforth09401-ZX550A henceforth13800 1985
COMPATIBLE WITHKAWASAKI GPZ 550 A UNI TRAK 65 CV, 48 KW 4CIL. ZX550A 3 BASTIDORES: ZX550A henceforth13801-ZX550A henceforth15100 1986
COMPATIBLE WITHKAWASAKI GPZ 750 A UNI TRAK 87 CV, 64 KW 4CIL. ZX750A 3 BASTIDORES: ZX750A henceforth25501-- 1985
COMPATIBLE WITHKAWASAKI Z 550 H GP 62 CV, 46 KW 4CIL. KZ550H 1 BASTIDORES: KZ550H henceforth00001-KZ550H henceforth15000 1982
COMPATIBLE WITHKAWASAKI Z 550 H GP 62 CV, 46 KW 4CIL. KZ550H 2 BASTIDORES: KZ550H henceforth15001-KZ550H henceforth21297 1983
COMPATIBLE WITHKAWASAKI Z 550 H GP 62 CV, 46 KW 4CIL. KZ550H 2A BASTIDORES: KZ550H henceforth21298-- 1983
COMPATIBLE WITHKAWASAKI Z 750 GP UNI TRAK 87 CV, 64 KW 4CIL. ZX750A A1 BASTIDORES: ZX750A henceforth00001-- 1983-1984
COMPATIBLE WITHKAWASAKI ZR 550 B ZEPHYR 50/27 CV, 37/20 KW 4CIL. ZR550B 2 BASTIDORES: ZR550B henceforth04001-ZR550B henceforth12000 1991
COMPATIBLE WITHKAWASAKI ZX 750 E TURBO 112/100 CV, 82/74 KW 4CIL. ZX750E 1 BASTIDORES: ZX750E henceforth00001-ZX750E henceforth05500 1984
COMPATIBLE WITHKAWASAKI ZX 750 E TURBO 112/100 CV, 82/74 KW 4CIL. ZX750E 2 BASTIDORES: ZX750E henceforth05501-- 1985
COMPATIBLE WITHKAWASAKI ZX 750 E TURBO 112/100 CV, 82/74 KW 4CIL. ZX750EE 1 BASTIDORES: ZX750EE henceforth00001-ZX750EE henceforth06500 1984
COMPATIBLE WITHKAWASAKI ZX 750 E TURBO 112/100 CV, 82/74 KW 4CIL. ZX750EE 2 BASTIDORES: ZX750EE henceforth06501-- 1985
