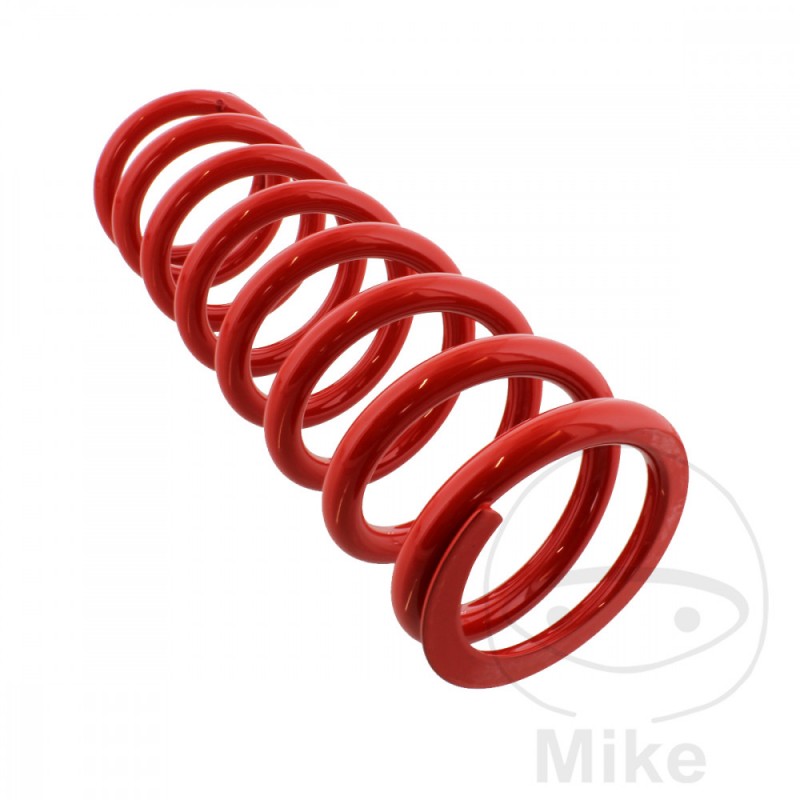

YSS SUSPENSION Shock absorber spring MX 48N 789.02.03

Linear wind up YSS spring.

above and below ground

powder coated

YSS MX mono springs are made from the best chrome silicon steel and therefore have outstanding spring properties.

characteristics and dimensions printed.
UPPER INTERNAL DIAMETER: 63 MM
BOTTOM INNER DIAMETER: 63 MM
VERSION: MONO
HARDNESS: 48N
MATERIAL: SILICON CARBON STEEL
LENGTH: 260MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Husqvarna FC 250 1cil. - Bastidores: --- 2014-2016
Husqvarna TC 125 38 CV, 28 kw 1cil. - Bastidores: --- 2014-2015
KTM SX 125 1cil. - Bastidores: --- 2017-2018
KTM SX 125 35 CV, 26 kw 1cil. - Bastidores: --- 2012-2016
KTM SX 150 1cil. - Bastidores: --- 2012-2015
KTM SX 250 56 CV, 41 kw 1cil. - Bastidores: --- 2012-2016
KTM SX-F 250 ie4T 39 CV, 29 kw 1cil. - Bastidores: --- 2011-2012
KTM SX-F 250 ie4T 44 CV, 32 kw 1cil. - Bastidores: --- 2013-2015
KTM SX-F 350 ie 4T 1cil. - Bastidores: --- 2017
KTM SX-F 350 ie 4T 48 CV, 35,4 kw 1cil. - Bastidores: --- 2012
KTM SX-F 350 ie 4T 52 CV, 38 kw 1cil. - Bastidores: --- 2011
KTM SX-F 350 ie 4T 54 CV, 40 kw 1cil. - Bastidores: --- 2013-2016
