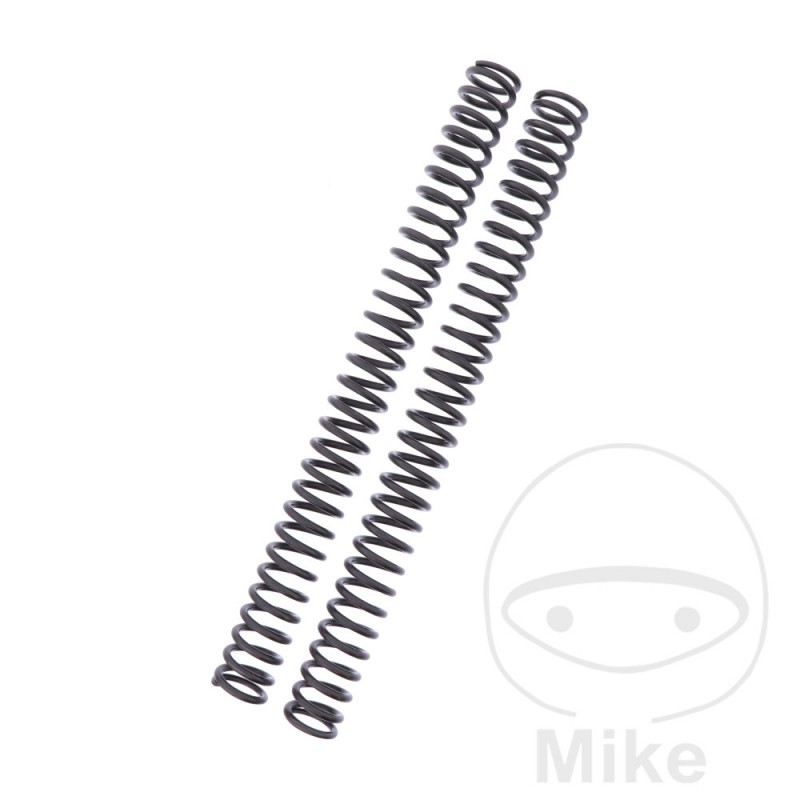

YSS SUSPENSION fork spring LINEAR 7.5 (2U) 743.05.76

YSS linear fork springs with a firmer design than the original.

YSS fork springs are made of high quality silicon spring steel. This allows the thickness of the wire to be reduced, which makes the spring more active and thinner, but at the same time effectively prevents twisting of the spring.

To minimize noise and improve oil flow in the fork, the springs are fully polished and ground on the top and bottom.

The scope of delivery includes 2 springs for a complete conversion of the fork.
SPRING TYPE: LINEAR
Length: 445mm
DIAMETER 1: 40MM
DIAMETER 2: 40MM
HARDNESS 1: 7.5 N/MM
LEFT AIR CHAMBER: 130-150 MM
RIGHT AIR CHAMBER: 130-150 MM
RECOMMENDED VISCOSITY: 10W


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Triumph Tiger 800 XC 95/48 CV, 70/35 kw 3cil. A08 Bastidores: SMTTRE11B8 --SMTTRE11B8 - 2011-2013
Triumph Tiger 800 XC ABS 95/48 CV, 70/35 kw 3cil. A08 Bastidores: SMTTRE16B8 - 674842-SMTTRE16B8 - 2015
Triumph Tiger 800 XC ABS 95/48 CV, 70/35 kw 3cil. A08 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 2011-2013
Triumph Tiger 800 XC ABS 95/48 CV, 70/35 kw 3cil. A08 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 2016-2017
Triumph Tiger 800 XC ABS 95/48 CV, 70/35 kw 3cil. A08 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 674841 2014
Triumph Tiger 800 XCA ABS 48 CV, 35 kw 3cil. A082 Bastidores: SMTTRE18B8 --SMTTRE18B8 - 855531 2015-2016
Triumph Tiger 800 XCA ABS 95 CV, 70 kw 3cil. A082 Bastidores: SMTTRE18B8 --SMTTRE18B8 - 855531 2015-2016
Triumph Tiger 800 XCX ABS 48 CV, 35 kw 3cil. A082 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 2015
Triumph Tiger 800 XCX ABS 48 CV, 35 kw 3cil. A082 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 855531 2016
Triumph Tiger 800 XCX ABS 95 CV, 70 kw 3cil. A082 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 2015
Triumph Tiger 800 XCX ABS 95 CV, 70 kw 3cil. A082 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 855531 2016
Triumph Tiger 800 XCX Low ABS 48 CV, 35 kw 3cil. A082 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 855531 2016
Triumph Tiger 800 XCX Low ABS 95 CV, 70 kw 3cil. A082 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 855531 2016
