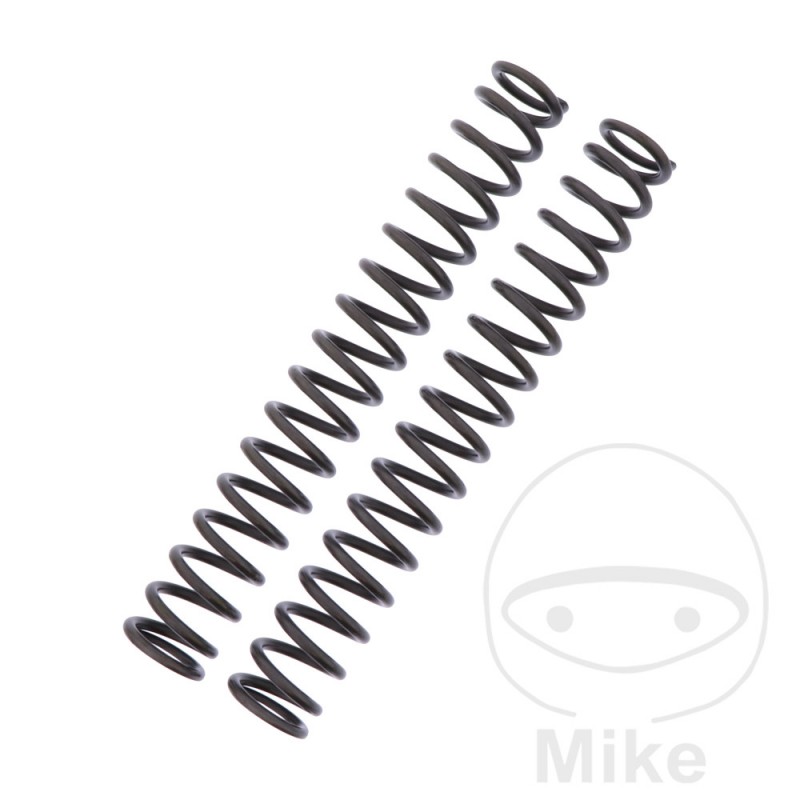

YSS SUSPENSION fork spring LINEAR 10.5 (2U) 743.05.11

YSS linear fork springs with a firmer design than the original.

YSS fork springs are made of high quality silicon spring steel. This allows the thickness of the wire to be reduced, which makes the spring more active and thinner, but at the same time effectively prevents twisting of the spring.

To minimize noise and improve oil flow in the fork, the springs are fully polished and ground on the top and bottom.

The scope of delivery includes 2 springs for a complete conversion of the fork.
SPRING TYPE: LINEAR
LENGTH: 250MM
DIAMETER 1: 36MM
HARDNESS 1: 10.5 N/MM
LEFT AIR CHAMBER: 130-140 MM
RIGHT AIR CHAMBER: 130-140 MM
RECOMMENDED VISCOSITY: 10W


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha FZ1 1000 N 150 CV, 110 kw 4cil. RN165 2D11 Bastidores: RN165 henceforth00301-- 2006
Yamaha FZ1 1000 N 150 CV, 110 kw 4cil. RN165 2D14 Bastidores: RN165 henceforth05705-- 2007
Yamaha FZ1 1000 N 150 CV, 110 kw 4cil. RN165 2D17 Bastidores: RN165 henceforth05786-- 2007
Yamaha FZ1 1000 N 150 CV, 110 kw 4cil. RN165 2D1B Bastidores: RN165 henceforth12454-- 2008
Yamaha FZ1 1000 N 150 CV, 110 kw 4cil. RN165 2D1E Bastidores: RN165 henceforth12510-- 2008
Yamaha FZ1 1000 N 150 CV, 110 kw 4cil. RN165 2D1J Bastidores: RN165 henceforth14792-- 2009
Yamaha FZ1 1000 N 150 CV, 110 kw 4cil. RN165 2D1M Bastidores: RN165 henceforth14852-- 2009
Yamaha FZ1 1000 N 150 CV, 110 kw 4cil. RN165 2D1R Bastidores: RN165 henceforth15861-- 2010
Yamaha FZ1 1000 N 150 CV, 110 kw 4cil. RN165 2D1U Bastidores: RN165 henceforth15895-- 2010
Yamaha FZ1 1000 N 150 CV, 110 kw 4cil. RN166 2D12 Bastidores: RN166 henceforth00301-- 2006
Yamaha FZ1 1000 N 150 CV, 110 kw 4cil. RN16H 1EC1 Bastidores: RN16H henceforth00301-- 2011
Yamaha FZ1 1000 N 150 CV, 110 kw 4cil. RN16H 1EC4 Bastidores: RN16H henceforth00855-- 2012-2015
Yamaha FZ1 1000 NA ABS 150 CV, 110 kw 4cil. RN16A 22C1 Bastidores: RN16A henceforth00732-- 2008
Yamaha FZ1 1000 NA ABS 150 CV, 110 kw 4cil. RN16A 22C3 Bastidores: RN16A henceforth00798-- 2008
Yamaha FZ1 1000 NA ABS 150 CV, 110 kw 4cil. RN16A 22C5 Bastidores: RN16A henceforth02172-- 2009
Yamaha FZ1 1000 NA ABS 150 CV, 110 kw 4cil. RN16A 22C7 Bastidores: RN16A henceforth02205-- 2009
Yamaha FZ1 1000 NA ABS 150 CV, 110 kw 4cil. RN16A 22C9 Bastidores: RN16A henceforth03232-- 2010
Yamaha FZ1 1000 NA ABS 150 CV, 110 kw 4cil. RN16A 22CB Bastidores: RN16A henceforth03381-- 2010
Yamaha FZ1 1000 NA ABS 150 CV, 110 kw 4cil. RN16R 22CD Bastidores: RN16R henceforth00301-- 2011
Yamaha FZ1 1000 NA ABS 150 CV, 110 kw 4cil. RN16R 22CF Bastidores: RN16R henceforth00676-- 2012-2015
Yamaha FZ1 1000 S Fazer 150 CV, 110 kw 4cil. RN161 1CA5 Bastidores: RN161 henceforth13389-- 2010
Yamaha FZ1 1000 S Fazer 150 CV, 110 kw 4cil. RN161 3C31 Bastidores: RN161 henceforth00381-- 2006
Yamaha FZ1 1000 S Fazer 150 CV, 110 kw 4cil. RN161 3C37 Bastidores: RN161 henceforth00301-- 2006
Yamaha FZ1 1000 S Fazer 150 CV, 110 kw 4cil. RN161 3C3A Bastidores: RN161 henceforth05655-- 2007
Yamaha FZ1 1000 S Fazer 150 CV, 110 kw 4cil. RN161 3C3H Bastidores: RN161 henceforth09498-- 2008
Yamaha FZ1 1000 S Fazer 150 CV, 110 kw 4cil. RN161 3C3P Bastidores: RN161 henceforth12295-- 2009
Yamaha FZ1 1000 S Fazer 150 CV, 110 kw 4cil. RN161 3C3X Bastidores: RN161 henceforth13257-- 2010
Yamaha FZ1 1000 S Fazer 150 CV, 110 kw 4cil. RN16D 1CA9 Bastidores: RN16D henceforth00301-- 2011
Yamaha FZ1 1000 S Fazer 150 CV, 110 kw 4cil. RN16D 1CAF Bastidores: RN16D henceforth00348-- 2011
Yamaha FZ1 1000 S Fazer 150 CV, 110 kw 4cil. RN16D 1CAK Bastidores: RN16D henceforth00519-- 2012-2015
Yamaha FZ1 1000 S GT Fazer 150 CV, 110 kw 4cil. RN161 3C3A Bastidores: RN161 henceforth05655-- 2007
Yamaha FZ1 1000 SA Fazer ABS 150 CV, 110 kw 4cil. RN168 5D01 Bastidores: RN168 henceforth00719-- 2007
Yamaha FZ1 1000 SA Fazer ABS 150 CV, 110 kw 4cil. RN168 5D03 Bastidores: RN168 henceforth03455-- 2008
Yamaha FZ1 1000 SA Fazer ABS 150 CV, 110 kw 4cil. RN168 5D05 Bastidores: RN168 henceforth05914-- 2009
Yamaha FZ1 1000 SA Fazer ABS 150 CV, 110 kw 4cil. RN168 5D07 Bastidores: RN168 henceforth06852-- 2010
Yamaha FZ1 1000 SA Fazer ABS 150 CV, 110 kw 4cil. RN168 5D09 Bastidores: RN168 henceforth06832-- 2010
Yamaha FZ1 1000 SA Fazer ABS 150 CV, 110 kw 4cil. RN16M 5D0B Bastidores: RN16M henceforth00301-- 2011
Yamaha FZ1 1000 SA Fazer ABS 150 CV, 110 kw 4cil. RN16M 5D0D Bastidores: RN16M henceforth00341-- 2011
Yamaha FZ1 1000 SA Fazer ABS 150 CV, 110 kw 4cil. RN16M 5D0F Bastidores: RN16M henceforth01018-- 2012-2015
Yamaha FZ1 1000 SA GT Fazer ABS 150 CV, 110 kw 4cil. RN168 5D01 Bastidores: RN168 henceforth00719-- 2007
Yamaha YZF-R1 1000 150 CV, 110 kw 4cil. RN011 4XV1 Bastidores: RN011 henceforth00301-- 1998
Yamaha YZF-R1 1000 150 CV, 110 kw 4cil. RN011 4XV7 Bastidores: RN011 henceforth09302-- 1999
Yamaha YZF-R1 1000 98 CV, 72 kw 4cil. RN012 4XV2 Bastidores: RN012 henceforth00301-- 1998
Yamaha YZF-R1 1000 98 CV, 72 kw 4cil. RN012 4XV8 Bastidores: RN012 henceforth04773-- 1999
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 13SL Bastidores: RJ155 henceforth00301-- 2010
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 13SV Bastidores: RJ155 henceforth02714-- 2011
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 1JSG Bastidores: RJ155 henceforth04386-- 2012
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 1JSU Bastidores: RJ155 henceforth05856-- 2013
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 2CX4 Bastidores: RJ155 henceforth07120-- 2014
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 2CXB Bastidores: RJ155 henceforth07100-- 2014
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 2CXE Bastidores: RJ155 henceforth08279-- 2015
Yamaha YZF-R6 600 129 CV, 95 kw 4cil. RJ151 13S1 Bastidores: RJ151 henceforth00301-- 2008
Yamaha YZF-R6 600 129 CV, 95 kw 4cil. RJ151 13SB Bastidores: RJ151 henceforth13030-- 2009
Yamaha YZF-R6 600 Anniversary 123,8 CV, 91 kw 4cil. RJ155 1JSL Bastidores: RJ155 henceforth04983-- 2012-2013
Yamaha YZF-R6 600 H 120 CV, 88 kw 4cil. RJ031 5EB1 Bastidores: RJ031 henceforth00301-- 1999
Yamaha YZF-R6 600 H 120 CV, 88 kw 4cil. RJ031 5EB5 Bastidores: RJ031 henceforth16277-- 2000
Yamaha YZF-R6 600 H 120 CV, 88 kw 4cil. RJ036 5MT1 Bastidores: RJ036 henceforth00301-- 2001
Yamaha YZF-R6 600 H 120 CV, 88 kw 4cil. RJ036 5MTB Bastidores: RJ036 henceforth14656-- 2002
Yamaha YZF-R6 600 N 98 CV, 72 kw 4cil. RJ032 5EB2 Bastidores: RJ032 henceforth00301-- 1999
Yamaha YZF-R6 600 N 98 CV, 72 kw 4cil. RJ032 5EB6 Bastidores: RJ032 henceforth01557-- 2000
Yamaha YZF-R6 600 N 98 CV, 72 kw 4cil. RJ037 5MT2 Bastidores: RJ037 henceforth00301-- 2001
Yamaha YZF-R6 600 N 98 CV, 72 kw 4cil. RJ037 5MTC Bastidores: RJ037 henceforth00714-- 2002
