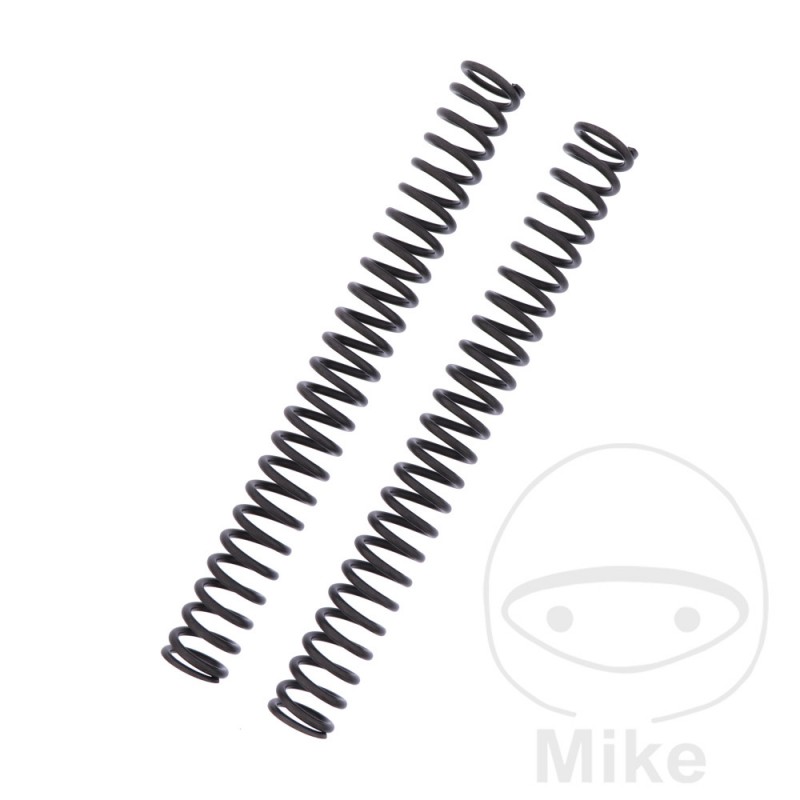

YSS SUSPENSION fork spring LINEAR 7.5 (2U) 743.04.52

YSS linear fork springs with a firmer design than the original.

YSS fork springs are made of high quality silicon spring steel. This allows the thickness of the wire to be reduced, which makes the spring more active and thinner, but at the same time effectively prevents twisting of the spring.

To minimize noise and improve oil flow in the fork, the springs are fully polished and ground on the top and bottom.

The scope of delivery includes 2 springs for a complete conversion of the fork.
SPRING TYPE: LINEAR
LENGTH: 325MM
DIAMETER 1: 35.5MM
DIAMETER 2: 35.5MM
HARDNESS 1: 7.5 N/MM
LEFT AIR CHAMBER: 100 MM
RIGHT AIR CHAMBER: 100 MM
RECOMMENDED VISCOSITY: 20W


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki Z 650 H ABS 48 CV, 35 kw 4cil. ER650HHDA HF Bastidores: ER650HHDA henceforth0151-ER650HHDA-15290 2017
Kawasaki Z 650 H ABS 48 CV, 35 kw 4cil. ER650HHDA JF Bastidores: ER650HHDA-15291-ER650HHDA-32940 2018
Kawasaki Z 650 H ABS 68 CV, 50,2 kw 4cil. ER650HHDA HF Bastidores: ER650HHDA henceforth0151-ER650HHDA-15290 2017
Kawasaki Z 650 H ABS 68 CV, 50,2 kw 4cil. ER650HHDA JF Bastidores: ER650HHDA-15291-ER650HHDA-32940 2018
