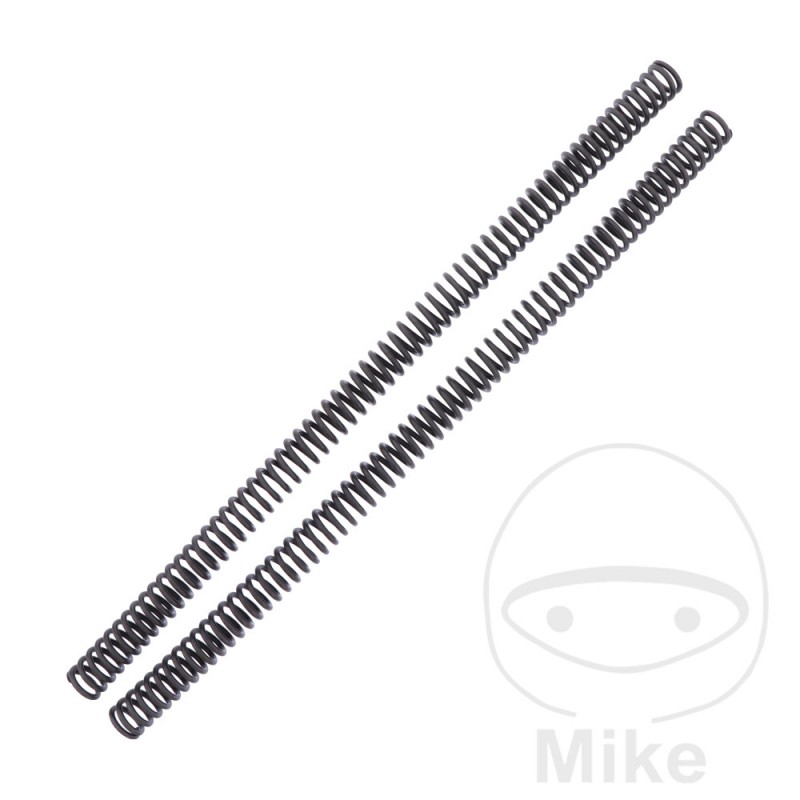

YSS SUSPENSION fork spring LINEAR 3.5 (2U) 743.03.02

YSS linear fork springs with a firmer design than the original.

YSS fork springs are made of high quality silicon spring steel. This allows the thickness of the wire to be reduced, which makes the spring more active and thinner, but at the same time effectively prevents twisting of the spring.

To minimize noise and improve oil flow in the fork, the springs are fully polished and ground on the top and bottom.

The scope of delivery includes 2 springs for a complete conversion of the fork.
SPRING TYPE: LINEAR
LENGTH: 630MM
DIAMETER 1: 31MM
HARDNESS 1: 3.5 N/MM
LEFT AIR CHAMBER: 160 MM
RIGHT AIR CHAMBER: 160 MM
RECOMMENDED VISCOSITY: 10W


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda XL 600 R 27 CV, 20 kw 1cil. PD03 F Bastidores: PD03-7000002-PD03-7099999 1985-1986
Honda XL 600 R 27 CV, 20 kw 1cil. PD03 H Bastidores: PD03-7100001-PD03-7199999 1987
Honda XL 600 R 45 CV, 33 kw 1cil. PD03 D Bastidores: PD03-5000015-PD03-5056013 1983-1984
Honda XL 600 R 45 CV, 33 kw 1cil. PD03 F Bastidores: PD03-5100010-PD03-5199999 1985-1986
Honda XL 600 R 45 CV, 33 kw 1cil. PD03 H Bastidores: PD03-5200001-PD03-5299999 1987
