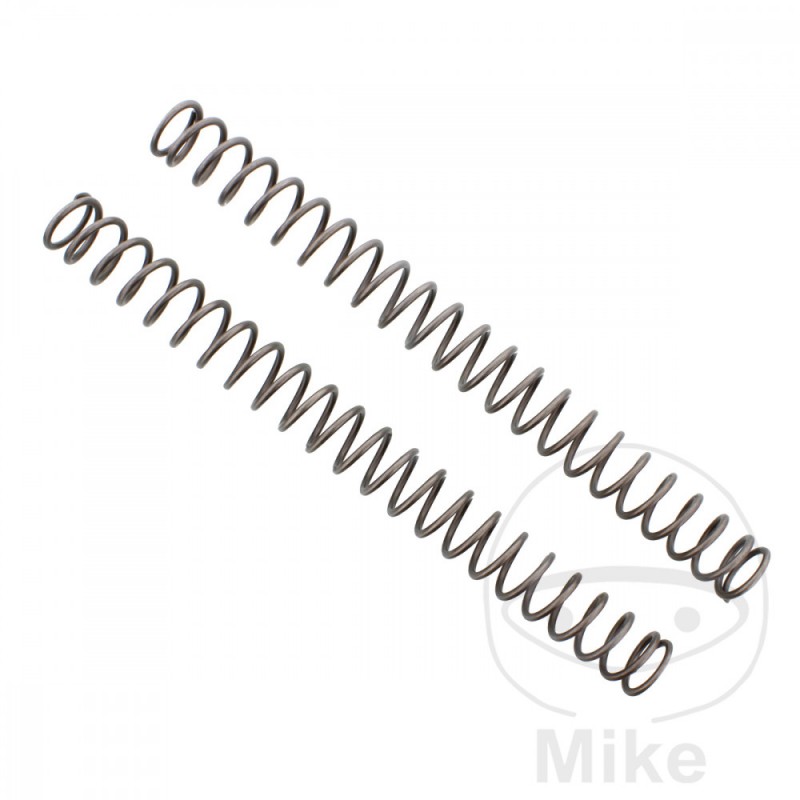

YSS SUSPENSION fork spring LINEAR 4.8 (2U) 743.02.22

YSS linear fork springs with a firmer design than the original.

YSS fork springs are made from high quality silicon spring steel. This makes it possible to reduce the thickness of the wire, which makes the spring more active and thinner, but at the same time effectively prevents twisting of the spring.

To minimize noise and improve oil flow in the fork, the springs are fully polished and ground on the top and bottom.

2 springs are included for a complete fork conversion.
SPRING TYPE: LINEAR
LENGTH: 455MM
DIAMETER 1: 43.5MM
HARDNESS 1: 4.8 N/MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Husqvarna CR 125 1cil. 4H00AA Bastidores: --- 2011-2011
Husqvarna CR 125 1cil. 4H00AA Bastidores: --- 2014-2014
Husqvarna CR 125 1cil. 4H00AA Bastidores: ZKH 4H00AA-9V050152-- 2010
Husqvarna CR 125 1cil. 4H00AA Bastidores: ZKH 4H00AA-CV050001-- 2012
Husqvarna CR 125 1cil. 4H00AA Bastidores: ZKH 4H00AA-DV050001-- 2013
Husqvarna FC 350 1cil. - Bastidores: --- 2015
Husqvarna FC 450 1cil. - Bastidores: --- 2015
Husqvarna TC 250 ie 1cil. A300AA Bastidores: ZKH A300AA-BV050000-- 2011
Husqvarna TC 250 ie 1cil. A300AA Bastidores: ZKH A300AA-CV050000-- 2012
Husqvarna TC 250 R ie 1cil. A300AA Bastidores: ZKH A300AA-DV050000-- 2013
Husqvarna TC 450 1cil. A202AA Bastidores: ZKH A202AA-AV050001-- 2010
KTM SX 125 35 CV, 26 kw 1cil. - Bastidores: --- 2007
KTM SX 250 56 CV, 41 kw 1cil. - Bastidores: --- 2007
KTM SX-F 250 4T 39 CV, 29 kw 1cil. - Bastidores: --- 2007
KTM SX-F 450 53 CV, 39 kw 1cil. - Bastidores: --- 2007
KTM SX-F 505 60 CV, 44 kw 1cil. - Bastidores: --- 2007
Yamaha WR 450 F 1cil. DJ031 1DX1 Bastidores: DJ031 henceforth00301-- 2012
Yamaha WR 450 F 1cil. DJ031 1DX6 Bastidores: DJ031 henceforth01264-- 2013
Yamaha WR 450 F 1cil. DJ031 1DXA Bastidores: DJ031 henceforth01848-- 2014
Yamaha WR 450 F 1cil. DJ031 1DXF Bastidores: DJ031 henceforth02107-- 2015
Yamaha YZ 125 1cil. CE16C 1SR6 Bastidores: CE16C henceforth20937-- 2013
Yamaha YZ 125 1cil. CE16C 1SRA Bastidores: CE16C henceforth22368-- 2014
Yamaha YZ 125 1cil. CE16C 1SRE Bastidores: CE16C henceforth02447-- 2015
Yamaha YZ 125 1cil. CE16C 1SRJ Bastidores: CE16C henceforth27164-- 2016
Yamaha YZ 125 1cil. CE16C 1SRN Bastidores: CE16C henceforth29632-- 2017
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1C36 Bastidores: CE16C henceforth00284-- 2006
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1C3A Bastidores: CE16C henceforth07439-- 2007
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1C3E Bastidores: CE16C henceforth10244-- 2008
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1C3J Bastidores: CE16C henceforth13131-- 2009
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1C3N Bastidores: CE16C henceforth15372-- 2010
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1C3T Bastidores: CE16C henceforth16971-- 2011
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1SR2 Bastidores: CE16C henceforth19022-- 2012
Yamaha YZ 250 2T 1cil. CG23C 1SS2 Bastidores: CG23C henceforth20132-- 2012
Yamaha YZ 250 2T 1cil. CG23C 1SS6 Bastidores: CG23C henceforth22096-- 2013
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. CG23C 1P86 Bastidores: CG23C henceforth00236-- 2006
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. CG23C 1P8A Bastidores: CG23C henceforth06796-- 2007
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. CG23C 1P8E Bastidores: CG23C henceforth10798-- 2008
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. CG23C 1P8J Bastidores: CG23C henceforth13575-- 2009
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. CG23C 1P8N Bastidores: CG23C henceforth16856-- 2010
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. CG23C 1P8T Bastidores: CG23C henceforth18172-- 2011
Yamaha YZ 450 F 60 CV, 44 kw 1cil. CJ10C 2S22 Bastidores: CJ10C henceforth00201-- 2006
Yamaha YZ 450 F 60 CV, 44 kw 1cil. CJ10C 2S28 Bastidores: CJ10C henceforth13321-- 2007
Yamaha YZ 450 F 60 CV, 44 kw 1cil. CJ10C 2S2C Bastidores: CJ10C henceforth24715-- 2008
Yamaha YZ 450 F 60 CV, 44 kw 1cil. CJ10C 34P2 Bastidores: CJ10C henceforth37372-- 2009
