TOURMAX fork repair kit 751.02.26

Tourmax fork repair kit

Made in Japan

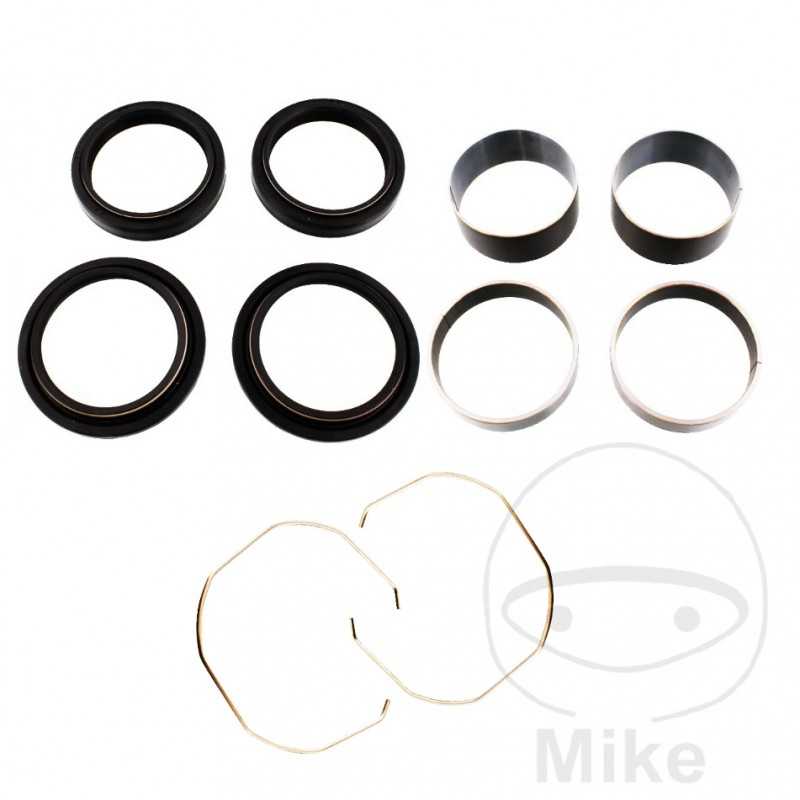

Contents:

2 fork sealing ring

2 dust seals

4 bushings

2 safety rings

Fork Joint Dimensions: 46X58X9.5/11.5mm

Inner Slide Bushing Dimensions: 46.5X20X1.5mm

External sliding sleeve dimensions: 50X12X2 mm.


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki KX 125 K 39,5 CV, 29 kw 1cil. KX125K 3 Bastidores: KX125K henceforth13001-KX125K-999999 1996
Kawasaki KX 125 K 39,5 CV, 29 kw 1cil. KX125K 4 Bastidores: KX125K henceforth20001-KX125K-999999 1997
Kawasaki KX 125 K 39,5 CV, 29 kw 1cil. KXRKCWA 5 Bastidores: KXRKCWA henceforth26001-KXRKCWA-999999 1998
Kawasaki KX 125 L 39,5 CV, 29 kw 1cil. KX125LLA 1 Bastidores: KX125LLA henceforth00001-KX125LLA-999999 1999
Kawasaki KX 125 L 39,5 CV, 29 kw 1cil. KX125LLA 2 Bastidores: KX125LLA henceforth09001-KX125LLA henceforth20000 2000
Kawasaki KX 125 L 39,5 CV, 29 kw 1cil. KX125LLA 3 Bastidores: KX125LLA henceforth20001-KX125LLA henceforth30000 2001
Kawasaki KX 250 K 2T 53,6 CV, 39,4 kw 1cil. KX250K 3 Bastidores: KX250K henceforth14001-KX250K-999999 1996
Kawasaki KX 250 K 2T 53,6 CV, 39,4 kw 1cil. KX250K 4 Bastidores: KX250K henceforth20001-KX250K-999999 1997
Kawasaki KX 250 K 2T 54,6 CV, 40,1 kw 1cil. KX250K 5 Bastidores: KX250K henceforth27001-KX250K-999999 1998
Kawasaki KX 250 L 2T 54,6 CV, 40,1 kw 1cil. KX250LLA 1 Bastidores: KX250LLA henceforth00001-KX250LLA henceforth11000 1999
Kawasaki KX 250 L 2T 54,6 CV, 40,1 kw 1cil. KX250LLA 2 Bastidores: KX250LLA henceforth11001-KX250LLA henceforth25000 2000
Kawasaki KX 250 L 2T 55,5 CV, 40,8 kw 1cil. KX250LLA 3 Bastidores: KX250LLA henceforth25001-KX250LLA henceforth36000 2001
Kawasaki KX 500 E 64,5 CV, 47,4 kw 1cil. KX500E 10 Bastidores: KX500E henceforth20001-KX500E henceforth23000 1998
Kawasaki KX 500 E 64,5 CV, 47,4 kw 1cil. KX500E 11 Bastidores: KX500E henceforth23001-KX500E henceforth28000 1999
Kawasaki KX 500 E 64,5 CV, 47,4 kw 1cil. KX500E 12 Bastidores: KX500E henceforth28001-KX500E henceforth30000 2000
Kawasaki KX 500 E 64,5 CV, 47,4 kw 1cil. KX500E 13 Bastidores: KX500E henceforth30001-KX500E henceforth32000 2001
Kawasaki KX 500 E 64,5 CV, 47,4 kw 1cil. KX500E 14 Bastidores: KX500E henceforth32001-KX500E-999999 2002
Kawasaki KX 500 E 64,5 CV, 47,4 kw 1cil. KX500E 9 Bastidores: KX500E henceforth17001-KX500E henceforth20000 1997
Kawasaki KX 500 E 64,5 CV, 47,4 kw 1cil. KX500EEA 15 Bastidores: KX500EEA henceforth35001-KX500EEA-999999 2003
Suzuki RM 250 54 CV, 40 kw 1cil. RJ18C K1 Bastidores: RJ18C-12100001-- 2001
Suzuki RM 250 54 CV, 40 kw 1cil. RJ18C K2 Bastidores: RJ18C-22100001-- 2002
Suzuki RM 250 54 CV, 40 kw 1cil. RJ18C K3 Bastidores: RJ18C-32100001-- 2003
Yamaha WR 250 F 38,7/28,6 CV, 28,5/21 kw 1cil. CG11W 5PH2 Bastidores: CG11W henceforth00101-- 2001
Yamaha WR 250 F 38,7/28,6 CV, 28,5/21 kw 1cil. CG11W 5PH6 Bastidores: CG11W henceforth04395-- 2002
Yamaha WR 250 F 38,7/28,6 CV, 28,5/21 kw 1cil. CG16W 5UM2 Bastidores: CG16W henceforth00029-- 2003
Yamaha WR 400 F 37 CV, 27 kw 1cil. CH02W 5BF2 Bastidores: CH02W henceforth00140-- 1998
Yamaha WR 400 F 37 CV, 27 kw 1cil. CH04W 5GS2 Bastidores: CH04W henceforth00101-- 1999
Yamaha WR 400 F 37 CV, 27 kw 1cil. CH04W 5GS6 Bastidores: CH04W henceforth08859-- 2000
Yamaha YZ 125 39 CV, 29 kw 1cil. 4SS 4SS1 Bastidores: 4SS henceforth00101-- 1996
Yamaha YZ 125 39 CV, 29 kw 1cil. 4XM 4XM1 Bastidores: 4XM henceforth01464-- 1997
Yamaha YZ 125 39 CV, 29 kw 1cil. 4XM 5DH2 Bastidores: 4XM henceforth11530-- 1998
Yamaha YZ 125 39 CV, 29 kw 1cil. CE03C 5ET2 Bastidores: CE03C henceforth00239-- 1999
Yamaha YZ 125 39 CV, 29 kw 1cil. CE05C 5HD2 Bastidores: CE05C henceforth00239-- 2000
Yamaha YZ 125 39 CV, 29 kw 1cil. CE08C 5MV2 Bastidores: CE08C henceforth01740-- 2001
Yamaha YZ 125 39 CV, 29 kw 1cil. CE09C 5NY2 Bastidores: CE09C henceforth00542-- 2002
Yamaha YZ 125 39 CV, 29 kw 1cil. CE10C 5UN2 Bastidores: CE10C henceforth00344-- 2003
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. 4SR 4SR1 Bastidores: 4SR henceforth00101-- 1996
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. 4XL 4XL1 Bastidores: 4XL henceforth01138-- 1997
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. 4XL 5DJ2 Bastidores: 4XL henceforth10483-- 1998
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. CG05C 5CU2 Bastidores: CG05C henceforth00242-- 1999
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. CG08C 5HC2 Bastidores: CG08C henceforth00207-- 2000
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. CG08C 5MW2 Bastidores: CG08C henceforth21348-- 2001
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. CG12C 5NX2 Bastidores: CG12C henceforth00185-- 2002
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. CG13C 5UP2 Bastidores: CG13C henceforth00134-- 2003
Yamaha YZ 250 F 4T 41,5 CV, 30,5 kw 1cil. CG10C 5NL2 Bastidores: CG10C henceforth04386-- 2001
Yamaha YZ 250 F 4T 41,5 CV, 30,5 kw 1cil. CG10C 5SG2 Bastidores: CG10C henceforth08691-- 2002
Yamaha YZ 250 F 4T 42 CV, 31 kw 1cil. CG14C 5UL2 Bastidores: CG14C henceforth00240-- 2003
Yamaha YZ 400 F 55 CV, 40 kw 1cil. CH01C 5BE2 Bastidores: CH01C henceforth00356-- 1998
Yamaha YZ 400 F 55 CV, 40 kw 1cil. CH03C 5GR2 Bastidores: CH03C henceforth00322-- 1999
Yamaha YZ 426 F 58 CV, 43 kw 1cil. CJ01C 5JG6 Bastidores: CJ01C henceforth11432-- 2001
Yamaha YZ 426 F 58 CV, 43 kw 1cil. CJ01C 5SF2 Bastidores: CJ01C henceforth23164-- 2002
Yamaha YZ 450 F 60 CV, 44 kw 1cil. CJ03C 5TA2 Bastidores: CJ03C henceforth00710-- 2003
