TOURMAX fork repair kit 751.02.24

Tourmax fork repair kit

Made in Japan

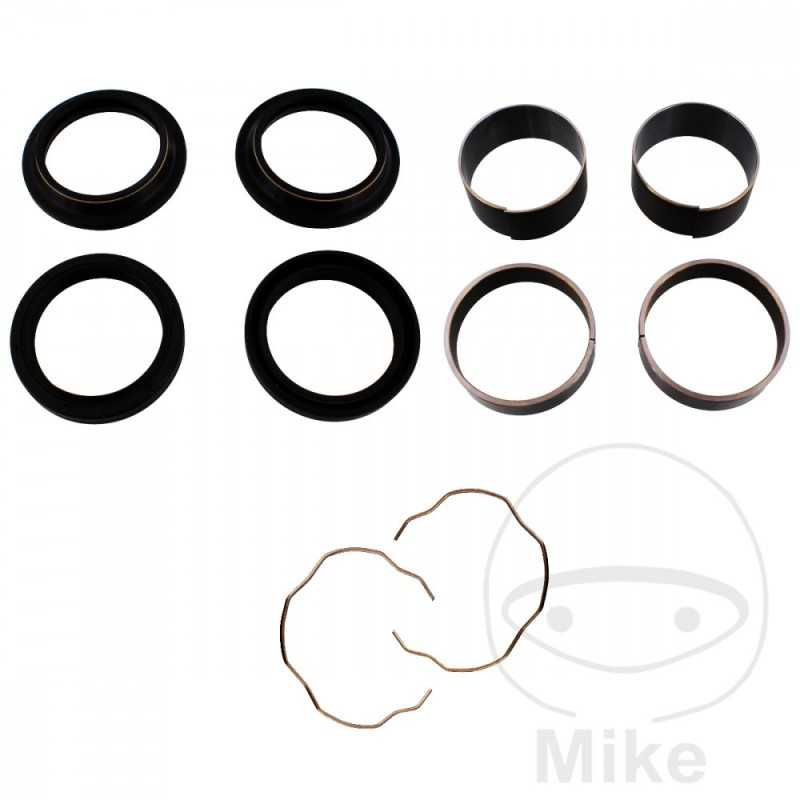

Contents:

2 fork sealing ring

2 dust covers

4 bushings

2 circlip

Fork Seal Dimensions: 43X55X9.5/10.5mm

Internal dimensions of sliding bushing: 43.5X20X1 mm

Outer sliding bushing dimensions: 47X12X2 mm


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CR 125 R 40 CV, 30 kw 1cil. JE01 R Bastidores: JE01-5500001-JE01-5503569 1994
Honda CR 125 R 40 CV, 30 kw 1cil. JE01 S Bastidores: JE01-5600001-JE01-5602273 1995
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A T Bastidores: JE01A-TM000006-- 1996
Honda CR 250 R 56 CV, 41 kw 1cil. ME03 S Bastidores: ME03-5700001-ME03-5702584 1995
Honda CR 500 R 65 CV, 48 kw 1cil. PE02 S Bastidores: PE02-5400001-PE02-5400422 1995
Kawasaki KLX 250 E 25 CV, 18,4 kw 1cil. LX250E 1 Bastidores: LX250E henceforth00001-LX250E henceforth08000 1993
Kawasaki KLX 250 E 25 CV, 18,4 kw 1cil. LX250E 2 Bastidores: LX250E 008001-LX250E 011000 1994
Kawasaki KLX 250 E 25 CV, 18,4 kw 1cil. LX250E 3 Bastidores: LX250E 011001-- 1995
Kawasaki KLX 250 R 17 CV, 13 kw 1cil. LX250D D2 Bastidores: LX250D henceforth02001-LX250D henceforth07000 1994
Kawasaki KLX 250 R 17 CV, 13 kw 1cil. LX250D D3 Bastidores: LX250D henceforth07001-LX250D henceforth13000 1995
Kawasaki KLX 250 R 17 CV, 13 kw 1cil. LX250D D4 Bastidores: LX250D henceforth13001-LX250D-999999 1996-1997
Kawasaki KLX 300 R 26 CV, 19 kw 1cil. LX300AAA A2 Bastidores: LX300AAA henceforth00001-LX300AAA henceforth03000 1997
Kawasaki KLX 300 R 26 CV, 19 kw 1cil. LX300AAA A3 Bastidores: LX300AAA henceforth03001-LX300AAA henceforth10000 1998
Kawasaki KLX 300 R 26 CV, 19 kw 1cil. LX300AAA A4 Bastidores: LX300AAA henceforth10001-LX300AAA henceforth16000 1999
Kawasaki KLX 300 R 26 CV, 19 kw 1cil. LX300AAA A5 Bastidores: LX300AAA henceforth16001-LX300AAA henceforth22000 2000
Kawasaki KLX 300 R 26 CV, 19 kw 1cil. LX300AAA A6 Bastidores: LX300AAA henceforth22001-LX300AAA-999999 2001
Kawasaki KLX 650 C 45/27 CV, 33/20 kw 1cil. LX650C 1 Bastidores: LX650C henceforth00001-LX650C henceforth15000 1993
Kawasaki KLX 650 C 45/34 CV, 33/25 kw 1cil. LX650C 2 Bastidores: LX650C henceforth15001-LX650C henceforth21000 1994
Kawasaki KLX 650 C 45/34 CV, 33/25 kw 1cil. LX650C 3 Bastidores: LX650C henceforth21001-LX650C-999999 1995
Kawasaki KLX 650 R 49/23 CV, 36/17 kw 1cil. LX650A A1 Bastidores: LX650A henceforth00001-LX650A henceforth06000 1993
Kawasaki KLX 650 R 49/23 CV, 36/17 kw 1cil. LX650A A2 Bastidores: LX650A henceforth06001-LX650A henceforth09000 1994
Kawasaki KLX 650 R 49/23 CV, 36/17 kw 1cil. LX650A A3 Bastidores: LX650A henceforth09001-LX650A-999999 1995
Kawasaki KX 125 H 1cil. KX125H 2 Bastidores: KX125H henceforth07001-KX125H-999999 1991
Kawasaki KX 125 J 1cil. KX125J 1 Bastidores: KX125J henceforth00001-KX125J henceforth07500 1992
Kawasaki KX 125 J 39,5 CV, 29 kw 1cil. KX125J 2 Bastidores: KX125J henceforth07501-KX125J-999999 1993
Kawasaki KX 125 K 39,5 CV, 29 kw 1cil. KX125K 1 Bastidores: KX125K henceforth00001-KX125K-999999 1994
Kawasaki KX 125 K 39,5 CV, 29 kw 1cil. KX125K 2 Bastidores: KX125K henceforth06001-KX125K-999999 1995
Kawasaki KX 250 H 2T 1cil. KX250H 2 Bastidores: KX250H henceforth06001-KX250H-999999 1991
Kawasaki KX 250 J 2T 1cil. KX250J 1 Bastidores: KX250J henceforth00001-KX250J henceforth07500 1992
Kawasaki KX 250 J 2T 53,6 CV, 39,4 kw 1cil. KX250J 2 Bastidores: KX250J henceforth07501-KX250J-999999 1993
Kawasaki KX 250 K 2T 53,6 CV, 39,4 kw 1cil. KX250K 1 Bastidores: KX250K henceforth00001-KX250K henceforth06000 1994
Kawasaki KX 250 K 2T 53,6 CV, 39,4 kw 1cil. KX250K 2 Bastidores: KX250K henceforth06001-KX250K-999999 1995
Kawasaki KX 500 E 1cil. KX500E 3 Bastidores: KX500E henceforth04001-KX500E henceforth07000 1991
Kawasaki KX 500 E 64,5 CV, 47,4 kw 1cil. KX500E 4 Bastidores: KX500E henceforth07001-KX500E henceforth08300 1992
Kawasaki KX 500 E 64,5 CV, 47,4 kw 1cil. KX500E 5 Bastidores: KX500E henceforth08301-KX500E henceforth10000 1993
Kawasaki KX 500 E 64,5 CV, 47,4 kw 1cil. KX500E 6 Bastidores: KX500E henceforth10001-KX500E henceforth11000 1994
Kawasaki KX 500 E 64,5 CV, 47,4 kw 1cil. KX500E 7 Bastidores: KX500E henceforth11001-KX500E henceforth15000 1995
Kawasaki KX 500 E 64,5 CV, 47,4 kw 1cil. KX500E 8 Bastidores: KX500E henceforth15001-KX500E henceforth17000 1996
Yamaha YZ 125 1cil. 3XJ 3XJ1 Bastidores: 3XJ henceforth00101-3XJ henceforth08000 1991
Yamaha YZ 125 1cil. 4DB 4DB1 Bastidores: 4DB henceforth00101-4DB henceforth07000 1992
Yamaha YZ 125 36 CV, 27 kw 1cil. 4EX 4EX1 Bastidores: 4EX henceforth00101-- 1993
Yamaha YZ 125 39 CV, 29 kw 1cil. 4JY 4JY1 Bastidores: 4JY henceforth00101-4JY henceforth08999 1994
Yamaha YZ 125 39 CV, 29 kw 1cil. 4PE 4PE1 Bastidores: 4PE henceforth00101-- 1995
Yamaha YZ 250 2T 51 CV, 37 kw 1cil. 3XK 3XK1 Bastidores: 3XK henceforth00101-3XK henceforth08000 1991
Yamaha YZ 250 2T 51 CV, 37 kw 1cil. 4DA 4DA1 Bastidores: 4DA henceforth00101-4DA henceforth06000 1992
Yamaha YZ 250 2T 51 CV, 37 kw 1cil. 4EW 4EW1 Bastidores: 4EW henceforth00101-- 1993
Yamaha YZ 250 2T 52 CV, 38 kw 1cil. 4JX 4JX1 Bastidores: 4JX henceforth00101-4JX henceforth08999 1994
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. 4MX 4MX1 Bastidores: 4MX henceforth00101-4MX henceforth06099 1995
