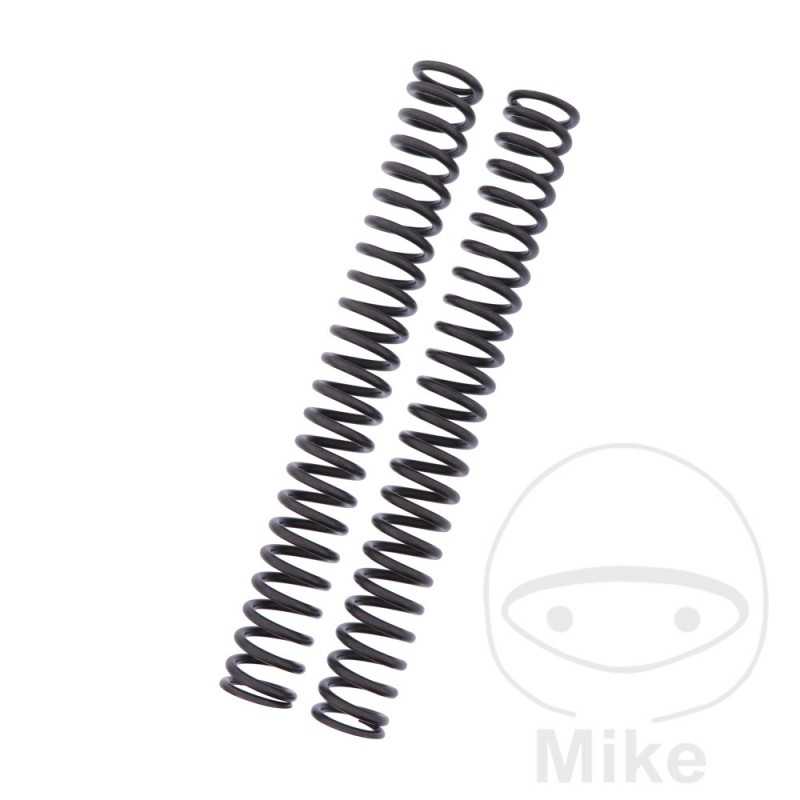

YSS SUSPENSION Linear fork spring kit 9.5 743.05.34

YSS linear fork springs with a firmer design than the original.

YSS fork springs are made from high quality silicon spring steel. This makes it possible to reduce the thickness of the wire, which makes the spring more active and thinner, but at the same time effectively prevents twisting of the spring.

To minimize noise and improve oil flow in the fork, the springs are fully polished and ground on the top and bottom.

2 springs are included for a complete fork conversion.
SPRING TYPE: LINEAR
LENGTH: 315MM
DIAMETER 1: 38MM
DIAMETER 2: 38MM
HARDNESS 1: 9.5 N/MM
LEFT AIR CHAMBER: 100-120 MM
RIGHT AIR CHAMBER: 100-120 MM
RECOMMENDED VISCOSITY: 10W


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Ducati 1198 1198 170 CV, 125 kw 2cil. H704AA/H705AA Bastidores: --- 2009-2011
Ducati 848 848 134 CV, 99 kw 2cil. H600AA/H601AA Bastidores: --- 2008-2010
Ducati 848 848 Evo 140 CV, 103 kw 2cil. H602AA/H603AA Bastidores: --- 2011-2013
Ducati 848 848 Evo Corse SE 140 CV, 103 kw 2cil. H602AA/H603AA Bastidores: --- 2012-2013
Ducati 848 848 Evo Dark 140 CV, 103 kw 2cil. H602AA/H603AA Bastidores: --- 2011-2013
