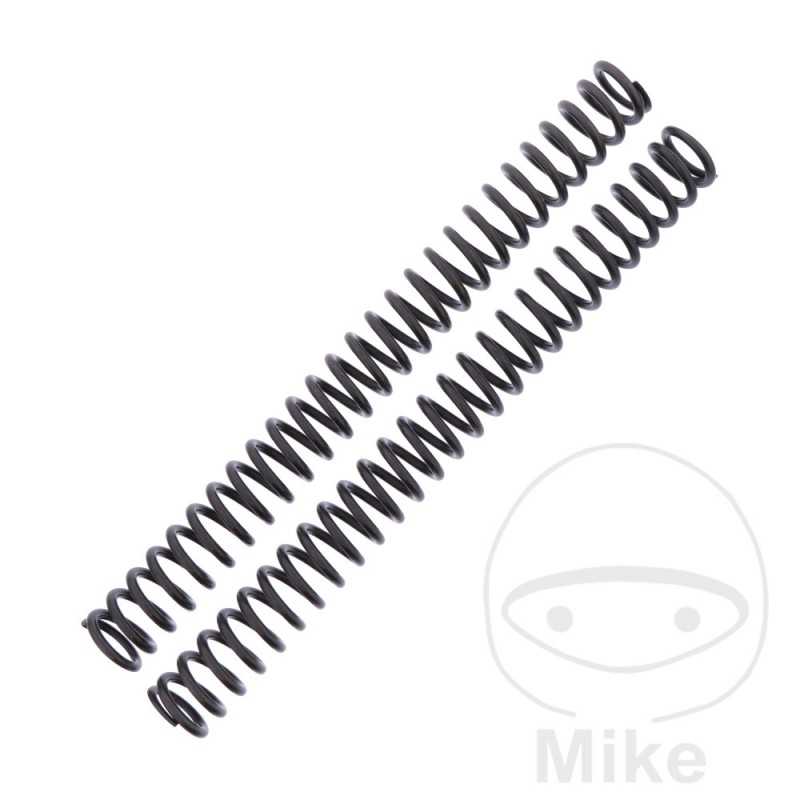

YSS SUSPENSION Linear fork spring kit 9.5 743.05.18

YSS linear fork springs with a firmer design than the original.

YSS fork springs are made of high quality silicon spring steel. This allows the thickness of the wire to be reduced, which makes the spring more active and thinner, but at the same time effectively prevents twisting of the spring.

To minimize noise and improve oil flow in the fork, the springs are fully polished and ground on the top and bottom.

The scope of delivery includes 2 springs for a complete conversion of the fork.
SPRING TYPE: LINEAR
LENGTH: 375MM
DIAMETER 1: 37MM
DIAMETER 2: 37MM
HARDNESS 1: 9 N/MM
LEFT AIR CHAMBER: 130-150 MM
RIGHT AIR CHAMBER: 130-150 MM
RECOMMENDED VISCOSITY: 10W


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSF 1200 Bandit 98 CV, 72 kw 4cil. GV75A T Bastidores: GV75A henceforth00500001-GV75A henceforth00510751 1996
Suzuki GSF 1200 Bandit 98 CV, 72 kw 4cil. GV75A V Bastidores: GV75A henceforth00510752-GV75A henceforth00523032 1997
Suzuki GSF 1200 Bandit 98 CV, 72 kw 4cil. GV75A W Bastidores: GV75A henceforth00523033-GV75A henceforth00533930 1998
Suzuki GSF 1200 Bandit 98 CV, 72 kw 4cil. GV75A X Bastidores: GV75A henceforth00533931-GV75A henceforth00547329 1999
Suzuki GSF 1200 Bandit 98 CV, 72 kw 4cil. GV75A Y Bastidores: GV75A henceforth00547330-- 2000
Suzuki GSF 1200 Bandit 98 CV, 72 kw 4cil. WVA91121 K1 Bastidores: A91121 henceforth0100001-A91121 henceforth0103940 2001
Suzuki GSF 1200 Bandit 98 CV, 72 kw 4cil. WVA91121 K2 Bastidores: A91121 henceforth0103941-A91121 henceforth0107769 2002
Suzuki GSF 1200 Bandit 98 CV, 72 kw 4cil. WVA91121 K3 Bastidores: A91121 henceforth0107770-A91121 henceforth0109451 2003
Suzuki GSF 1200 Bandit 98 CV, 72 kw 4cil. WVA91121 K4 Bastidores: A91121 henceforth0109452-A91121 henceforth0111654 2004
Suzuki GSF 1200 Bandit 98 CV, 72 kw 4cil. WVA91121 K5 Bastidores: A91121 henceforth0111655-- 2005
Suzuki GSF 1200 S Bandit 98 CV, 72 kw 4cil. GV75A T Bastidores: GV75A henceforth00500001-GV75A henceforth00510751 1996
Suzuki GSF 1200 S Bandit 98 CV, 72 kw 4cil. GV75A V Bastidores: GV75A henceforth00510752-GV75A henceforth00523032 1997
Suzuki GSF 1200 S Bandit 98 CV, 72 kw 4cil. GV75A W Bastidores: GV75A henceforth00523033-GV75A henceforth00533930 1998
Suzuki GSF 1200 S Bandit 98 CV, 72 kw 4cil. GV75A X Bastidores: GV75A henceforth00533931-GV75A henceforth00547329 1999
Suzuki GSF 1200 S Bandit 98 CV, 72 kw 4cil. GV75A Y Bastidores: GV75A henceforth00547330-- 2000
Suzuki GSF 1200 S Bandit 98 CV, 72 kw 4cil. WVA91111 K1 Bastidores: A91111 henceforth0100001-A91111 henceforth0107178 2001
Suzuki GSF 1200 S Bandit 98 CV, 72 kw 4cil. WVA91111 K2 Bastidores: A91111 henceforth0107179-A91111 henceforth0117148 2002
Suzuki GSF 1200 S Bandit 98 CV, 72 kw 4cil. WVA91111 K3 Bastidores: A91111 henceforth0117149-A91111 henceforth0122708 2003
Suzuki GSF 1200 S Bandit 98 CV, 72 kw 4cil. WVA91111 K4 Bastidores: A91111 henceforth0122709-A91111 henceforth0127243 2004
Suzuki GSF 1200 S Bandit 98 CV, 72 kw 4cil. WVA91111 K5 Bastidores: A91111 henceforth0127244-- 2005
Suzuki GSF 1200 SA Bandit ABS 98 CV, 72 kw 4cil. GV75A V Bastidores: GV75A henceforth00510752-GV75A henceforth00523032 1997
Suzuki GSF 1200 SA Bandit ABS 98 CV, 72 kw 4cil. GV75A W Bastidores: GV75A henceforth00523033-GV75A henceforth00533930 1998
Suzuki GSF 1200 SA Bandit ABS 98 CV, 72 kw 4cil. GV75A X Bastidores: GV75A henceforth00533931-GV75A henceforth00547329 1999
Suzuki GSF 1200 SA Bandit ABS 98 CV, 72 kw 4cil. GV75A Y Bastidores: GV75A henceforth00547330-- 2000
Suzuki GSF 1200 SZ Bandit ABS 98 CV, 72 kw 4cil. WVA91111 K5 Bastidores: A91111 henceforth0127254-- 2005
Suzuki GSF 1250 A Bandit ABS 98 CV, 72 kw 4cil. WVCH1241 K7 Bastidores: CH1241 henceforth0100001-CH1241 henceforth0101189 2007
Suzuki GSF 1250 A Bandit ABS 98 CV, 72 kw 4cil. WVCH1241 K8 Bastidores: CH1241 henceforth0101190-CH1241 henceforth0102460 2008
Suzuki GSF 1250 A Bandit ABS 98 CV, 72 kw 4cil. WVCH1241 K9 Bastidores: CH1241 henceforth0102461-CH1241 henceforth0102906 2009
Suzuki GSF 1250 A Bandit ABS 98 CV, 72 kw 4cil. WVCH1241 L0 Bastidores: CH1241 henceforth0102907-CH1241 henceforth0103844 2010
Suzuki GSF 1250 A Bandit ABS 98 CV, 72 kw 4cil. WVCH1241 L1 Bastidores: CH1241 henceforth0103845-- 2011-2012
Suzuki GSF 1250 Bandit 98 CV, 72 kw 4cil. WVCH1221 K7 Bastidores: CH1221 henceforth0100001-CH1221 henceforth0100803 2007
Suzuki GSF 1250 Bandit 98 CV, 72 kw 4cil. WVCH1221 K8 Bastidores: CH1221 henceforth0100804-CH1222 henceforth0100794 2008
Suzuki GSF 1250 Bandit 98 CV, 72 kw 4cil. WVCH1221 K9 Bastidores: CH1221 henceforth0100795-CH1221 henceforth0101607 2009
Suzuki GSF 1250 Bandit 98 CV, 72 kw 4cil. WVCH1221 L0 Bastidores: CH1221 henceforth0101608-CH1221 henceforth0101987 2010
Suzuki GSF 1250 Bandit 98 CV, 72 kw 4cil. WVCH1221 L1 Bastidores: CH1221 henceforth0101988-- 2011
Suzuki GSF 1250 S Bandit 98 CV, 72 kw 4cil. WVCH1111 K7 Bastidores: CH1111 henceforth0100001-CH1111 henceforth0100907 2007
Suzuki GSF 1250 S Bandit 98 CV, 72 kw 4cil. WVCH1111 K8 Bastidores: CH1111 henceforth0100908-CH1111 henceforth0101953 2008
Suzuki GSF 1250 S Bandit 98 CV, 72 kw 4cil. WVCH1111 K9 Bastidores: CH1111 henceforth0101954-CH1111 henceforth0102175 2009
Suzuki GSF 1250 S Bandit 98 CV, 72 kw 4cil. WVCH1111 L0 Bastidores: CH1111 henceforth0102176-CH1111 henceforth0102294 2010
Suzuki GSF 1250 SA Bandit ABS 98 CV, 72 kw 4cil. WVCH1131 K7 Bastidores: CH1131 henceforth0100001-CH1131 henceforth0105038 2007
Suzuki GSF 1250 SA Bandit ABS 98 CV, 72 kw 4cil. WVCH1131 K8 Bastidores: CH1131 henceforth0105039-CH1131 henceforth0112042 2008
Suzuki GSF 1250 SA Bandit ABS 98 CV, 72 kw 4cil. WVCH1131 K9 Bastidores: CH1131 henceforth0112043-CH1131 henceforth0114248 2009
Suzuki GSF 1250 SA Bandit ABS 98 CV, 72 kw 4cil. WVCH1131 L0 Bastidores: CH1131 henceforth0114249-CH1131 henceforth0115838 2010
Suzuki GSF 1250 SA Bandit ABS 98 CV, 72 kw 4cil. WVCH1131 L1 Bastidores: CH1131 henceforth0115839-CH1131 henceforth0116533 2011
Suzuki GSF 1250 SA Bandit ABS 98 CV, 72 kw 4cil. WVCH1131 L2 Bastidores: CH1131 henceforth0116534-- 2012-2014
Suzuki GSF 1250 SA Bandit ABS 98 CV, 72 kw 4cil. WVCH1131 L5 Bastidores: CH1131 henceforth0117779-CH1131 henceforth0199999 2015
Suzuki GSF 1250 SA Bandit ABS 98 CV, 72 kw 4cil. WVCH1131 L6 Bastidores: CH1131-G0100001-CH1131-G0199999 2016-2017
Yamaha XJR 1200 98 CV, 72 kw 4cil. 4PU 4PU1 Bastidores: 4PU henceforth00101-4PU henceforth07099 1995
Yamaha XJR 1200 98 CV, 72 kw 4cil. 4PU 4PU3 Bastidores: 4PU henceforth09101-- 1996
Yamaha XJR 1200 98 CV, 72 kw 4cil. 4PU 4PU7 Bastidores: 4PU henceforth24919-- 1997
Yamaha XJR 1200 98 CV, 72 kw 4cil. 4PU 4PU9 Bastidores: 4PU henceforth31361-- 1998
Yamaha XJR 1200 SP 98 CV, 72 kw 4cil. 4PU 4PU5 Bastidores: 4PU henceforth22962-- 1997
Yamaha XJR 1200 SP 98 CV, 72 kw 4cil. 4PU 4PUB Bastidores: 4PU henceforth33271-- 1998
