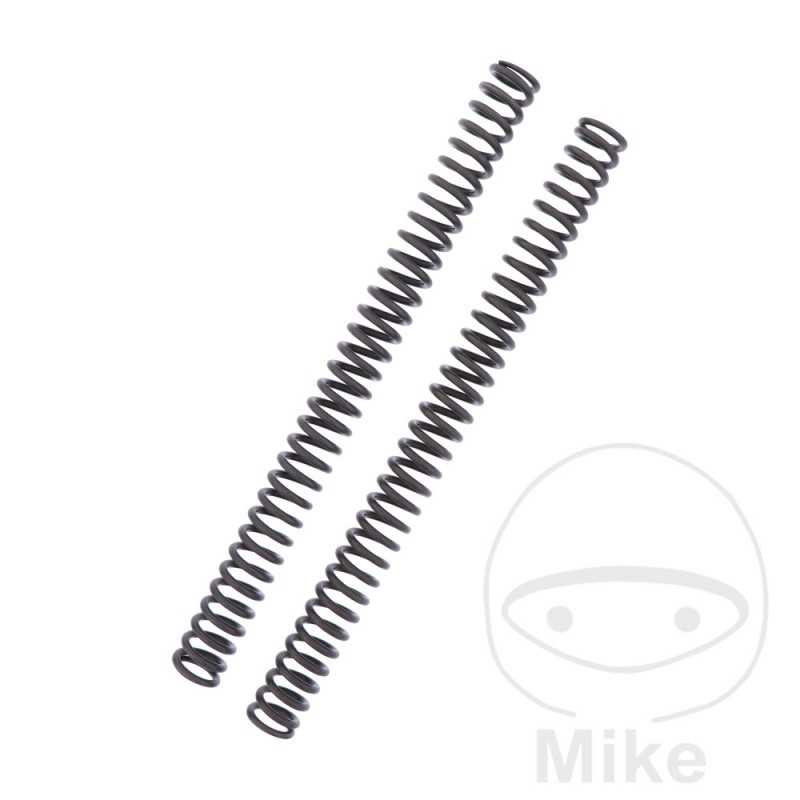

YSS SUSPENSION Linear fork spring kit 9.5 743.04.41

YSS linear fork springs with a firmer design than the original.

YSS fork springs are made of high quality silicon spring steel. This allows the thickness of the wire to be reduced, which makes the spring more active and thinner, but at the same time effectively prevents twisting of the spring.

To minimize noise and improve oil flow in the fork, the springs are fully polished and ground on the top and bottom.

The scope of delivery includes 2 springs for a complete conversion of the fork.
SPRING TYPE: LINEAR
LENGTH: 425MM
DIAMETER 1: 35MM
DIAMETER 2: 35MM
HARDNESS 1: 9 N/MM
LEFT AIR CHAMBER: 120-140 MM
RIGHT AIR CHAMBER: 120-140 MM
RECOMMENDED VISCOSITY: 10W


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki SV 650 72 CV, 53 kw 2cil. WVBY1111 K3 Bastidores: BY1111 henceforth0100001-BY1111 henceforth0106361 2003
Suzuki SV 650 72 CV, 53 kw 2cil. WVBY1111 K4 Bastidores: BY1111 henceforth0106362-BY1111 henceforth0108929 2004
Suzuki SV 650 72 CV, 53 kw 2cil. WVBY1111 K5 Bastidores: BY1111 henceforth0108930-BY1111 henceforth0110433 2005
Suzuki SV 650 72 CV, 53 kw 2cil. WVBY1111 K6 Bastidores: BY1111 henceforth0110434-BY1111 henceforth0111673 2006
Suzuki SV 650 72 CV, 53 kw 2cil. WVBY1111 K7 Bastidores: BY1111 henceforth0111674-BY1111 henceforth0112445 2007
Suzuki SV 650 72 CV, 53 kw 2cil. WVBY1111 K8 Bastidores: BY1111 henceforth0112446-BY1111 henceforth0113287 2008
Suzuki SV 650 72 CV, 53 kw 2cil. WVBY1111 K9 Bastidores: BY1111 henceforth0113288-- 2009
Suzuki SV 650 U 34 CV, 25 kw 2cil. WVBY2111 K3 Bastidores: BY2111 henceforth0100001-BY2111 henceforth0100639 2003
Suzuki SV 650 U 34 CV, 25 kw 2cil. WVBY2111 K4 Bastidores: BY2111 henceforth0100640-BY2111 henceforth0101997 2004
Suzuki SV 650 U 34 CV, 25 kw 2cil. WVBY2111 K5 Bastidores: BY2111 henceforth0101996-BY2111 henceforth0103959 2005
Suzuki SV 650 U 34 CV, 25 kw 2cil. WVBY2111 K6 Bastidores: BY2111 henceforth0103960-BY2111 henceforth0105575 2006
Suzuki SV 650 U 34 CV, 25 kw 2cil. WVBY2111 K7 Bastidores: BY2111 henceforth0105576-BY2111 henceforth0106887 2007
Suzuki SV 650 U 34 CV, 25 kw 2cil. WVBY2111 K8 Bastidores: BY2111 henceforth0106888-BY2111 henceforth0107793 2008
Suzuki SV 650 U 34 CV, 25 kw 2cil. WVBY2111 K9 Bastidores: BY2111 henceforth0107794-- 2009
