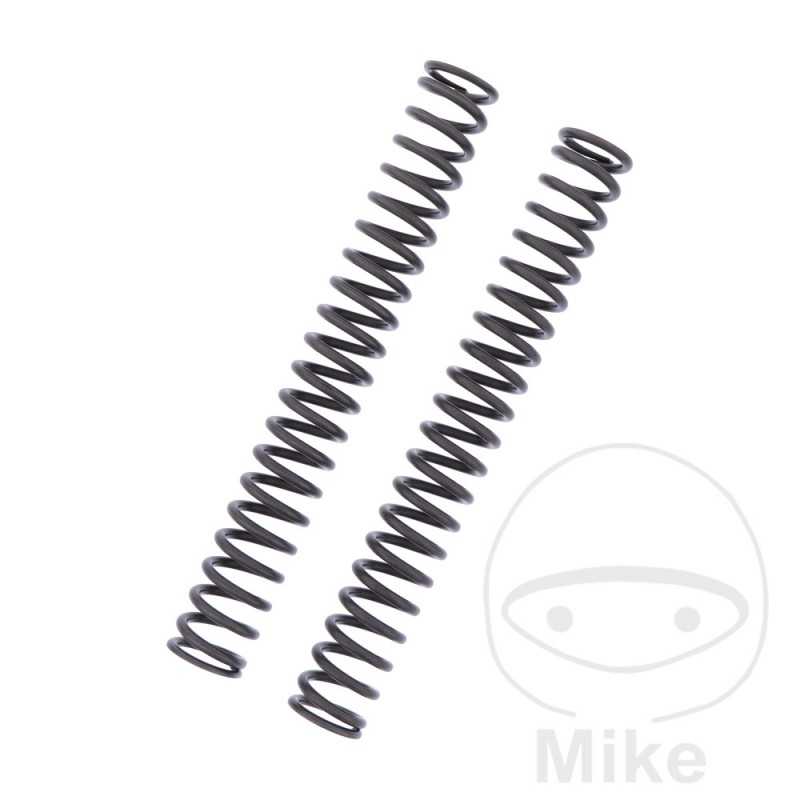

YSS SUSPENSION Linear clevis springs 8.5 743.04.56

YSS linear fork springs with a firmer design than the original.

YSS fork springs are made of high quality silicon spring steel. This allows the thickness of the wire to be reduced, which makes the spring more active and thinner, but at the same time effectively prevents twisting of the spring.

To minimize noise and improve oil flow in the fork, the springs are fully polished and ground on the top and bottom.

The scope of delivery includes 2 springs for a complete conversion of the fork.
SPRING TYPE: LINEAR
Length: 270mm
DIAMETER 1: 35.5MM
HARDNESS 1: 8.5 N/MM
LEFT AIR CHAMBER: 110-130 MM
RIGHT AIR CHAMBER: 110-130 MM
RECOMMENDED VISCOSITY: 10W


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha YZF 750 R 100 CV, 74 kw 4cil. 4HN 4HN1 Bastidores: 4HN henceforth00101-- 1993
Yamaha YZF 750 R 100 CV, 74 kw 4cil. 4HN 4HN2 Bastidores: 4HN henceforth11101-4HN henceforth17999 1994
Yamaha YZF 750 R 100 CV, 74 kw 4cil. 4HN 4HN3 Bastidores: 4HN henceforth18101-4HN henceforth22999 1995
Yamaha YZF 750 R 100 CV, 74 kw 4cil. 4HN 4HN4 Bastidores: 4HN henceforth23101-- 1996-1998
Yamaha YZF 750 R 98 CV, 72 kw 4cil. 4HN 4HN1 Bastidores: 4HN henceforth00101-- 1993
Yamaha YZF 750 R 98 CV, 72 kw 4cil. 4HN 4HN2 Bastidores: 4HN henceforth11101-4HN henceforth17999 1994
Yamaha YZF 750 R 98 CV, 72 kw 4cil. 4HN 4HN3 Bastidores: 4HN henceforth18101-4HN henceforth22999 1995
Yamaha YZF 750 R 98 CV, 72 kw 4cil. 4HN 4HN4 Bastidores: 4HN henceforth23101-- 1996-1998
