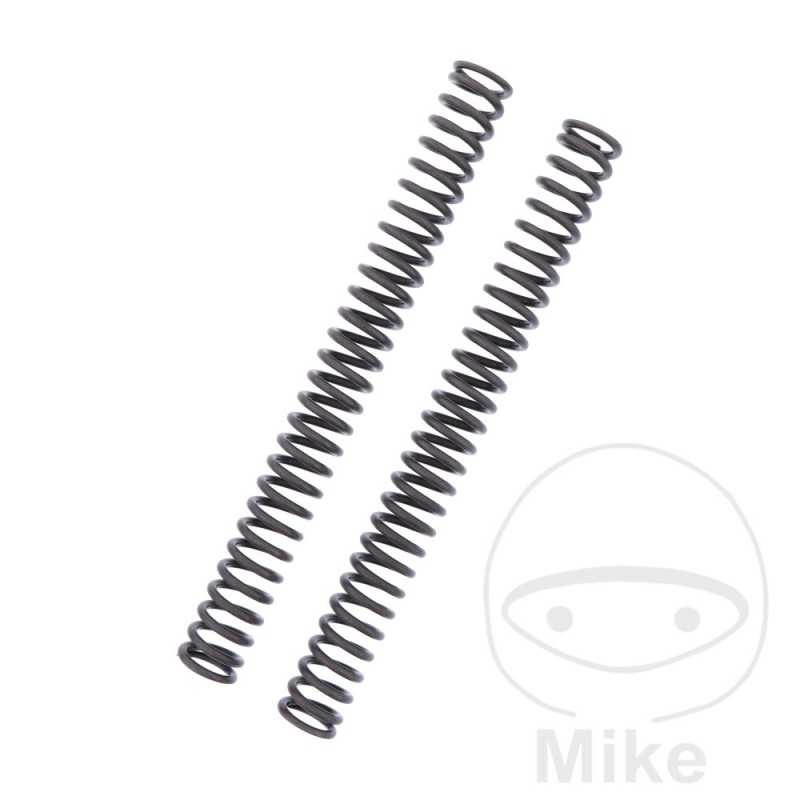

YSS SUSPENSION Linear clevis springs 8.5 743.04.31

YSS linear fork springs with a firmer design than the original.

YSS fork springs are made of high quality silicon spring steel. This allows the thickness of the wire to be reduced, which makes the spring more active and thinner, but at the same time effectively prevents twisting of the spring.

To minimize noise and improve oil flow in the fork, the springs are fully polished and ground on the top and bottom.

The scope of delivery includes 2 springs for a complete conversion of the fork.
SPRING TYPE: LINEAR
LENGTH: 340MM
DIAMETER 1: 35MM
HARDNESS 1: 8.5 N/MM
LEFT AIR CHAMBER: 120-130 MM
RIGHT AIR CHAMBER: 120-130 MM
RECOMMENDED VISCOSITY: 10W


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha YZF-R3 320 A ABS 42 CV, 30,9 kw 2cil. RH071 B023 Bastidores: RH071 henceforth00020-- 2015
Yamaha YZF-R3 320 A ABS 42 CV, 30,9 kw 2cil. RH071 B024 Bastidores: RH071 henceforth01681-- 2015
Yamaha YZF-R3 320 A ABS 42 CV, 30,9 kw 2cil. RH071 B02B Bastidores: RH071 henceforth00101-- 2016
Yamaha YZF-R3 320 A ABS 42 CV, 30,9 kw 2cil. RH071 B02C Bastidores: RH071 henceforth04241-- 2016
Yamaha YZF-R3 320 A ABS 42 CV, 30,9 kw 2cil. RH121 BR51 Bastidores: RH121 henceforth01001-- 2017
Yamaha YZF-R3 320 A ABS 42 CV, 30,9 kw 2cil. RH121 BR52 Bastidores: RH121 henceforth01081-- 2017
Yamaha YZF-R3 320 A ABS 42 CV, 30,9 kw 2cil. RH121 BR57 Bastidores: RH121 henceforth03361-- 2018
Yamaha YZF-R3 320 A ABS 42 CV, 30,9 kw 2cil. RH121 BR58 Bastidores: RH121 henceforth03401-- 2018
Yamaha YZF-R3 320 A ABS 42 CV, 30,9 kw 2cil. RH12D B7P1 Bastidores: RH12D henceforth00101-- 2019
Yamaha YZF-R3 320 A ABS 42 CV, 30,9 kw 2cil. RH12D B7P3 Bastidores: RH12D henceforth01561-- 2019
Yamaha YZF-R3 320 A ABS 42 CV, 30,9 kw 2cil. RH12D B7PD Bastidores: RH12D henceforth02881-- 2020-2021
Yamaha YZF-R3 320 A ABS 42 CV, 30,9 kw 2cil. RH12D B7PF Bastidores: RH12D henceforth03041-- 2020
