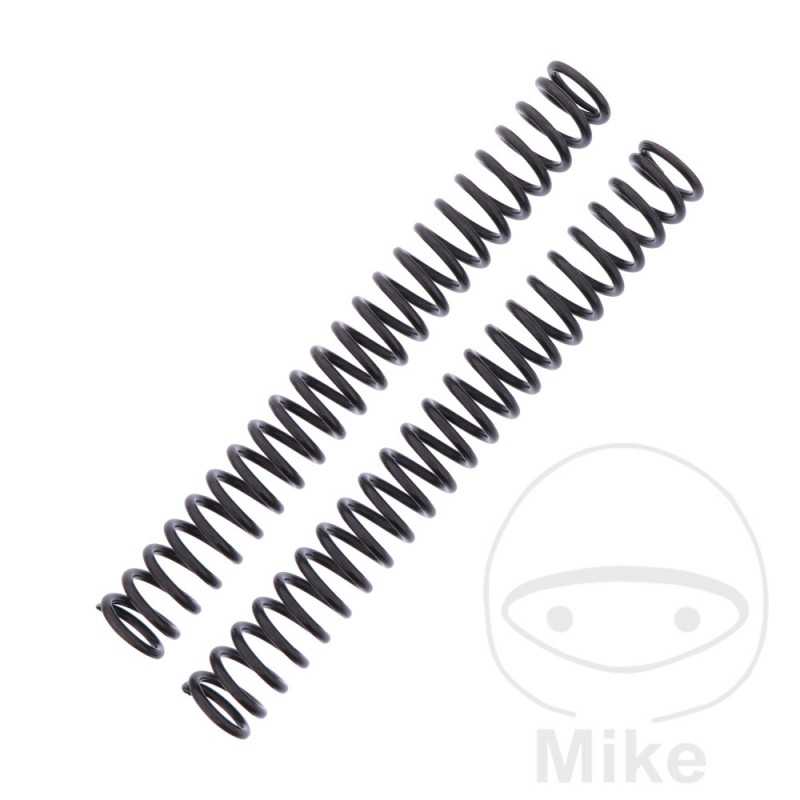

YSS SUSPENSION Linear clevis springs 8.5 743.04.28

YSS linear fork springs with a firmer design than the original.

YSS fork springs are made of high quality silicon spring steel. This allows the thickness of the wire to be reduced, which makes the spring more active and thinner, but at the same time effectively prevents twisting of the spring.

To minimize noise and improve oil flow in the fork, the springs are fully polished and ground on the top and bottom.

The scope of delivery includes 2 springs for a complete conversion of the fork.
SPRING TYPE: LINEAR
LENGTH: 295MM
DIAMETER 1: 35MM
DIAMETER 2: 35MM
HARDNESS 1: 8.5 N/MM
LEFT AIR CHAMBER: 130-150 MM
RIGHT AIR CHAMBER: 130-150 MM
RECOMMENDED VISCOSITY: 10W


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSF 600 Bandit 78 CV, 57 kw 4cil. GN77B S Bastidores: GN77B-100001-GN77B-104384 1995
Suzuki GSF 600 Bandit 78 CV, 57 kw 4cil. GN77B T Bastidores: GN77B-104385-GN77B-111683 1996
Suzuki GSF 600 Bandit 78 CV, 57 kw 4cil. GN77B V Bastidores: GN77B-111684-GN77B-117364 1997
Suzuki GSF 600 Bandit 78 CV, 57 kw 4cil. GN77B W Bastidores: GN77B-117365-GN77B-123518 1998
Suzuki GSF 600 Bandit 78 CV, 57 kw 4cil. GN77B X Bastidores: GN77B-123519-- 1999
Suzuki GSF 600 S Bandit 78 CV, 57 kw 4cil. GN77B T Bastidores: GN77B-104385-GN77B-111683 1996
Suzuki GSF 600 S Bandit 78 CV, 57 kw 4cil. GN77B V Bastidores: GN77B-111684-GN77B-117364 1997
Suzuki GSF 600 S Bandit 78 CV, 57 kw 4cil. GN77B W Bastidores: GN77B-117365-GN77B-123518 1998
Suzuki GSF 600 S Bandit 78 CV, 57 kw 4cil. GN77B X Bastidores: GN77B-123519-- 1999
Suzuki GSF 600 SU Bandit 34 CV, 25 kw 4cil. GN77B T Bastidores: GN77B-104385-GN77B-111683 1996
Suzuki GSF 600 SU Bandit 34 CV, 25 kw 4cil. GN77B V Bastidores: GN77B-111684-GN77B-117364 1997
Suzuki GSF 600 SU Bandit 34 CV, 25 kw 4cil. GN77B W Bastidores: GN77B-117365-GN77B-123518 1998
Suzuki GSF 600 SU Bandit 34 CV, 25 kw 4cil. GN77B X Bastidores: GN77B-123519-- 1999
Suzuki GSF 600 U Bandit 34 CV, 25 kw 4cil. GN77B S Bastidores: GN77B-100001-GN77B-104384 1995
Suzuki GSF 600 U Bandit 34 CV, 25 kw 4cil. GN77B T Bastidores: GN77B-104385-GN77B-111683 1996
Suzuki GSF 600 U Bandit 34 CV, 25 kw 4cil. GN77B V Bastidores: GN77B-111684-GN77B-117364 1997
Suzuki GSF 600 U Bandit 34 CV, 25 kw 4cil. GN77B W Bastidores: GN77B-117365-GN77B-123518 1998
Suzuki GSF 600 U Bandit 34 CV, 25 kw 4cil. GN77B X Bastidores: GN77B-123519-- 1999
