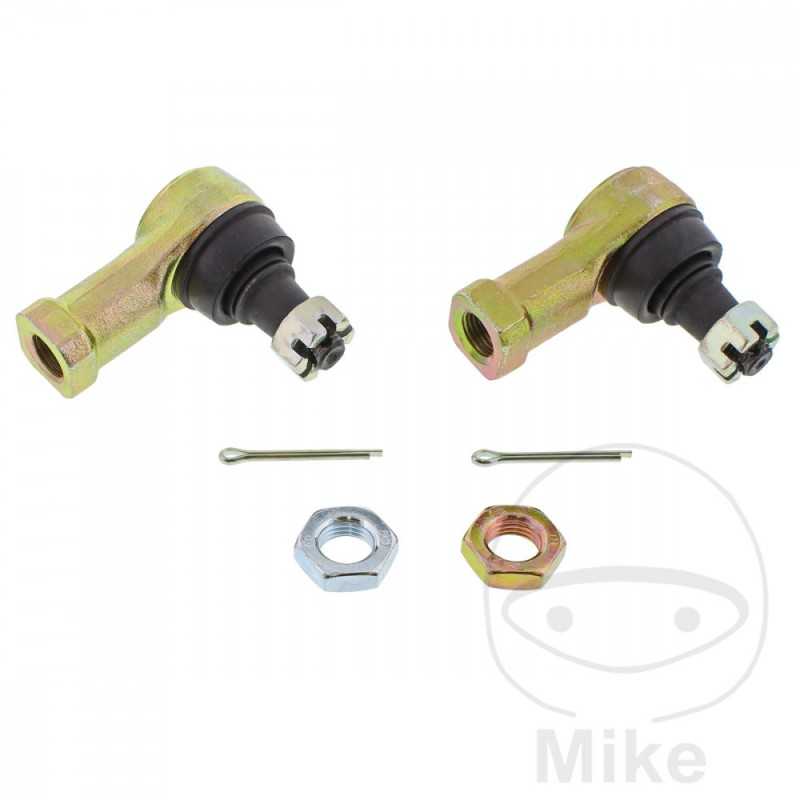

ALL BALLS Tie rod end kit 765.00.55

All Balls Racing Tie Rod End Kit

- reinforced housing

- Includes 2 tie rod ends and lock nuts (1x left thread 1x right thread)
TYPE (1): BALL HEAD
STEERING ROD CONNECTION (1): FEMALE CONNECTOR
STEERING BAR THREAD (1): M12 X 1.25 RIGHT
BALL JOINT THREAD (1): M10 X 1.25
TOTAL LENGTH (1): 53MM
THREAD END DISTANCE - SAFETY PIN (1): 10.5 MM
STEERING BAR THREAD LENGTH (1): 32 MM
NARROW (1): 13MM - 14MM
TYPE (2): BALL HEAD
STEERING ROD CONNECTION (2): FEMALE CONNECTOR
STEERING BAR THREAD (2): M12 X 1.25 LEFT
BALL JOINT THREAD (2): M10 X 1.25
TOTAL LENGTH (2): 53MM
END DISTANCE OF THE THREAD - SAFETY PIN (2): 10.5 MM
STEERING BAR THREAD LENGTH (2): 32 MM
NARROW (2): 13MM - 14MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki LT-A 450 X Kingquad AXI 4WD 38 CV, 28 kw 1cil. AL42A K7 Bastidores: AL42A-77100001-- 2007
Suzuki LT-A 450 X Kingquad AXI 4WD 38 CV, 28 kw 1cil. AL42A K8 Bastidores: AL42A-87100001-- 2008
Suzuki LT-A 450 X Kingquad AXI 4WD 38 CV, 28 kw 1cil. AL42A K9 Bastidores: AL42A-97100001-- 2009
Suzuki LT-A 450 X Kingquad AXI 4WD 38 CV, 28 kw 1cil. AL42A L0 Bastidores: AL42A-A7100001-- 2010-2012
Suzuki LT-A 500 X Kingquad AXI 4WD 1cil. - L3 Bastidores: --- 2013
Suzuki LT-A 500 X Kingquad AXI 4WD 1cil. - L4 Bastidores: --- 2014
Suzuki LT-A 500 X Kingquad AXI 4WD 1cil. - L5 Bastidores: --- 2015
Suzuki LT-A 500 X Kingquad AXI 4WD 1cil. - L6 Bastidores: --- 2016
Suzuki LT-A 500 X Kingquad AXI 4WD 39 CV, 28,5 kw 1cil. AM46P L2 Bastidores: AM46P-C7100001-- 2012
Suzuki LT-A 700 X Kingquad 4WD 46 CV, 34 kw 1cil. AP41A K7 Bastidores: AP41A-77100001-- 2007-2008
Suzuki LT-A 700 X Kingquad 4WD 48 CV, 36 kw 1cil. AP41A K5 Bastidores: AP41A-52100001-- 2005
Suzuki LT-A 700 X Kingquad 4WD 48 CV, 36 kw 1cil. AP41A K6 Bastidores: AP41A-67100001-- 2006
Suzuki LT-A 750 X Kingquad AXI 4WD 50 CV, 37 kw 1cil. - L3 Bastidores: --- 2013
Suzuki LT-A 750 X Kingquad AXI 4WD 50 CV, 37 kw 1cil. - L4 Bastidores: --- 2014
Suzuki LT-A 750 X Kingquad AXI 4WD 50 CV, 37 kw 1cil. - L5 Bastidores: --- 2015
Suzuki LT-A 750 X Kingquad AXI 4WD 50 CV, 37 kw 1cil. - L6 Bastidores: --- 2016
Suzuki LT-A 750 X Kingquad AXI 4WD 50 CV, 37 kw 1cil. AR41A K8 Bastidores: AR41A-87100001-- 2008
Suzuki LT-A 750 X Kingquad AXI 4WD 50 CV, 37 kw 1cil. AR41A K9 Bastidores: AR41A-97100001-- 2009
Suzuki LT-A 750 X Kingquad AXI 4WD 50 CV, 37 kw 1cil. AR41A L0 Bastidores: AR41A-A7100001-- 2010
Suzuki LT-A 750 X Kingquad AXI 4WD 50 CV, 37 kw 1cil. AR41A L1 Bastidores: AR41A-B7100001-- 2011
Suzuki LT-A 750 X Kingquad AXI 4WD 50 CV, 37 kw 1cil. AR41A L2 Bastidores: AR41A-C7100001-- 2012
Suzuki LT-A 750 XP Kingquad AXI 4WD Powersteering 50 CV, 37 kw 1cil. - L4 Bastidores: --- 2014-2015
Suzuki LT-A 750 XP Kingquad AXI 4WD Powersteering 50 CV, 37 kw 1cil. - L6 Bastidores: --- 2016
Suzuki LT-A 750 XP Kingquad AXI 4WD Powersteering 50 CV, 37 kw 1cil. AR41P K9 Bastidores: AR41P-97100001-- 2009
Suzuki LT-A 750 XP Kingquad AXI 4WD Powersteering 50 CV, 37 kw 1cil. AR41P L0 Bastidores: AR41P-A7100001-- 2010
Suzuki LT-A 750 XP Kingquad AXI 4WD Powersteering 50 CV, 37 kw 1cil. AR41P L1 Bastidores: AR41P-B7100001-- 2011
Suzuki LT-A 750 XP Kingquad AXI 4WD Powersteering 50 CV, 37 kw 1cil. AR41P L2 Bastidores: AR41P-C7100001-- 2012-2013
