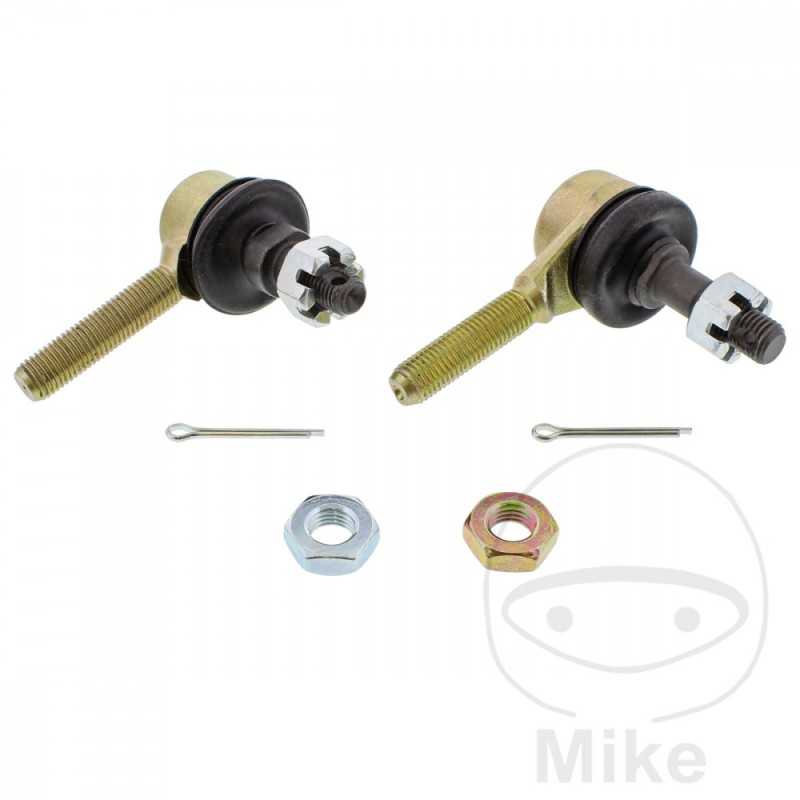

ALL BALLS Tie rod end kit 765.00.52

All Balls Racing Tie Rod End Kit

- reinforced housing

- Includes 2 tie rod ends and lock nuts (1x left thread 1x right thread)
TYPE (1): BALL HEAD
STEERING ROD CONNECTION (1): MALE FITTING
STEERING BAR THREAD (1): M10 X 1.25 RIGHT
BALL JOINT THREAD (1): M10 X 1.25
TOTAL LENGTH (1): 60MM
END DISTANCE OF THE THREAD - SAFETY PIN (1): 24 MM
STEERING BAR THREAD LENGTH (1): 34 MM
NARROWING (1): NONE
TYPE (2): BALL HEAD
STEERING ROD CONNECTION (2): MALE CONNECTOR
STEERING BAR THREAD (2): M10 X 1.25 LEFT
BALL JOINT THREAD (2): M10 X 1.25
TOTAL LENGTH (2): 61MM
END DISTANCE OF THE THREAD - SAFETY PIN (2): 16 MM
STEERING BAR THREAD LENGTH (2): 33 MM
NARROW (2): NONE


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Arctic Cat/Textron Cat 1000 TRV Cruiser 4WD 2cil. - Bastidores: --- 2009
Arctic Cat/Textron Cat 250 2WD 1cil. - Bastidores: --- 1999-2004
Arctic Cat/Textron Cat 250 4WD 1cil. - Bastidores: --- 2001-2004
Arctic Cat/Textron Cat 300 2WD 1cil. - Bastidores: --- 1998-2003
Arctic Cat/Textron Cat 300 4WD 1cil. - Bastidores: --- 1998-2005
Arctic Cat/Textron Cat 400 2WD 1cil. - Bastidores: --- 1998-2001
Arctic Cat/Textron Cat 400 4WD 1cil. - Bastidores: --- 1998-2000
Arctic Cat/Textron Cat 400 FIS Automatik 2WD automática 1cil. - Bastidores: --- 2003-2004
Arctic Cat/Textron Cat 500 FIS Automatik 4WD 1cil. - Bastidores: --- 2004-2007
Arctic Cat/Textron Cat 500 TBX Automatik 4WD 1cil. - Bastidores: --- 2004-2006
Arctic Cat/Textron Cat 500 TRV Automatik 4WD 1cil. - Bastidores: --- 2004-2008
Arctic Cat/Textron Cat 650 H1 3 in 1 4WD 1cil. - Bastidores: --- 2007-2009
Arctic Cat/Textron Cat 700 3 in 1 4WD 2cil. - Bastidores: --- 2007
Arctic Cat/Textron Cat 700 4WD 2cil. - Bastidores: --- 2007
Arctic Cat/Textron Cat 700 diesel EFT 2cil. - Bastidores: --- 2008-2011
Arctic Cat/Textron Thundercat 1000 4WD 2cil. - Bastidores: --- 2008-2009
Arctic Cat/Textron XC 450 EFT 1cil. - Bastidores: --- 2011-2012
Kymco Grumbler 450 i 4X4 Offroad 20,3 CV, 14,9 kw 1cil. - Bastidores: --- 2013-2016
Kymco Grumbler 450 i 4X4 Offroad LOF 30 CV, 22 kw 1cil. - Bastidores: --- 2013-2016
Kymco Maxxer 450 i 4X4 Offroad 20,3 CV, 14,9 kw 1cil. A40200 A4 Bastidores: RFBA40200-- 2010-2016
Kymco Maxxer 450 i 4X4 Offroad LOF 30 CV, 22 kw 1cil. A40200 A4 Bastidores: RFBA40200-- 2014-2017
Kymco Maxxer 450 i 4X4 Onroad 20,3 CV, 14,9 kw 1cil. A40200 A4 Bastidores: RFBA40200-- 2012-2016
Kymco Maxxer 450 i 4X4 Onroad LOF 30 CV, 22 kw 1cil. A40200 A4 Bastidores: RFBA40200-- 2014-2016
Kymco MXU 450 i 4X4 20 CV, 14,9 kw 1cil. A40300 A4 Bastidores: RFBA40300-- 2011
