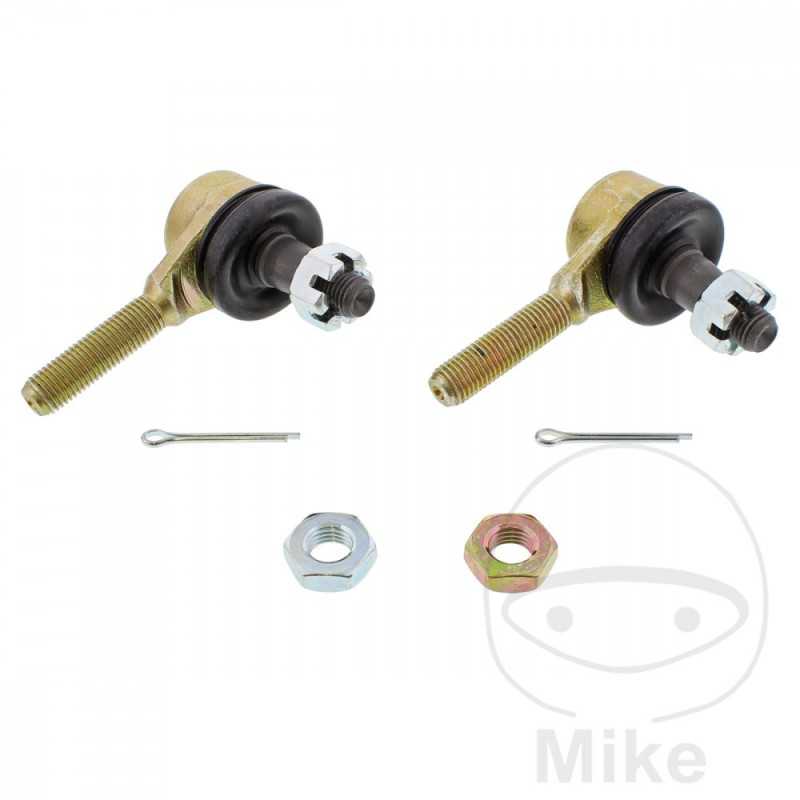

ALL BALLS Tie rod end kit 765.00.48

All Balls Racing Tie Rod Ends

with reinforced casing

Contents: 2 tie rod ends and lock nuts (1x left thread 1x right thread)

Note: To repair both sides of the vehicle, this kit must be ordered 2x.
TYPE (1): BALL HEAD
STEERING ROD CONNECTION (1): MALE FITTING
STEERING BAR THREAD (1): M10 X 1.25 RIGHT
BALL JOINT THREAD (1): M10 X 1.25
TOTAL LENGTH (1): 62MM
END DISTANCE OF THE THREAD - SAFETY PIN (1): 10 MM
STEERING BAR THREAD LENGTH (1): 33 MM
NARROW (1): 11MM - 12MM
TYPE (2): BALL HEAD
STEERING ROD CONNECTION (2): MALE CONNECTOR
STEERING BAR THREAD (2): M10 X 1.25 LEFT
BALL JOINT THREAD (2): M10 X 1.25
TOTAL LENGTH (2): 62MM
END DISTANCE OF THE THREAD - SAFETY PIN (2): 10 MM
STEERING BAR THREAD LENGTH (2): 31 MM
NARROW (2): 11MM - 12MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aeon Cobra 125 RS 2WD 5,4 CV, 4 kw 1cil. - AT72 Bastidores: --- 2003-2006
Aeon Cobra 180 RSII 2WD 8,8 CV, 6,4 kw 1cil. - AT72 Bastidores: --- 2004-2008
Aeon Revo 100 W 2WD 6,6 CV, 4,8 kw 1cil. - AT71 A1 Bastidores: --- 2004-2010
Arctic Cat/Textron DVX 250 2WD 1cil. - Bastidores: --- 2006
Arctic Cat/Textron DVX 300 Euro 2WD 1cil. - Bastidores: --- 2011-2012
Arctic Cat/Textron DVX 300 Euro 2WD 20,4/19,9 CV, 15/14,6 kw 1cil. - Bastidores: --- 2013
Arctic Cat/Textron DVX 400 2WD 1cil. - Bastidores: --- 2004-2008
Kawasaki KFX 400 A KSF 39/20 CV, 29/15 kw 1cil. AK47B 42 2 Bastidores: AK47B 42-100001-AK47B 42-999999 2004
Kawasaki KFX 400 A KSF 39/20 CV, 29/15 kw 1cil. AK47B 52 3 Bastidores: AK47B 52-100001-AK47B 52-999999 2005
Kawasaki KFX 400 A KSF 39/20 CV, 29/15 kw 1cil. AK47B 62 6F Bastidores: AK47B 62-100001-AK47B 62-999999 2006
Kawasaki KVF 300 C Brute Force 2WD 22 CV, 16 kw 1cil. VF300CCB CF Bastidores: VF300CCB-110101-VF300CCB-999999 2012
Kawasaki KVF 300 C Brute Force 2WD 22 CV, 16 kw 1cil. VF300CCB DF Bastidores: VF300CCB-220101-VF300CCB-999999 2013-2014
Polaris Outlaw 90 2WD 1cil. - Bastidores: --- 2007
Polaris Outlaw 90 2WD 5,4 CV, 4 kw 1cil. - Bastidores: --- 2008-2015
Polaris Sportsman 90 4T 2WD 5,4 CV, 4 kw 1cil. - Bastidores: --- 2007-2015
Suzuki LT-A 400 F Kingquad 4WD 30 CV, 22 kw 1cil. AK49K K8 Bastidores: AK49K-87100001-AK49K-87199999 2008
Suzuki LT-A 400 F Kingquad 4WD 30 CV, 22 kw 1cil. AK49K K9 Bastidores: AK49K-97100001-AK49K-97199999 2009
Suzuki LT-A 400 F Kingquad 4WD 30 CV, 22 kw 1cil. AK4CK L0 Bastidores: AK4CK-A7100001-- 2010
Suzuki LT-A 500 F Vinson 4WD 1cil. AM43A K4 Bastidores: AM43A-47100001-- 2004
Suzuki LT-A 500 F Vinson 4WD 1cil. AM43A K5 Bastidores: AM43A-57100001-- 2005
Suzuki LT-A 500 F Vinson 4WD 1cil. AM43A K6 Bastidores: AM43A-67100001-- 2006
Suzuki LT-A 500 F Vinson 4WD 1cil. AM43A K7 Bastidores: AM43A-77100001-- 2007
Suzuki LT-F 400 F Eiger 4WD 1cil. AK46A K5 Bastidores: AK46A-57100001-- 2005
Suzuki LT-F 400 FS Kingquad 4WD 1cil. AK49A K8 Bastidores: AK49A-87100001-AK49A-87199999 2008
Suzuki LT-F 400 FS Kingquad 4WD 1cil. AK49A K9 Bastidores: AK49A-97100001-AK49A-97199999 2009
Suzuki LT-F 400 FS Kingquad 4WD 1cil. AK4CA L0 Bastidores: AK4CA-A7100001-- 2010
Suzuki LT-Z 250 Quadsport 1cil. AJ4AA K9 Bastidores: AJ4AA-92100001-- 2009
Suzuki LT-Z 250 Quadsport 19 CV, 14 kw 1cil. AJ4AA K4 Bastidores: AJ4AA-42100001-- 2004
Suzuki LT-Z 250 Quadsport 19 CV, 14 kw 1cil. AJ4AA K5 Bastidores: AJ4AA-52100001-- 2005
Suzuki LT-Z 250 Quadsport 19 CV, 14 kw 1cil. AJ4AA K6 Bastidores: AJ4AA-62100001-- 2006
Suzuki LT-Z 250 Quadsport 19 CV, 14 kw 1cil. AJ4AA K7 Bastidores: AJ4AA-72100001-- 2007
Suzuki LT-Z 250 Quadsport 19 CV, 14 kw 1cil. AJ4AA K8 Bastidores: AJ4AA-82100001-- 2008
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. 4K47A K8 Bastidores: 4K47A-82100001-- 2008
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K4 Bastidores: AK47A-42100001-- 2004
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K5 Bastidores: AK47A-52100001-- 2005
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K6 Bastidores: AK47A-62100001-- 2006
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K7 Bastidores: AK47A-72100001-- 2007
Yamaha YFA1 125 Breeze 8 CV, 6 kw 1cil. 3FA 3FAS Bastidores: 3FA-119550-- 2000
Yamaha YFA1 125 Breeze 8 CV, 6 kw 1cil. 3FA 3FAV Bastidores: 3FA-134813-- 2001
Yamaha YFA1 125 Breeze 8 CV, 6 kw 1cil. 3FA 3FAY Bastidores: 3FA-151334-- 2002
Yamaha YFA1 125 Breeze 8 CV, 6 kw 1cil. 3FA 5VJ3 Bastidores: 3FA-161986-- 2003
Yamaha YFA1 125 Breeze 8 CV, 6 kw 1cil. 3FA 5VJ6 Bastidores: 3FA-173442-- 2004
Yamaha YFM 125 A Grizzly 9 CV, 7 kw 1cil. AE02W 1C54 Bastidores: AE02W henceforth00101-- 2004
Yamaha YFM 125 A Grizzly 9 CV, 7 kw 1cil. AE02W 1C57 Bastidores: AE02W henceforth01962-- 2005
Yamaha YFM 125 A Grizzly 9 CV, 7 kw 1cil. AE02W 1C5B Bastidores: AE02W henceforth05435-- 2006
Yamaha YFM 125 A Grizzly 9 CV, 7 kw 1cil. AE02W 1C5F Bastidores: AE02W henceforth06977-- 2007
Yamaha YFM 125 A Grizzly 9 CV, 7 kw 1cil. AE02W 1C5K Bastidores: AE02W henceforth08626-- 2008
Yamaha YFM 125 A Grizzly 9 CV, 7 kw 1cil. AE02W 1C5P Bastidores: AE02W henceforth11060-- 2009
Yamaha YFM 125 A Grizzly 9 CV, 7 kw 1cil. AE02W 1C5T Bastidores: AE02W henceforth13074-- 2010
Yamaha YFM 125 A Grizzly 9 CV, 7 kw 1cil. AE02W 1C5V Bastidores: AE02W henceforth13607-- 2011
Yamaha YFM 125 A Grizzly 9 CV, 7 kw 1cil. AE02W 1PY3 Bastidores: AE02W henceforth14609-- 2012
Yamaha YFM 125 A Grizzly 9 CV, 7 kw 1cil. AE02W 1PY6 Bastidores: AE02W henceforth15641-- 2013-2014
Yamaha YFM 350 X Warrior 20 CV, 15 kw 1cil. 3GD 3GDW Bastidores: 3GD-255467-- 2000
Yamaha YFM 350 X Warrior 27 CV, 20 kw 1cil. 3GD 5NF2 Bastidores: 3GD-291441-- 2001
Yamaha YFM 350 X Warrior 27 CV, 20 kw 1cil. 3GD 5NF6 Bastidores: 3GD-319138-- 2002
Yamaha YFM 350 X Warrior 27 CV, 20 kw 1cil. 3GD 5NFA Bastidores: 3GD-337826-- 2003
Yamaha YFM 350 X Warrior 27 CV, 20 kw 1cil. 3GD 5NFD Bastidores: 3GD-354198-- 2004
Yamaha YFM 400 FWA Kodiak 4WD 27 CV, 20 kw 1cil. AJ03W 5GH4 Bastidores: AJ03W henceforth05557-- 2000
Yamaha YFM 400 FWA Kodiak 4WD 27 CV, 20 kw 1cil. AJ03W 5GHH Bastidores: AJ03W henceforth33763-- 2001
Yamaha YFM 400 FWA Kodiak 4WD 27 CV, 20 kw 1cil. AJ03W 5GHM Bastidores: AJ03W henceforth48976-- 2002
Yamaha YFM 450 FWA Grizzly IRS 26,4 CV, 19,4 kw 1cil. AJ14W 1CUM Bastidores: AJ14W-521667-- 2014
Yamaha YFM 550 FWA Grizzly 37,4 CV, 27,5 kw 1cil. AJ39W 1NP8 Bastidores: AJ39W-500101-- 2013
Yamaha YFM 550 FWA Grizzly 37,4 CV, 27,5 kw 1cil. AJ39W 1NPC Bastidores: AJ39W-501481-- 2014
Yamaha YFM 550 FWA Grizzly 37,4 CV, 27,5 kw 1cil. AJ39W 28P3 Bastidores: AJ39W henceforth00046-- 2009
Yamaha YFM 550 FWA Grizzly 37,4 CV, 27,5 kw 1cil. AJ39W 28P9 Bastidores: AJ39W henceforth00642-- 2010
Yamaha YFM 550 FWA Grizzly 37,4 CV, 27,5 kw 1cil. AJ39W 28PE Bastidores: AJ39W henceforth00772-- 2011-2012
Yamaha YFM 550 FWAD Grizzly Camouflage EPS 37,4 CV, 27,5 kw 1cil. AJ41W 34D7 Bastidores: AJ41W henceforth00795-- 2009
Yamaha YFM 550 FWAD Grizzly Camouflage EPS 37,4 CV, 27,5 kw 1cil. AJ41W 34DJ Bastidores: AJ41W henceforth03548-- 2010
Yamaha YFM 550 FWAD Grizzly Camouflage EPS 37,4 CV, 27,5 kw 1cil. AJ41W 34DS Bastidores: AJ41W henceforth04806-- 2011
Yamaha YFM 550 FWAD Grizzly Camouflage EPS 37,4 CV, 27,5 kw 1cil. AJ54W 1HS7 Bastidores: AJ54W-500101-- 2012
Yamaha YFM 550 FWAD Grizzly Camouflage EPS 37,4 CV, 27,5 kw 1cil. AJ54W 1HSM Bastidores: AJ54W-500341-- 2013
Yamaha YFM 550 FWAD Grizzly Camouflage EPS 37,4 CV, 27,5 kw 1cil. AJ54W 2LB7 Bastidores: AJ54W-500621-- 2014
Yamaha YFM 550 FWAD Grizzly EPS 37,4 CV, 27,5 kw 1cil. AJ41W 34D3 Bastidores: AJ41W henceforth00028-- 2009
Yamaha YFM 550 FWAD Grizzly EPS 37,4 CV, 27,5 kw 1cil. AJ41W 34DE Bastidores: AJ41W henceforth03359-- 2010
Yamaha YFM 550 FWAD Grizzly EPS 37,4 CV, 27,5 kw 1cil. AJ41W 34DM Bastidores: AJ41W henceforth04776-- 2011
Yamaha YFM 550 FWAD Grizzly EPS 37,4 CV, 27,5 kw 1cil. AJ53W 1HS3 Bastidores: AJ53W-500181-- 2012
Yamaha YFM 550 FWAD Grizzly EPS 37,4 CV, 27,5 kw 1cil. AJ53W 1HSE Bastidores: AJ53W-501341-- 2013
Yamaha YFM 550 FWAD Grizzly EPS 37,4 CV, 27,5 kw 1cil. AJ53W 2LB3 Bastidores: AJ53W-502401-- 2014
Yamaha YFM 550 FWAD Grizzly EPS 37,4 CV, 27,5 kw 1cil. AJ58W 1HSA Bastidores: AJ58W-500101-- 2012
Yamaha YFM 550 FWAD Grizzly EPS 37,4 CV, 27,5 kw 1cil. AJ58W 1HSJ Bastidores: AJ58W-500381-- 2013
Yamaha YFM 550 FWAD Grizzly Special Edition EPS 37,4 CV, 27,5 kw 1cil. AJ41W 34DA Bastidores: AJ41W henceforth00857-- 2009
Yamaha YFM 550 FWAD Grizzly Special Edition EPS 37,4 CV, 27,5 kw 1cil. AJ41W 34DV Bastidores: AJ41W henceforth05009-- 2011
Yamaha YFM 550 FWAD Grizzly Special Edition EPS 37,4 CV, 27,5 kw 1cil. AJ68W 1HSP Bastidores: AJ68W-500101-- 2013-2015
Yamaha YFM 600 FWA Grizzly 4WD 37 CV, 27 kw 1cil. AJ02W 5GTB Bastidores: AJ02W henceforth18939-- 2000
Yamaha YFM 600 FWA Grizzly 4WD 37 CV, 27 kw 1cil. AJ02W 5GTG Bastidores: AJ02W henceforth44673-- 2001
Yamaha YFM 700 FWAD FGP Grizzly Camouflage EPS 41 CV, 30 kw 1cil. AM38W 1HPS Bastidores: AM38W-500681-- 2013
Yamaha YFM 700 FWAD FGP Grizzly EPS 41 CV, 30 kw 1cil. AM09W 1DT3 Bastidores: AM09W henceforth29605-- 2011
Yamaha YFM 700 FWAD FGP Grizzly EPS 41 CV, 30 kw 1cil. AM09W 1DTA Bastidores: AM09W henceforth29832-- 2011
Yamaha YFM 700 FWAD FGP Grizzly EPS 41 CV, 30 kw 1cil. AM09W 1HP3 Bastidores: AM09W-500101-- 2012
Yamaha YFM 700 FWAD FGP Grizzly EPS 41 CV, 30 kw 1cil. AM09W 1HPJ Bastidores: AM09W-501381-- 2013
Yamaha YFM 700 FWAD FGP Grizzly EPS 41 CV, 30 kw 1cil. AM09W 3B43 Bastidores: AM09W henceforth00700-- 2007
Yamaha YFM 700 FWAD FGP Grizzly EPS 41 CV, 30 kw 1cil. AM09W 3B4F Bastidores: AM09W henceforth14636-- 2008
Yamaha YFM 700 FWAD FGP Grizzly EPS 41 CV, 30 kw 1cil. AM09W 43P3 Bastidores: AM09W henceforth22768-- 2009
Yamaha YFM 700 FWAD FGP Grizzly EPS 41 CV, 30 kw 1cil. AM09W 43PJ Bastidores: AM09W henceforth27247-- 2010
Yamaha YFM 700 FWAD FGP Grizzly EPS 41 CV, 30 kw 1cil. AM42W 1HPE Bastidores: AM42W-500101-- 2012
Yamaha YFM 700 FWAD FGP H Grizzly Camouflage EPS 41 CV, 30 kw 1cil. AM09W 1DT7 Bastidores: AM09W henceforth29604-- 2011
Yamaha YFM 700 FWAD FGP H Grizzly Camouflage EPS 41 CV, 30 kw 1cil. AM09W 3B47 Bastidores: AM09W henceforth02760-- 2007
Yamaha YFM 700 FWAD FGP H Grizzly Camouflage EPS 41 CV, 30 kw 1cil. AM09W 3B4K Bastidores: AM09W henceforth15034-- 2008
Yamaha YFM 700 FWAD FGP H Grizzly Camouflage EPS 41 CV, 30 kw 1cil. AM09W 43P7 Bastidores: AM09W henceforth22794-- 2009
Yamaha YFM 700 FWAD FGP H Grizzly Camouflage EPS 41 CV, 30 kw 1cil. AM09W 43PN Bastidores: AM09W henceforth27438-- 2010
Yamaha YFM 700 FWAD FGP H Grizzly Camouflage EPS 41 CV, 30 kw 1cil. AM38W 1HP7 Bastidores: AM38W-500101-- 2012
Yamaha YFM 700 FWAD FGP LE Grizzly Limited Edition EPS 41 CV, 30 kw 1cil. AM09W 43PF Bastidores: AM09W henceforth25951-- 2009
Yamaha YFM 700 FWAD FGP LE Grizzly Limited Edition EPS 41 CV, 30 kw 1cil. AM09W 43PU Bastidores: AM09W henceforth27945-- 2010
Yamaha YFM 700 FWAD FGP SE Grizzly Special Edition EPS 41 CV, 30 kw 1cil. AM09W 1DTD Bastidores: AM09W henceforth30766-- 2011
Yamaha YFM 700 FWAD FGP SE Grizzly Special Edition EPS 41 CV, 30 kw 1cil. AM09W 3B4C Bastidores: AM09W henceforth10972-- 2007
Yamaha YFM 700 FWAD FGP SE Grizzly Special Edition EPS 41 CV, 30 kw 1cil. AM09W 3B4P Bastidores: AM09W henceforth16461-- 2008
Yamaha YFM 700 FWAD FGP SE Grizzly Special Edition EPS 41 CV, 30 kw 1cil. AM09W 43PC Bastidores: AM09W henceforth22960-- 2009
Yamaha YFM 700 FWAD FGP SE Grizzly Special Edition EPS 41 CV, 30 kw 1cil. AM39W 1HPB Bastidores: AM39W-500101-- 2012
Yamaha YFM 700 FWAD FGP SE Grizzly Special Edition EPS 41 CV, 30 kw 1cil. AM39W 1HPV Bastidores: AM39W-500781-- 2013
Yamaha YFM 700 FWAD P Grizzly EPS 41 CV, 30 kw 1cil. AM56W 2BG3 Bastidores: AM56W-500101-- 2014
Yamaha YFM 700 FWAD PH Grizzly Camouflage EPS 41 CV, 30 kw 1cil. AM57W 2BGA Bastidores: AM57W-500101-- 2014
Yamaha YFM 700 FWAD PS Grizzly Special Edition EPS 41 CV, 30 kw 1cil. AM59W 2BGD Bastidores: AM59W-500101-- 2014
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM46W 1PE7 Bastidores: AM46W-500841-- 2014
Yamaha YFM 700 R SE Special Edition 48 CV, 35 kw 1cil. AM47W 1VSB Bastidores: AM47W-500781-- 2014
Yamaha YFM 700 R SE Special Edition 48 CV, 35 kw 1cil. AM71W 1VSF Bastidores: AM71W-500101-- 2014
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B52 Bastidores: 3GG-270602-- 2005
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B55 Bastidores: 3GG-278192-- 2006
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FK7 Bastidores: 3GG-176268-- 2000
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FKC Bastidores: 3GG-197900-- 2001
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FKG Bastidores: 3GG-219967-- 2002
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FKL Bastidores: 3GG-235833-- 2003
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FKS Bastidores: 3GG-253821-- 2004
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FKX Bastidores: 3GG-267798-- 2005
Yamaha YFZ 450 39 CV, 29 kw 1cil. AJ11W 5TG9 Bastidores: AJ11W henceforth06754-- 2005
