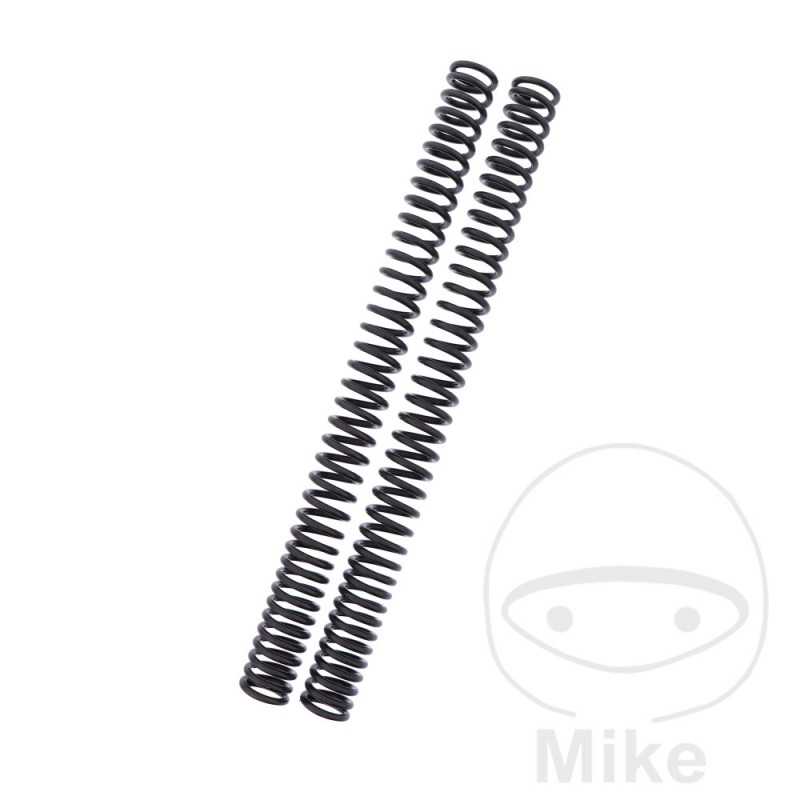

YSS SUSPENSION Progressive fork spring 743.07.77

YSS Progressive Wire fork springs with a firmer design than stock.

YSS fork springs are made of high quality silicon spring steel. This allows the thickness of the wire to be reduced, which makes the spring more active and thinner, but at the same time effectively prevents twisting of the spring.

To minimize noise and improve oil flow in the fork, the springs are fully polished and ground on the top and bottom.

The scope of delivery includes 2 springs for a complete conversion of the fork.
SPRING TYPE: PROGRESSIVE
LENGTH: 430MM
DIAMETER 1: 35MM
HARDNESS 1: 9.5 N/MM
HARDNESS 2: 9 N/MM
LEFT AIR CHAMBER: 160 MM
RIGHT AIR CHAMBER: 160 MM
RECOMMENDED VISCOSITY: 10W


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha TDM 850 H 78 CV, 57 kw 2cil. 3VD 3VD1 Bastidores: 3VD henceforth00101-3VD henceforth18000 1991
Yamaha TDM 850 H 78 CV, 57 kw 2cil. 3VD 3VD4 Bastidores: 3VD henceforth22101-3VD henceforth40000 1992
Yamaha TDM 850 H 78 CV, 57 kw 2cil. 3VD 3VD5 Bastidores: 3VD henceforth40401-- 1993
Yamaha TDM 850 H 78 CV, 57 kw 2cil. 3VD 3VD7 Bastidores: 3VD henceforth60301-3VD henceforth76999 1994
Yamaha TDM 850 H 78 CV, 57 kw 2cil. 3VD 3VD9 Bastidores: 3VD henceforth79101-3VD henceforth96099 1995-1996
Yamaha TDM 850 N 50 CV, 37 kw 2cil. 4CM 4CM1 Bastidores: 4CM henceforth00101-4CM henceforth02000 1991
Yamaha TDM 850 N 50 CV, 37 kw 2cil. 4CM 4CM2 Bastidores: 4CM henceforth02101-4CM henceforth04000 1992
Yamaha TDM 850 N 50 CV, 37 kw 2cil. 4CM 4CM3 Bastidores: 4CM henceforth04101-- 1993
