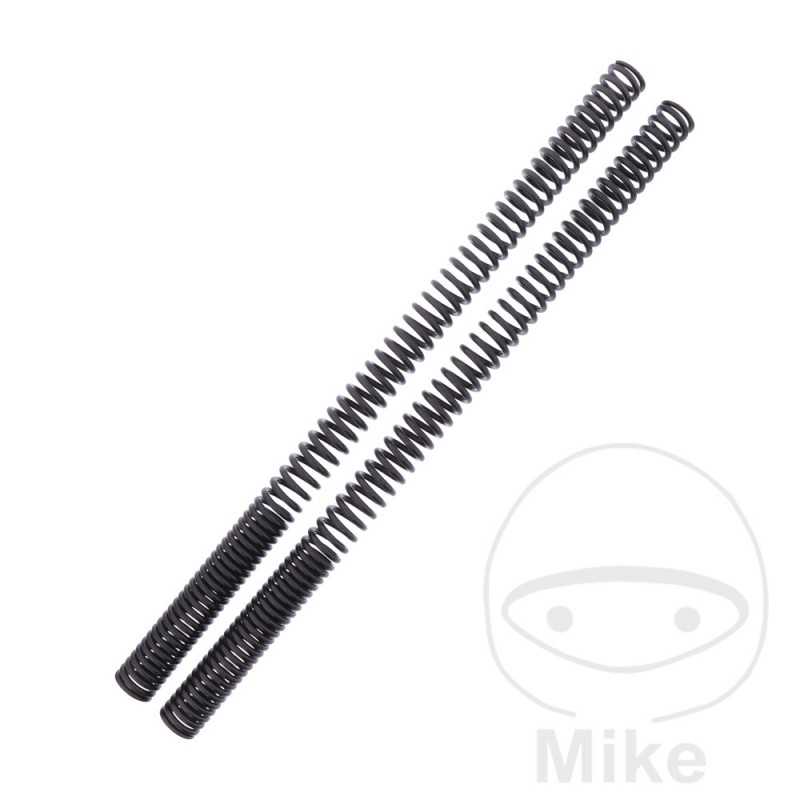

YSS SUSPENSION Progressive fork spring 743.07.58

YSS Progressive Wire fork springs with a firmer design than stock.

YSS fork springs are made of high quality silicon spring steel. This allows the thickness of the wire to be reduced, which makes the spring more active and thinner, but at the same time effectively prevents twisting of the spring.

To minimize noise and improve oil flow in the fork, the springs are fully polished and ground on the top and bottom.

The scope of delivery includes 2 springs for a complete conversion of the fork.
SPRING TYPE: PROGRESSIVE
LENGTH: 615MM
DIAMETER 1: 35MM
HARDNESS 1: 4.5 N/MM
HARDNESS 2: 7.5 N/MM
LEFT AIR CHAMBER: 180 MM
RIGHT AIR CHAMBER: 180 MM
RECOMMENDED VISCOSITY: 10W


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda XL 600 V Transalp 27 CV, 20 kw 2cil. PD06 H Bastidores: PD06-3000002-PD06-3000101 1987
Honda XL 600 V Transalp 27 CV, 20 kw 2cil. PD06 K Bastidores: PD06-3200001-PD06-3200500 1989
Honda XL 600 V Transalp 27 CV, 20 kw 2cil. PD06 M Bastidores: PD06-3400001-PD06-3400950 1991
Honda XL 600 V Transalp 27 CV, 20 kw 2cil. PD06 N Bastidores: PD06-3500001-PD06-3501067 1992
Honda XL 600 V Transalp 27 CV, 20 kw 2cil. PD06 P Bastidores: PD06-3600001-PD06-3600700 1993
Honda XL 600 V Transalp 34 CV, 25 kw 2cil. PD06 R Bastidores: PD06-6000001-PD06-6001425 1994-1995
Honda XL 600 V Transalp 34 CV, 25 kw 2cil. PD06B T Bastidores: PD06B-TM000001-- 1996
Honda XL 600 V Transalp 34 CV, 25 kw 2cil. PD10B V Bastidores: ZDC PD10B henceforthVF000001-- 1997
Honda XL 600 V Transalp 34 CV, 25 kw 2cil. PD10B W Bastidores: ZDC PD10B henceforthWF100001-- 1998
Honda XL 600 V Transalp 34 CV, 25 kw 2cil. PD10B X Bastidores: ZDC PD10B henceforthXF150001-- 1999-2000
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD06 H Bastidores: PD06-5000033-PD06-5011960 1987
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD06 K Bastidores: PD06-5200008-PD06-5207274 1989
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD06 L Bastidores: PD06-5300005-- 1990
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD06 M Bastidores: PD06-5401105-PD06-5407243 1991
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD06 N Bastidores: PD06-5501154-PD06-5508137 1992
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD06 P Bastidores: PD06-5600393-PD06-5607924 1993
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD06 R Bastidores: PD06-5700013-PD06-5712658 1994-1995
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD06A T Bastidores: PD06A-TM000001-- 1996
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD10A V Bastidores: ZDC PD10A henceforthVF000001-- 1997
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD10A W Bastidores: ZDC PD10A henceforthWF100001-- 1998
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD10A X Bastidores: ZDC PD10A henceforthXF150001-- 1999-2000
Honda XL 600 V Transalp piñón engranaje fino 27 CV, 20 kw 2cil. PD06 J Bastidores: PD06-3100001-PD06-3100200 1988
Honda XL 600 V Transalp piñón engranaje fino 50 CV, 37 kw 2cil. PD06 J Bastidores: PD06-5103368-PD06-5106124 1988
Honda XL 600 V Transalp piñón engranaje grueso 27 CV, 20 kw 2cil. PD06 J Bastidores: PD06-3100001-PD06-3100200 1988
Honda XL 600 V Transalp piñón engranaje grueso 50 CV, 37 kw 2cil. PD06 J Bastidores: PD06-5103368-PD06-5106124 1988
