YSS SUSPENSION Progressive fork spring 743.07.17

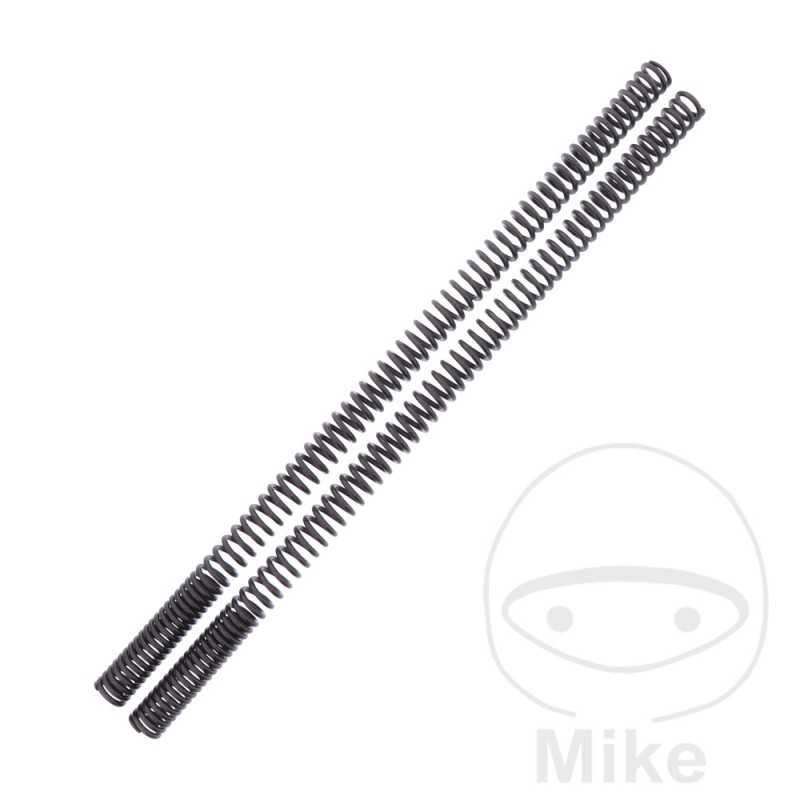

YSS Progressive Wire fork springs with a firmer design than stock.

YSS fork springs are made of high quality silicon spring steel. This allows the thickness of the wire to be reduced, which makes the spring more active and thinner, but at the same time effectively prevents twisting of the spring.

To minimize noise and improve oil flow in the fork, the springs are fully polished and ground on the top and bottom.

2 springs are included for a complete fork conversion.
SPRING TYPE: PROGRESSIVE
LENGTH: 565MM
DIAMETER 1: 25.5MM
HARDNESS 1: 3.8 N/MM
HARDNESS 2: 5.2 N/MM
LEFT AIR CHAMBER: 180 MM
RIGHT AIR CHAMBER: 180 MM
RECOMMENDED VISCOSITY: 10W


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda XL 500 S 27 CV, 20 kw 1cil. PD01 A Bastidores: PD01-3100003-PD01-3102202 1980
Honda XL 500 S 27 CV, 20 kw 1cil. PD01 B Bastidores: PD01-3200004-PD01-3205349 1981-1982
Honda XL 500 S 27 CV, 20 kw 1cil. PD01 Z Bastidores: PD01-3000006-PD01-3003911 1979
Honda XL 500 S 34 CV, 25 kw 1cil. PD01 A Bastidores: PD01-5100001-PD01-5199999 1980
Honda XL 500 S 34 CV, 25 kw 1cil. PD01 Z Bastidores: PD01-5000001-PD01-5099999 1979
Honda XL 500 S 36,5 CV, 27 kw 1cil. PD01 B Bastidores: PD01-5200004-PD01-5299999 1981-1982
